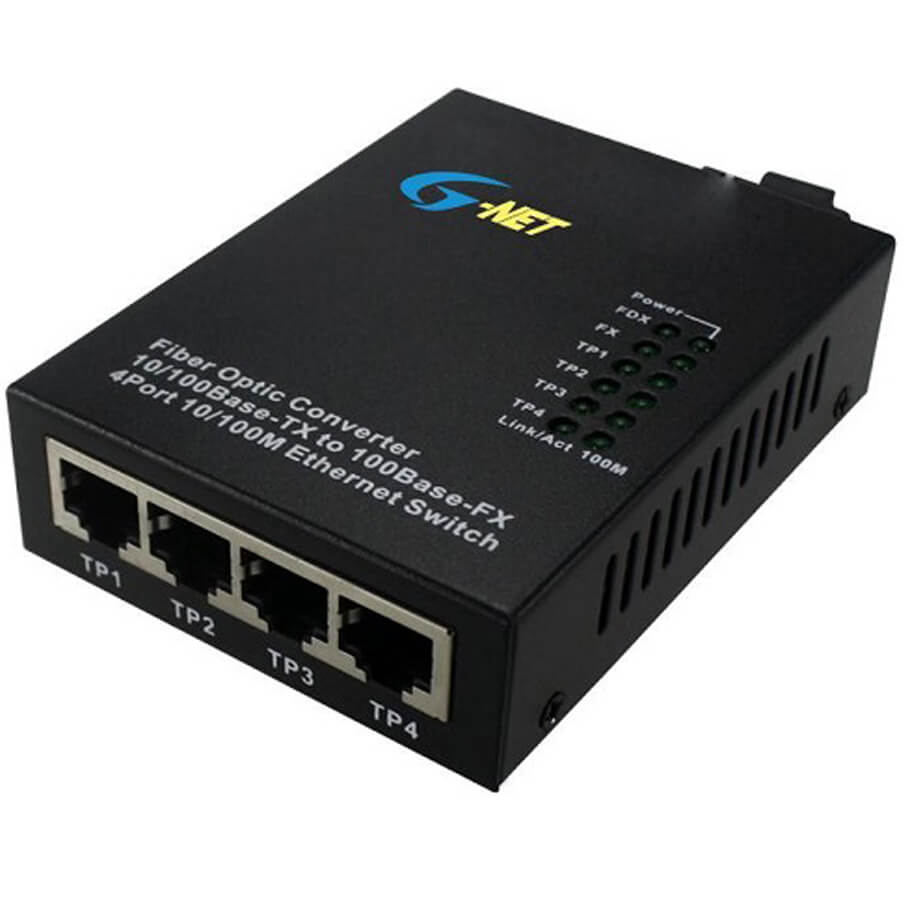

4-port 10/100Base-TX Ethernet Switch G-NET G-UES-1FX4TX-SC20
- 4 x 10/100Base-TX + 1x100Base-FX, dual fiber, 20km, SC.
- Support 1x100Base-FX SC Fiber Port and 4x10/100Base-TX Auto-Negotiation RJ45 ports.
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x standard.
- Support store-and-forward forwading mode.
- Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard.
- Supports 10/100M full duplex and half duplex.
- Supports auto MDI/MDI-X, obtains the fastest possible connection.
- Supports MAC address auto learning and auto aging.
- LED indicators display the working status, supporting simple trouble shooting.
- Plug and play, no configuration required.
- Desktop, easy to install and use.
- Fanless design, natural cooling.
- External Power Supply (Built-in power aslo avaliable)
Đặc tính kỹ thuật
| Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3x flow control |
| Switch Properties | Switching Capacity: 1Gbps MAC Address Table: 1K Packet Buffer Size: 1M Switching mode: Store and Forward |
| Network Medium | 10BASE-T: Cat3 ,4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 UTP or better (≤100 meters) |
| Flow Control | Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard |
| Fiber Port | Single mode, dual fiber, SC connector |
| Ethernet Port | 4x10/100Mbps self-adaption RJ45 Ports, Full/Half duplex mode, MDI/MDI-X auto negotiation |
| Transmission Distance | 20km |
| Power | External Power Adapter Input Voltage :AC 100-240V, 50/60Hz Output Voltage: DC 5V 2A |
| Indicator | PWR, Link/Act |
| Mechanical | Case: Metal Cooling way: Natural cooling, fanless design Installation: Desktop Dimension: 97 x 70 x 26 mm (L x W x H) Weight: 0.25Kg |
| Environmental | Working Temperature: 0°C to 50°C Storage Temperature: -40°C to 70°C Working Humidity: 10%~90% (non-condensing) Storage Humidity: 5% ~ 90%(non-condensing) |
| MTBF | 100,000 hours |
- Bảo hành: 24 tháng.
