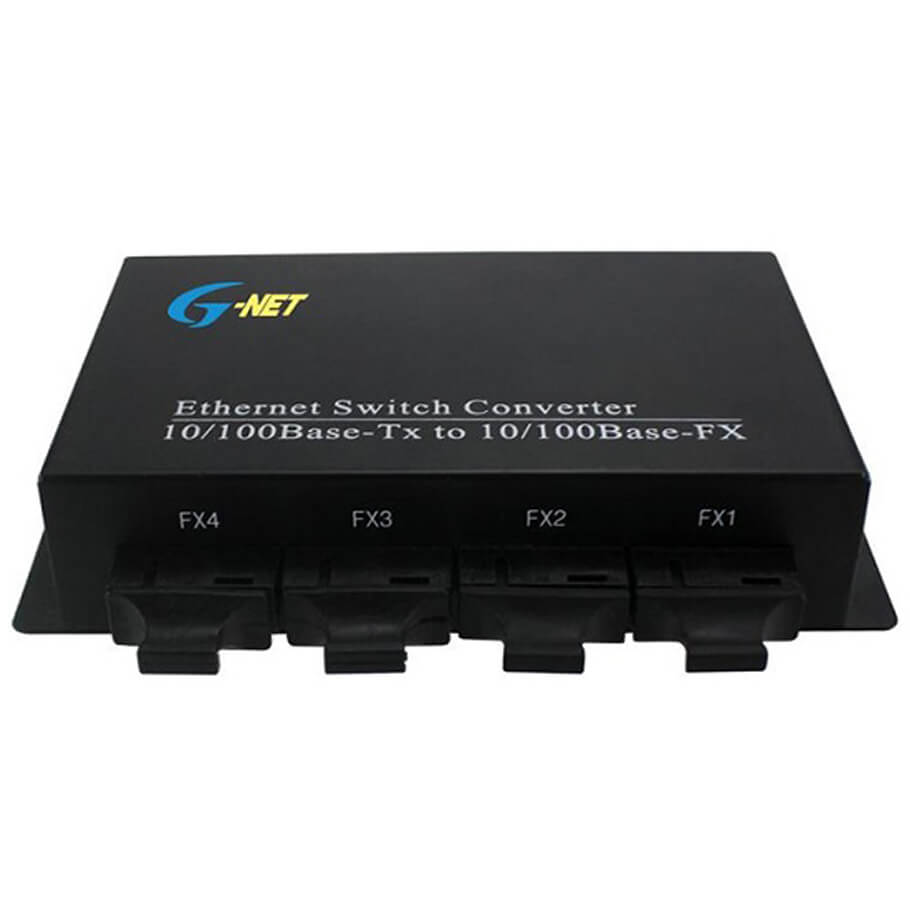

4-port 10/100Base-TX Ethernet Switch G-NET G-UES-4FX4TX-SC20A/B
- 4 x 10/100Base-TX + 4 x 100Base-FX, single fiber, 20km, SC.
- Support 4 x 100Base-FX Fiber Ports and 4 x 10/100Base-TX Auto-Negotiation RJ45 ports.
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x standard.
- Support store-and-forward forwading mode.
- Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard.
- Supports 10/100M full duplex and half duplex.
- Supports auto MDI/MDI-X, obtains the fastest possible connection.
- Supports MAC address auto learning and auto aging.
- LED indicators display the working status, supporting simple trouble shooting.
- All ports support wire speed switch.
- Plug and play, no configuration required.
- Desktop or Wall Mounted, easy to install and use.
- Fanless design, natural cooling.
- External Power Supply.
Đặc tính kỹ thuật
| Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3x flow control |
| Switch Properties | Switching Capacity: 1.6Gbps MAC Address Table: 1K Packet Buffer Size: 488K Switching mode: Store and Forward |
| Network Medium | 10BASE-T: Cat3, 4, 5 UTP (≤ 100 meters) 100BASE-TX: Cat5 UTP or better (≤ 100 meters) |
| Flow Control | Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard |
| Fiber Port | 4 x 100Base-FX Fiber ports, single fiber, SC |
| Ethernet Port | 4x10/100Mbps self-adaption RJ45 Ports, Full/Half duplex mode, MDI/MDI-X auto negotiation |
| Transmission Distance | 20km |
| Power | External Power Adapter Input Voltage: AC 100-240V, 50/60Hz Output Voltage: DC 5V 2A |
| Indicator | PWR, Link/Act |
| Mechanical | Case: Metal Cooling way: Natural cooling,fanless design Installation: Desktop or Wall Mounted Dimension: 127 x 80 x 30 mm (L x W x H) Weight: 0.3kg |
| Environmental | Working Temperature: -30°C to 70°C Storage Temperature: -40°C to 80°C Working Humidity: 10%~90% (non-condensing) Storage Humidity: 5% ~ 90%(non-condensing) |
| MTBF | 100,000 hours |
