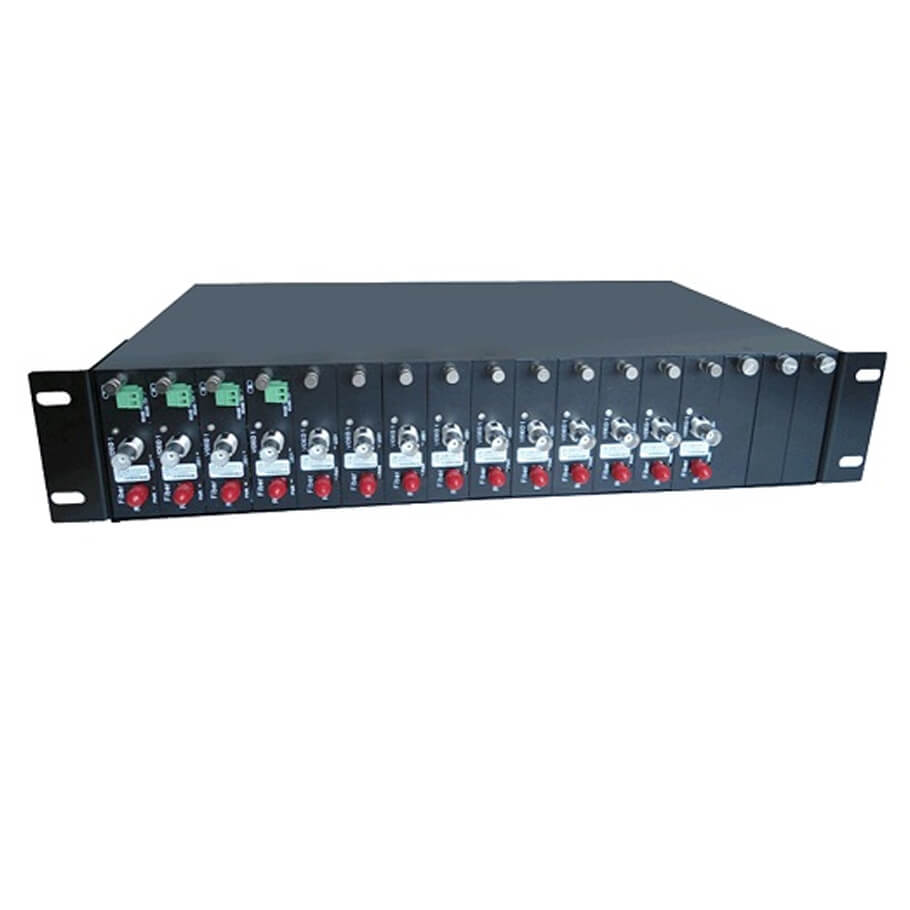

2U Rackmount Chassis 16 slot for Video Converter Card BT-2U-D220
- 14/16 slot, Dual Power AC110V-220V.
Features
- Main and vice power equipment ensure system work smoothly.
- Function cards supports hot-plugging and each card realizes its corresponding function independently.
- Double power panel slot supports two power supply units backup for each other.
- It would enhance the reliability of the rack.
- Supports AC110V/220V switch mode power supply (SMPS) design.
- Power supply and other parameter state indicator LED can monitor the operation condition of system.
- With stable performance, large capacity of power supply, and easy for management and maintenance.
- All of the modules installed in the chassis are hot-swap, which makes it unnecessary to power-down the chassis when replacing modules.
- Support telecommunication operation requirement completely.
Technology Specification
- Structure: 2U Rack.
- Ripple wave: ≤20mv.
- Power input: AC85~265V 50/60HZ.
- Power output: DC5V 16A.
- Power adapter: single power supply or dual power supply.
- Power: 95W.
- Operating Temperature: -10~55℃.
- Operating Humidity: 5%~95%.
- Storage Temperature: -40~70℃.
- Storage Humidity: 5%~95% no condensing.
- Dimension: 490mm x 230mm x 90mm for Rack.
