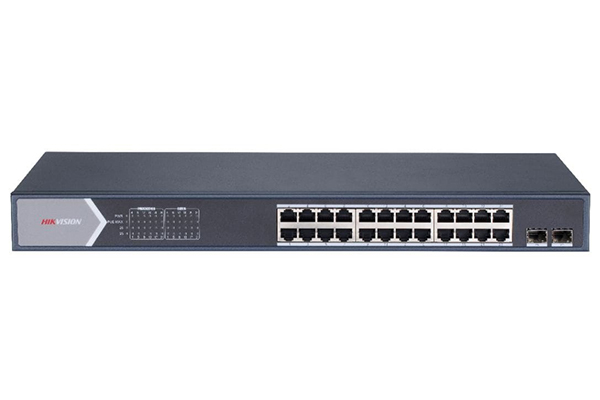

24-Port Gigabit Smart PoE Switch HIKVISION DS-3E1526P-SI
- 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
Specification
| Model | DS-3E1326P-SI |
| Network Parameters | |
| Port Number | 24 × 100 Mbps PoE RJ45 port, and 2 × gigabit combo |
| Port Type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| High Priority Ports | Ports 1 to 8 |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default) Extend mode |
| MAC Address Table | 16K |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.5472 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 370 W |
| Software Function | |
| Device Maintenance | Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync |
| Port Configuration | Port rate configuration, slow control, and ports enabling |
| Long Range | Up to 300 m transmission |
| PoE Configuration | PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do not respond PoE enabling: Support |
| Port Rate-Limiting | Rate-limiting for ingress and egress ports |
| Storm Control | Storm control of unknown unicast, multicast and broadcast |
| Port Mirroring | Support |
| Link Aggregation | Static link aggregation supported for G1 and G2 port |
| Port Isolation | Ports in isolation group cannot communicate with each other |
| QoS | WRR and SP scheduling and port priority |
| VLAN | 4094 VLANs |
| STP | STP and RSTP protocols |
| SNMP | SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces |
| LLDP | LLDP protocol supported for port configuration, global configuration and neighbour discovery |
| General | |
| Power Supply | 100VAC~240 VAC, 50/60 Hz, Max. 6.5 A |
| Max. Power Consumption | 400W |
| Power Consumption in Idle | 5W |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
- Bảo hành: 24 tháng.
