24-port Gigabit Ethernet Switch Cisco C9300-24T-E

Trang Chủ >> Thiết bị mạng >> SWITCH CISCO >> 24-port Gigabit Ethernet Switch Cisco C9300-24T-E
Mã số:04125981

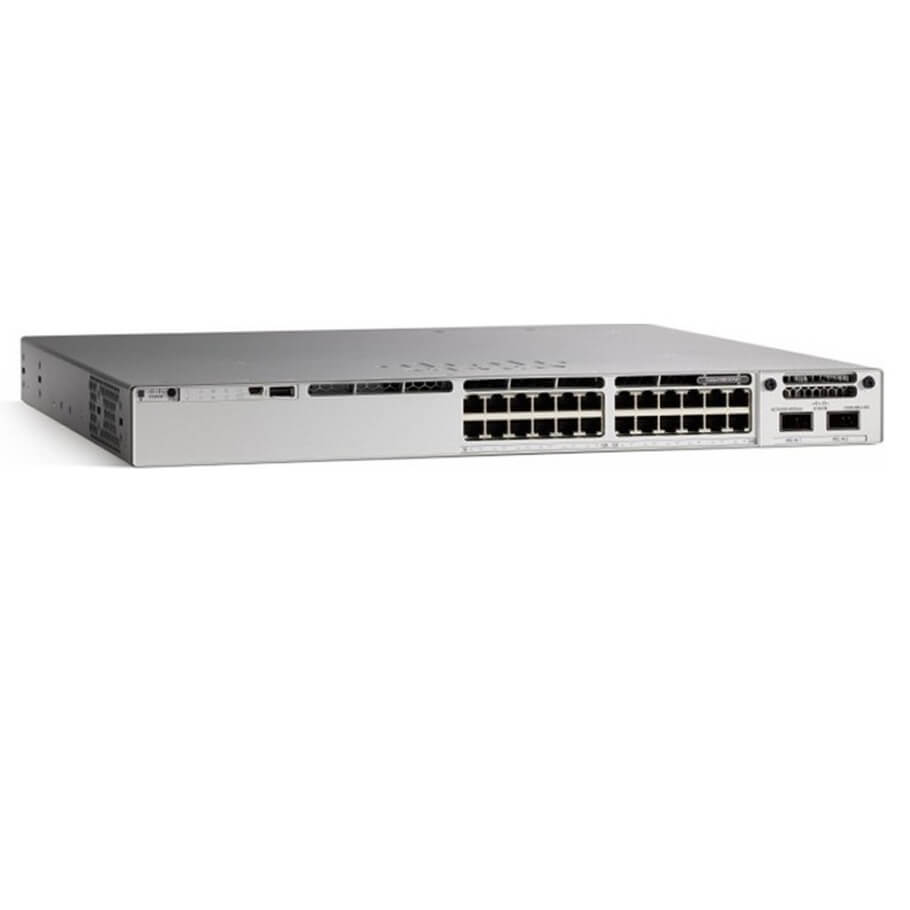

24-port Gigabit Ethernet Switch Cisco C9300-24T-E

24-port Gigabit Ethernet Switch Cisco C9300-24T-E

- The Cisco Catalyst 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24T-E is 24-port data only, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

- Catalyst 9300 24-port data only, Network Essentials.

- Total 10/100/1000 or Multigigabit copper ports: 24.

- Software: Network Essentials.

- Default AC power supply: 350W AC.

- Default power supply: PWR-C1-350WAC.

- Switching capacity: 208 Gbps on 24-port Gigabit Ethernet model.

- Stacking bandwidth: 480 Gbps.

- Dimensions (H x W x D): 1.73 x 17.5 x 17.5 inches.

- Weight: 16.33 Pounds.

Specification

Model C9300-24T-E
Product Description Catalyst 9300 24-port data only, Network Essentials
Total 10/100/1000 or Multigigabit copper ports 24
Default AC power supply 350W AC
Cisco StackWise-480 Yes
Cisco StackPower Yes
Default power supply PWR-C1-350WAC
Switching capacity 208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32,000
IPv6 routing entries  16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM  8 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 2000
Jumbo frames 9198 bytes
Total routed ports per 9300 Series stack 208
Wireless bandwidth per switch Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate  154.76 Mpps
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds
Mean time between failures (hours) 299,000

- Bảo hành: 12 tháng.

Giá: Vui lòng gọi (Đã bao gồm VAT)
