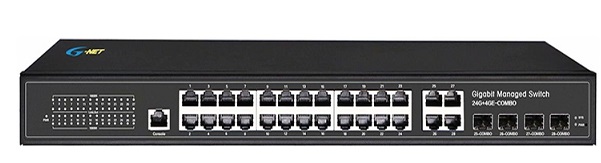

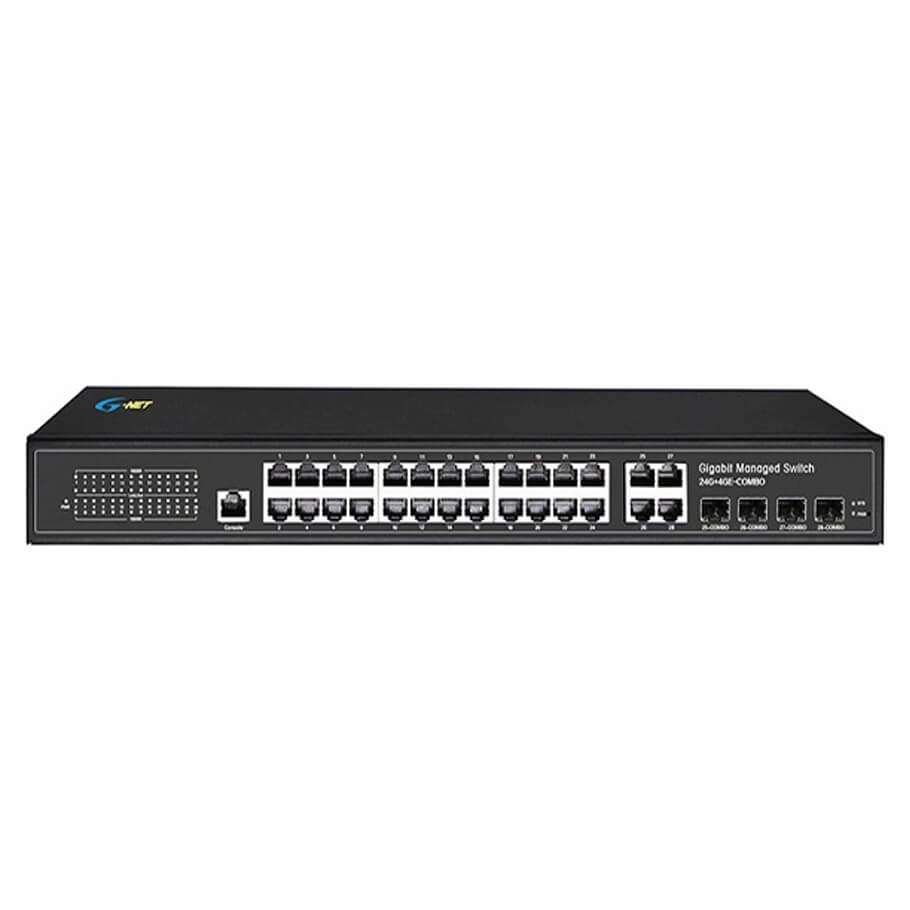

24-port Gigabit + 4-port Gigabit Combo Layer 2 Managed Switch G-NET G-MES-4GXC24GT-SFP
- G-MES-4GXC24GT-SFP is a layer 2 Gigabit Ethernet full management switch which is designed and developed solely for the purpose of building high-performance gigabit network requirements. It provides a comprehensive security protection system, perfect QoS strategy and rich VLAN function, management and maintenance are simple and can be applied to small and medium enterprises, core layer of community and school. It supports IPv4 and RSTP.
Đặc tính kỹ thuật
| Port | 24 x 10/100/1000Base-TX RJ45 + 4x10/100/1000Base-TX/4 x 1000Base-FX SFP Combo + 1 x Console port |
| LED Indicators | PWR, Link/Act. |
| Standard | IEEE 802.3x IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, EEE 802.1S |
| Performance | Switching Capacity: 56Gbps Packet forwarding rate: 40.32Mbps MAC Address Table: 8K Packet Buffer Size: 4.1M CUP: 500MHZ R AM: 128M Flash: 32M |
| Forwarding Mode | Store-and-Forward |
| Input voltage | 100V~240V AC, 50/60Hz |
| Network Media | 10BASE-TX: UTP category 5, 5e cable (≤150m) 100BASE-TX: UTP category 5, 5e cable (≤100m) 1000BASE-TX: UTP category 5, 5e cable (≤100m) Multi-mode: 0-2km(based on SFP choose) Single-mode: 0-20/40/60/80km (based on SFP choose) |
| Power Supply | AC110-240V, 50/60Hz Power consumption: ≤30W |
| Environmental | Operating temperature: 0°C～50°C Storage temperature: -40°C～70°C. Operating temperature: 10% to 90% RH (non-condensing) Storage Humidity: 5% to 95% RH (non-condensing) |
| Mechanical | Case: Metal Cooling way: Natural cooling,fanless design Installation: 1U Rack Mounted or Desktop Dimension: 440 x 200 x 45 mm (L x W x H) Weight: 2.5kg |
| Layer 2 Switching | |
| Switching capacity | 56Gbps |
| MAC address table | 8K, Supports MAC address auto learning and auto aging |
| Jumbo Frame | 9K |
| VLAN | 4K VLAN, port-based VLANs, 802.1Q VLAN |
| Traffic control | Half duplex based back pressure control Full duplex based on PAUSE frames |
| Spanning Tree | STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) PPS ring network protocol EAPS ring network protocol 802.1x argumentation agreement |
| Link Aggregation | Max 8 aggregation groups, each supports 8 ports Static aggregation and dynamic aggregation |
| Loop Guard | Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery |
| Port Feature | - Support many-to-one port mirroring; - Support port isolation: support downlink ports isolated from each other and communicate with-upstream port - Support port based input/output bandwidth management |
| IGMP Snooping | IGMPv1/2/3, MLDv1/2 Snooping GMRP protocol registration Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses |
| DHCP | DHCP Snoping |
| QoS | 802.1p port queue priority algorithm Cos/Tos, QoS sign WRR (Weighted Round Robin), Weighted priority rotation algorithm WRR, SP, WFQ, 3 priority scheduling models |
| Storm suppression | Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type Storm suppression based on bandwidth tuning and storm filtering |
| Security | User port+IP address+MAC ACL based on IP and MAC Security properties of port based MAC address quantities |
| Management | |
| Console | Support Configuration via the console port |
| CLI | Support CLI (Commend Line Interface) configuration mode |
| WEB | Support WEB management system |
| SNMP | Support System configuration with SNMP v1/v2/v3, SSH (V1/V2) |
| Telnet | Support Local/remote configuration via Telnet |
| RMON | Support |
| System Maintenance | |
| System Log | Support |
| Upgrade Firmware | Support Upgrade Firmware by package upload |
| Factory Reset | Support factory reset by WEB |
