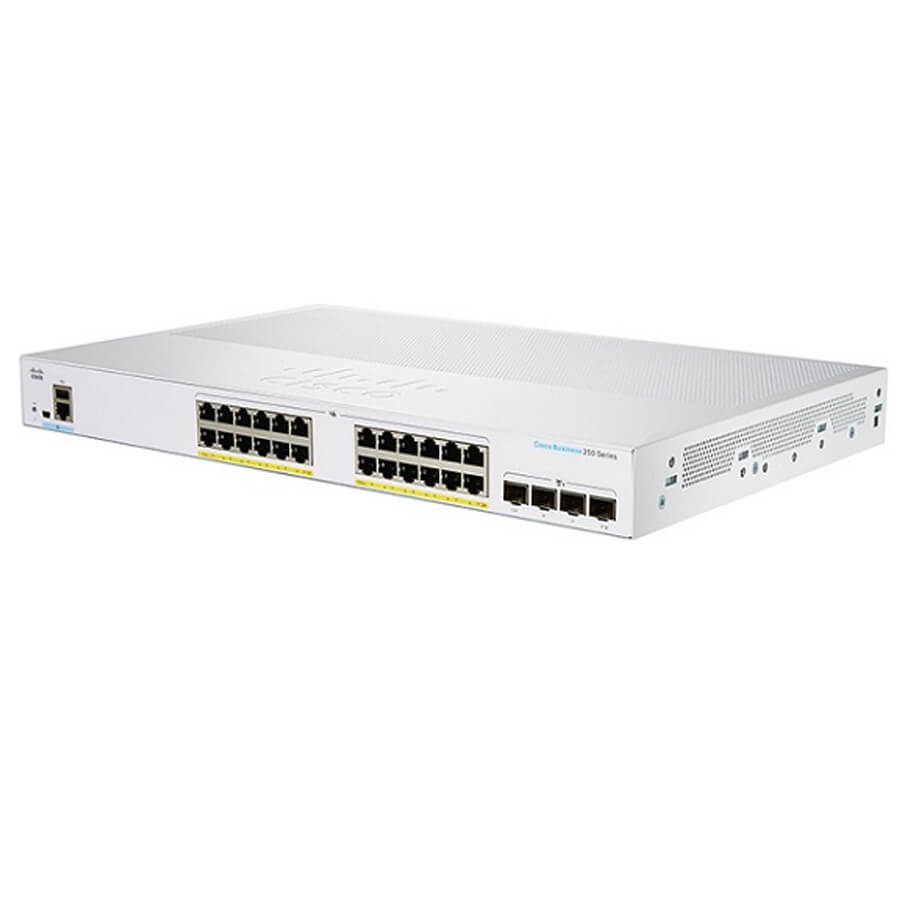

24-Port Gigabit Ethernet + 4-Port 10G SFP+ PoE Smart Switch CBS250-24P-4X-EU
- Support 24 10/100/1000 PoE+ ports with 195W power budget and 4 10 Gigabit SFP+.
- Switching Capacity: 128.0Gbps.
- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
- MAC table: 8K addresses.
- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
- Flash: 256 MB.
- CPU: 800MHz ARM.
- DRAM: 512MB.
- Dimensions (W x D x H): 445 x 299 x 44 mm.
- Weight: 3.68kg.
Đặc tính kỹ thuật
| Model | CBS250-24P-4X-EU |
| Performance | |
| Capacity in millions of packets per second (64-byte packets) | 95.23 mpps |
| Switching capacity | 128.0Gbps |
| General | |
| Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| MAC table | 8K addresses |
| Hardware | |
| Total system ports | 24 Gigabit Ethernet + 4 10 Gigabit Ethernet |
| RJ-45 ports | 24 Gigabit Ethernet |
| Combo ports (RJ-45 + SFP) | 4 SFP+ |
| Number of ports that support PoE | 24 |
| Power dedicated to PoE | 195W |
| Console port | Cisco Standard mini USB Type-B/RJ45 console port |
| USB slot | Cisco Standard mini USB Type-B/RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, PoE, Speed |
| Flash | 256 MB |
| CPU | 800 MHz ARM |
| DRAM | 512 MB |
| Packet buffer | 1.5 MB |
| Environmental | |
| Unit dimensions (W x D x H) | 445 x 299 x 44 mm |
| Unit weight | 3.68 kg |
| Power | 100 to 240V, 50 to 60 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 23° to 122°F (-5° to 50°C) |
| Storage temperature | -13° to 158°F (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Power consumption (worst case) | |
| System power consumption | 110V=35.72W 220V=34.53W |
| Power consumption (with PoE) | 110V=240.4W 220V=236.9W |
| Heat dissipation (BTU/hr) | 822.67 |
| Acoustic noise and Mean Time Between Failures (MTBF) | |
| Fan (number) | Fanless |
| MTBF at 25°C (hours) | 698,220 |
- Bảo hành: 12 tháng.
