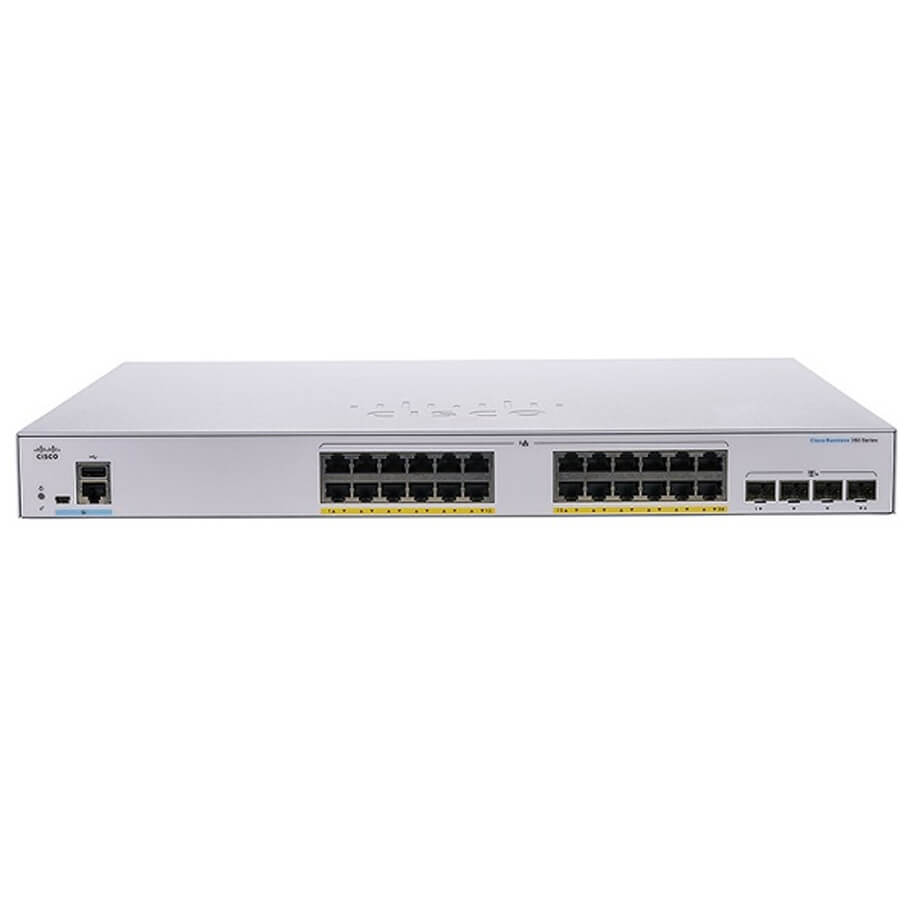

24-Port Gigabit Ethernet + 4-Port 10G SFP+ PoE Managed Switch CISCO CBS350-24FP-4X-EU
- Support 24 10/100/1000 PoE+ ports with 370W power budget and 4 10Gigabit SFP+.
- Switching Capacity: 128Gbps.
- Stacking: Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover.
- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
- MAC table: 16K addresses.
- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
- Flash: 256 MB.
- CPU: 800MHz ARM.
- DRAM: 512MB.
- Dimensions (W x D x H): 445 x 345 x 44 mm.
- Weight: 4.6kg.
Đặc tính kỹ thuật
| Model | CBS350-24FP-4X-EU |
| Performance | |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 95.23 mpps |
| Switching capacity | 128Gbps |
| Layer 2 switching | Spanning Tree Protocol Port grouping/link aggregation - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN -Support for up to 4,094 VLANs simultaneously -Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN -Management VLAN -Private VLAN with promiscuous, isolated, and community port -Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks -Guest VLAN, unauthenticated VLAN -Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication -CPE VLAN Voice VLAN Multicast TV VLAN VLAN Translation Q-in-Q Selective Q-in-Q Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Unidirectional Link Detection (UDLD) Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP Querier Head-of-Line (HOL) blocking Loopback DetectioN |
| Layer 3 | IPv4 routing -Wirespeed routing of IPv4 packets -Up to 990 static routes and up to 128 IP interfaces IPv6 routing Layer 3 Interface -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface Classless Interdomain Routing (CIDR) Policy-Based Routing (PBR) DHCP Server DHCP relay at Layer 3 User Datagram Protocol (UDP) relay |
| Stacking | |
| Hardware stacking | Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover |
| High availability | Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack |
| Plug-and-play stacking configuration/management | Active/standby for resilient stack control Autonumbering Hot swap of units in stack Ring and chain stacking options, auto stacking port speed, flexible stacking port options |
| High-speed stack interconnects | Cost-effective high-speed 10G fiber interfaces |
| General | |
| Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| MAC table | 16K addresses |
| Hardware | |
| Total System Ports | 24 x Gigabit Ethernet + 4 x 10G |
| RJ-45 Ports | 24 x Gigabit Ethernet |
| Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 4 x SFP+ |
| Number of Ports That Support PoE | 24 |
| Power Dedicated to PoE | 370W |
| Console port | Cisco standard mini USB Type-B/RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, PoE, Speed |
| Flash | 256 MB |
| CPU | 800 MHz ARM |
| DRAM | 512 MB |
| Packet buffer | 1.5 MB |
| Power consumption (worst case) | |
| System Power Consumption | 110V=47.14W 220V=47.01W |
| Power Consumption (with PoE) | 110V=451.8W 220V=437.4W |
| Heat Dissipation (BTU/hr) | 1,544.34 |
| Environmental | |
| Unit dimensions (W x D x H) | 445 x 345 x 44 mm |
| Unit weight | 4.6 kg |
| Power | 100-240V 50-60 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | -5° to 50°C |
| Storage temperature | -25° to 70°C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failure (MTBF) | |
| FAN (Number) | 1 |
| Acoustic Noise | 25°C: 34.8 dBA |
| MTBF at 25°C (hours) | 698,220 |
- Bảo hành: 12 tháng.
