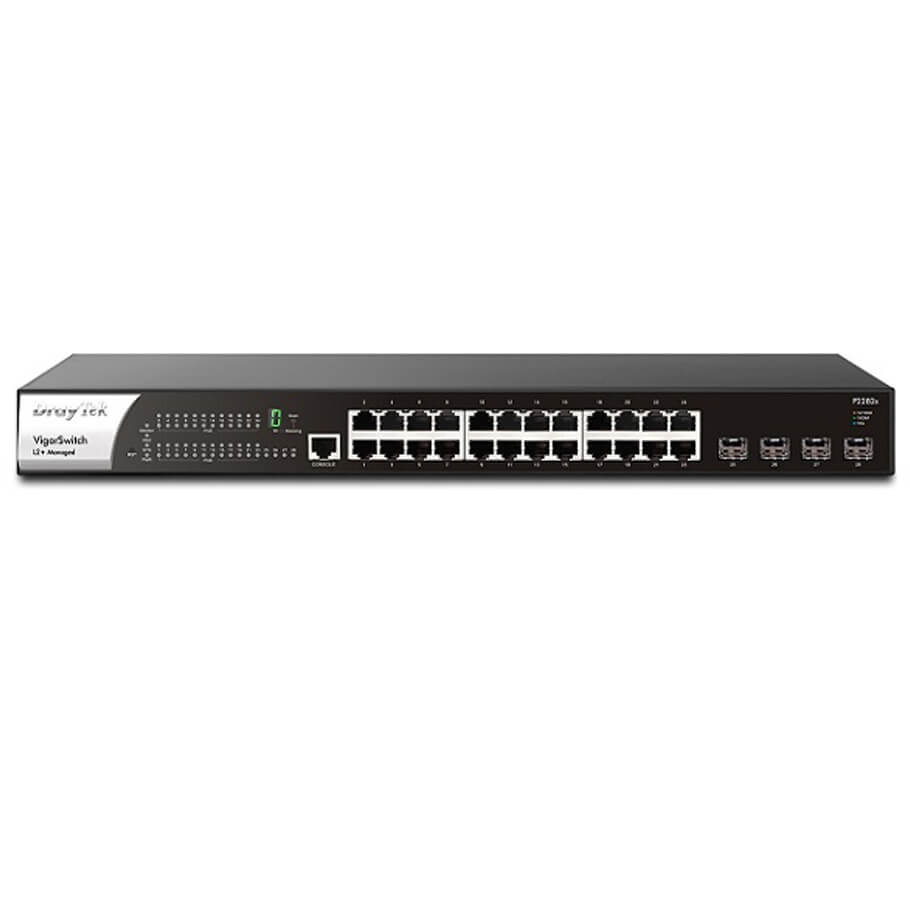

24-Port GE PoE L2+ Switch DrayTek VigorSwitch P2282x
- Hỗ trợ 24 cổng LAN Gigabit PoE 802.3af/at.
- Hỗ trợ 4 cổng Gigabit/10Gigabit SFP+ slot, 1 cổng console.
- Hỗ trợ 1 Factory Reset Button.
- Quy định mức độ ưu tiên cho từng port.
- Quy định mức công suất tối đa cho từng port.
- Theo dõi mức tiêu thụ của từng port (W/A).
- Kiểm tra trạng thái thiết bị đầu cuối (ping detect) để reset lại nguồn của port nếu thiết bị đó bị treo.
- Lập lịch cung cấp nguồn cho từng port (tiết kiệm điện năng).
- Hỗ trợ chia VLAN với chuẩn 802.1q, Port based VLAN, MAC based VLAN, Protocol-based VLAN, VoIP VLAN, Surveillance VLAN, VLAN Management Q-in-Q basic, Port Isolation.
- Tính năng LACP giúp gộp băng thông đường truyền (8 group, mỗi group tối đa 8 port).
- Tính năng Spanning Tree, Loop Protection giúp tăng cường độ ổn định hệ thống.
- IGMP snooping, QoS tối ưu cho dịch vụ âm thanh và video.
- DHCP snooping chống giả mạo DHCP server.
- ACL, Port security, IP Source Guard, ARP Inspection, DoS, Jumbo Frame.
- Tính năng Layer 3 như: DHCP server/Static Route/VLAN route.
- Cấu hình bằng giao diện web và dòng lệnh.
- Tổng công suất nguồn cấp PoE: 400W
- guồn vào: AC100-240V.
- Nguồn dự phòng: DC +12V@5A & DC +54V@7.4A.
- Quản lý tập trung bằng SWM tích hợp trên Router DrayTek/phần mềm VigorConnect (miễn phí), hoặc phần mềm VigorACS2 (phí hằng năm) hoặc cloud DrayTek Free.
Thông số kỹ thuật
| Interface | |
| LAN Port | 24x 10/100/1000Mbps Ethernet, RJ-45 4x 1000Mbps/10Gbps SFP+ slot |
| Console Port | 1x RJ-45 |
| Button | 1x Factory Reset |
| Performance | |
| Buffer Size | 12Mbit |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps (64 bytes) |
| MAC Address Table | 16k |
| Jumbo Frame | Up to 12 KB |
| L3 Routing Table | Yes |
| PoE (P2282x) | |
| PoE Capable Ports | 2 x PoE/PoE+ (802.3af/at), up to 30W per port, Type mode A |
| PoE Power Budget | 400 watts |
| Scheduled On/Off | Yes |
| Layer 3 Features | |
| Static Route | Yes |
| VLAN Route | Yes |
| DHCP Server | Yes |
| Standard Compliance | |
| Ethernet Standards | 802.3af PoE/802.3at PoE+ (P2282x) 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3ae 10GBase-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
| Spanning Tree | |
| STP | Yes |
| RSTP | Yes |
| MSTP | Yes |
| VLAN | |
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based Protocol-Based Management VLAN Voice VLAN Surveillance VLAN |
| GVRP | Yes |
| QinQ (Basic) | Yes |
| ONVIF Surveillance | |
| Discovery | Yes |
| Surveillance Topology | Yes |
| Real-Time Video Streaming | Yes |
| ONVIF Device Maintenance | Device Info, Network Settings, Time Settings, Reboot, Reset to Factory Default |
| QoS | |
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limiting | Yes |
| Multicast | |
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | Yes |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Group Throttling / Filtering | Yes |
| MVR (Multicast VLAN Registration) | Yes |
| Security | |
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | Yes |
| IP Source Guard | Yes |
| Traffic Control | DoS Defense, Storm Control |
| Dynamic ARP Inspection (DAI) | Yes |
| DHCP Snooping | Yes |
| IP Conflict Prevention | Yes |
| Loop Protection | Yes |
| Link Aggregation | |
| Max. Number of Group | Yes |
| Max. Number of Member in Each Group | Yes |
| Type | Static, LACP |
| Traffic Load Balancing | Yes |
| AAA | |
| Authentication Server | RADIUS, TACACS+ |
| Port Authorization | Yes |
| Management Account | Yes |
| RADIUS Attribute Assignment | User Privilege, VLAN |
| Accounting | Yes |
| Multiple Serve | Yes |
| Management | |
| Local Service | HTTP / HTTPS / Telnet / SSH v2 |
| Config Backup/Restore | Yes |
| Dual Image | Yes |
| 2-Level Administration Privilege | Yes |
| Access Control | Access List |
| OpenVPN Client | Yes |
| sFlow | Yes |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP | Yes |
| LLDP | Yes |
| LLDP-MED | Yes |
| Mail Alert | Port Status / Speed System Restart IP Conflict Hardware Monitor Device Check ONVIF IP Cam Snapshot |
| VigorRouter Management (SWM) | Yes |
| VigorConnect Management | V2.9.1 (Since f/w) |
| VigorACS Management | V2.9.1 (Since f/w) |
| Physical | |
| Backup Power Input | DC +12V @ 5A & DC +54V @ 7.4A (P2282x) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
- Bảo hành: 24 tháng.
