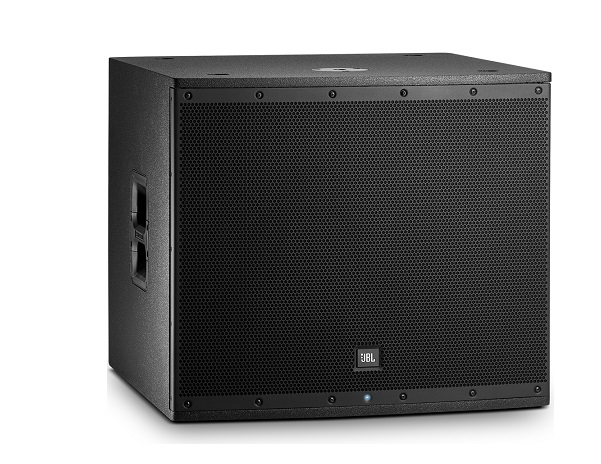

18-inch Self-Powered Subwoofer JBL EON618S
- The EON618S is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver class leading performance in a variety of applications supporting EON600 and other full range systems. A lightweight, highly useful enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.
Features
- JBL Premium Transducers.
- 1000W highly efficient Class-D amplification.
- Maximum SPL Output: 134dB.
- System Type: Self powered 18-inch Subwoofer.
- Frequency Range (-10dB): 31Hz - 150Hz.
- Frequency Response (- 3dB): 42.5Hz - 150Hz.
- Bluetooth Control:
+ 3 Parametric EQs + Hi & Lo Shelf;
+ Gain and Delay;
+ Save and Recall settings;
+ Polarity Inversion.
- JBL Engineered Crossover Presets: 80Hz/ 100Hz/ 120Hz/ EON.
- M20 Pole Cup.
- Rugged, stage-ready Duraflex enclosure.
Specifications
| Model | EON618S |
| System Type | Self powered 18-inch Subwoofer |
| Maximum SPL Output | 134 dB |
| Frequency Response (-10dB) | 31Hz –150Hz |
| Frequency Response (-3 dB) | 42.5Hz – 150Hz |
| System Power Rating | 1000W Peak, 500W Continuous |
| Input Impedance | 22k (balanced) |
| Line Input Gain | 0 to 36 dBu |
| Line | +14dBu |
| LED indicators | Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange) |
| Cooling | Passive |
| AC power input | 100-120VAC 50/60Hz; 230-240VAC 50/60Hz |
| AC Power Consumption (120V~) | 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max) |
| LF Driver | 1 x JBL 618H 457mm (18-inch) woofer with 2-inch voice coil |
| Crossover Frequency | Selectable; 80 Hz, 100 hz, or 120 Hz |
| Material | Duraflex coated wooden enclosure |
| Suspension/Mounting | M20 Threaded Pole Cup |
| Handles | 2 |
| Grille | Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing |
| Dimensions (H x W x D) | 582mm x 668mm x 645mm (22.9in x 26.3in x 25.4in) |
| Weight | 72 lbs (35.5 kg) |
| Shipping Weight | 91 lbs (41.2 kg) |
| Shipping Dimensions (L x W x H) | 803mm x 768mm x 631mm (31.6-inch x 30.2-inch x 25.1-inch) |
| Mic Inputs | 2 |
| Phantom Power | No |
| EQ | 3 Parametric EQs + Hi & Lo Shelf |
| Effects | DSP Presets |
| Inputs | 2 x Balanced XLR-1/4-inch combination inputs |
| Outputs | 2 x male XLR loop thru out |
| Enclosure | Duraflex coated plywood |
- Bảo hành: 12 tháng.
