16-Port PS/2, USB Combo KVM Switch D-Link KVM-450

Trang Chủ >> Thiết bị mạng >> Thiết bị mạng D-Link >> 16-Port PS/2, USB Combo KVM Switch D-Link KVM-450
Mã số:04050141

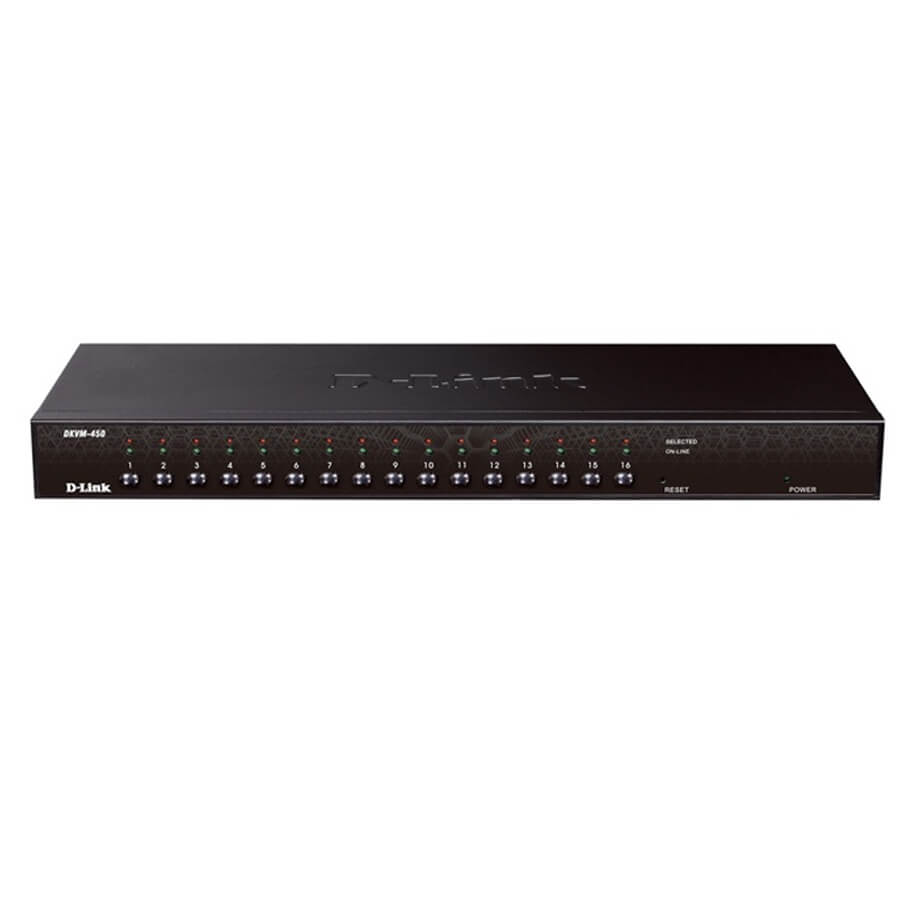

16-Port PS/2, USB Combo KVM Switch D-Link KVM-450

16-Port PS/2, USB Combo KVM Switch D-Link KVM-450

-       Độ phân giải video: 2048 x 1536.

-       Phương pháp lựa chọn: Switch Button, Hot-Keys (PS/2 Keyboard), On-Screen-Display (OSD).

-       16 cổng KVM kết nối máy tính + 4096 cascade chaining.

-       Kết nối máy tính: 16 x HDB-15 female.

-       Hỗ trợ PS/2 và USB platform servers.

-       Nguồn điện: 5V, 2A.

-       Hỗ trợ hệ điều hành: Windows 98SE/ ME/ 2000/ 2003/ 2008/ XP/ Vista/ 7, Linux, Mac OS 9/ OS X.

Features

1.     Connect your console keyboard/mouse via PS/2

2.     Connect computers via PS/2 and/or USB

3.     Support for Windows, Linux, Mac OS9/OSX, and Sun Microsystems, Operating Systems

4.     On-Screen-Display (OSD) & Cascade Chain functions

5.     Intuitive on-screen menus for quick and efficient navigation

6.     Supports daisy chaining with up to 3 cascade levels. Cascaded units do not require a special configuration.

7.     Emulates a PS/2 or USB keyboard on each PC allowing them to boot normally without a keyboard error.

8.     Supports hot-plugging: All devices connected to the KVM can be added or removed at any time without shutting down the KVM.

9.     Select a PC to switch to using one of 3 interfaces:

-       Front Panel Button

-       Hot-Keys on a PS/2 keyboard

-       OSD Menu (On Screen Display)

10.             Supports Auto-Scan function to switch video inputs automatically among computers sequentially at preset intervals via OSD menu

11.             Supports LED display for PC and/or server status monitoring

12.             Supports monitor resolutions up to 2048 x 1536

13.             Supports “beeper” when switching is enabled

14.             Fully compliant with USB 1.1/ 2.0 specifications

15.             Rack mountable in 19” system rack (1U)

Đặc tính kỹ thuật

Computer Connections

Single KVM: 16

Cascade Chaining: Up to 4096

Selection Method

Switch Button, Hot-Keys (PS/2 Keyboard), and On-Screen-Display (OSD)

Video Resolution

Max. resolution up to 2048 x 1536 @ 65 Hz

LEDs

Red for PC Selected

Green for PC On-Line/Ready

PC Connectors

16 x HDB-15 female

Support both PS/2 and USB platform servers

Console Ports

Keyboard: 1 x 6 pin mini-DIN female

Mouse: 1 x 6 pin mini-DIN female

Video: 1 x HDB-15 female

Firmware Upgrade Port

Mini USB

Auto-Scan Interval

5 - 90 seconds

Hot-swappable

Yes

Operating Systems Supported

Windows 98SE/ ME/ 2000/ 2003/ 2008/ XP/ Vista/ 7, Linux, Mac OS 9/ OS X and Sun Microsystems

Power

5V, 2A

Housing Material

Metal

Certifications

FCC, CE, C-Tick, IC, CSA

Dimensions

44 x 15.7 x 4.5 cm

Weight

1900 g

-       Bảo hành: 12 tháng.

Giá: 10.560.000 VND (Đã bao gồm VAT)
