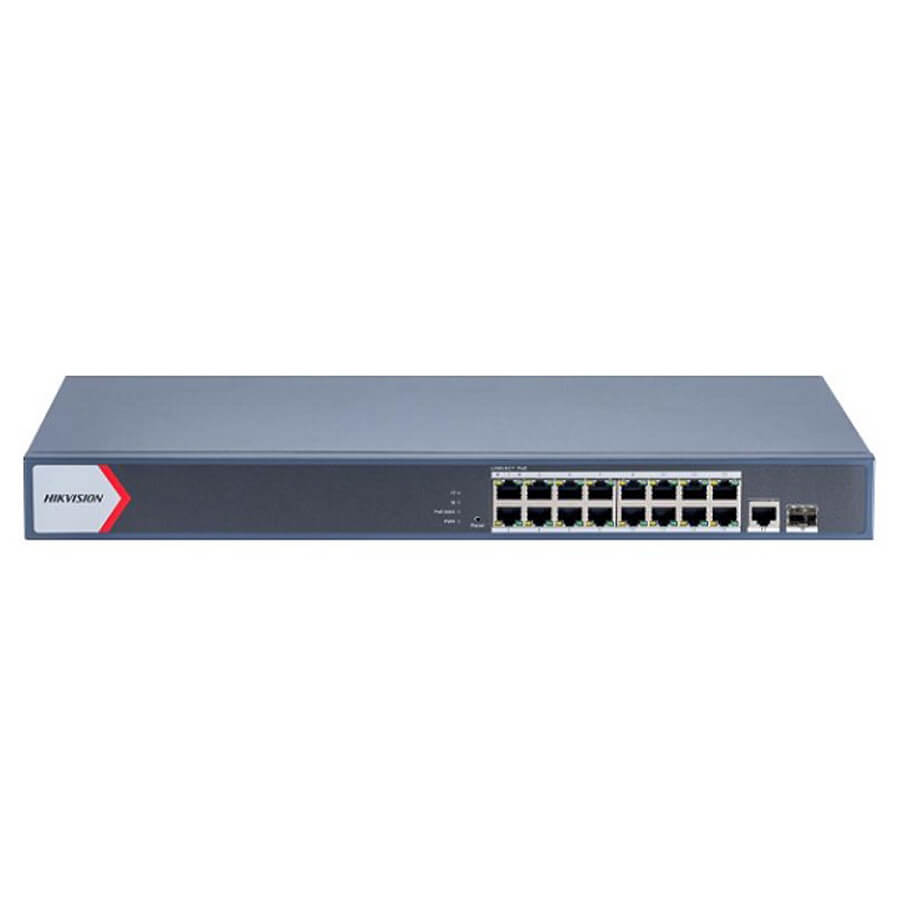

16-Port Gigabit Smart PoE Switch HIKVISION DS-3E1518P-EI/M
- 16 cổng PoE Gigabit RJ45, 1 cổng RJ45 Gigabit, 1 cổng quang Gigabit.
- Tổng công suất PoE là 130W.
- Quản lý đám mây đồng nhất cho hệ thống an ninh.
- Cấu trúc mạng ngay trong tầm tay.
- Khắc phục sự cố từ xa.
- Quản lý cấu trúc mạng dưới dạng hình ảnh.
- Truyền tải PoE khoảng cách dài lên đến 300m.
- Bảo vệ chống sét 6kV.
Đặc tính kỹ thuật
| Network Parameters | |
| Ports | 16 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port |
| Port Type | RJ45 port, full duplex, MDIMDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Working Mode | Standard mode (default) |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 130 W |
| Software Function | |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. |
| Device Maintenance | Remote upgrade, default parameters recovery, basic network parameters configuration, import and export configuration, time sync |
| Port Configuration | Port rate configuration, slow control, and ports enabling |
| PoE Watchdog | PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond. |
| Port Mirroring | Supported |
| Link Aggregation | Static link aggregation supported for any four ports, and up to eight aggregation groups allowed |
| Port Isolation | Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| LLDP | LLDP protocol supported for global configuration and neighbour discovery |
| DHCP | DHCP client |
| MAC Address Table Display | Supported |
| Super IP | 10.180.190.200 |
| Cable Detection | Supported |
| HPP | Supported |
| Port Long-Range Mode | Supported |
| Port Statistics | Supported |
| Web Management | Supported |
| General | |
| Shell | Metal material |
| Weight | 2.7 kg |
| Dimensions (W × H × D) | 440.0 mm × 220.8 mm × 44.0 mm |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 V AC, 50/60 Hz, Max. 2.5 A |
| Max. Power Consumption | 150 W |
| Power Consumption in Idle | 20 W |
- Bảo hành: 24 tháng.
