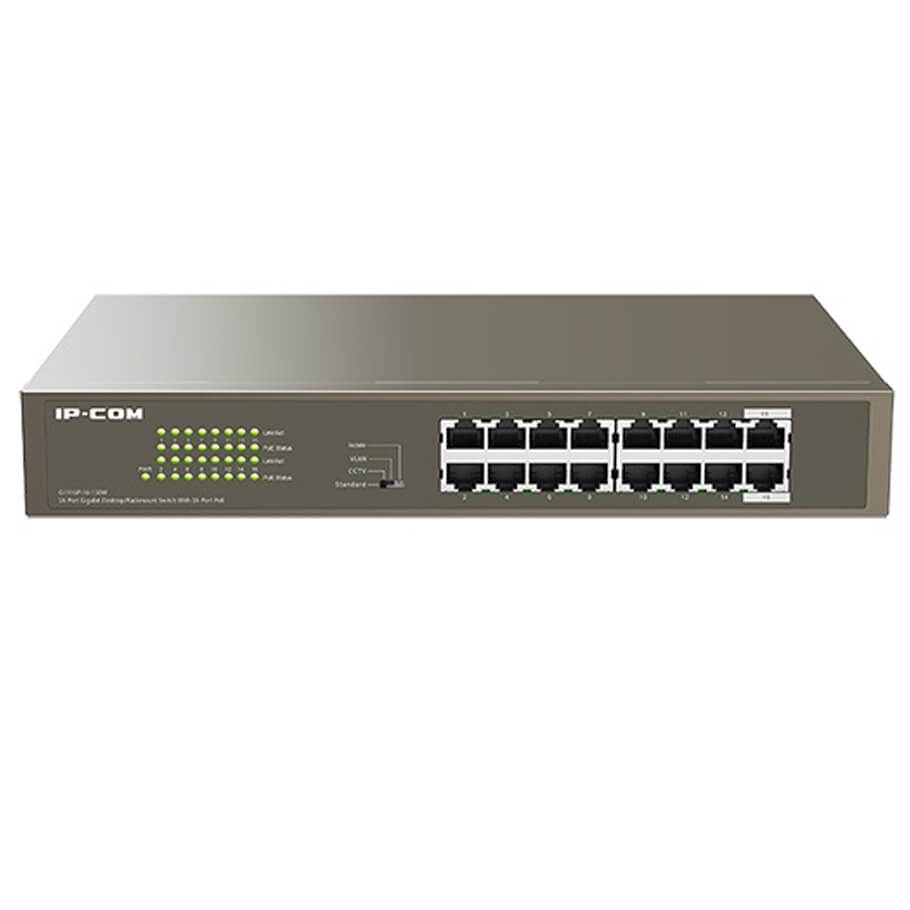

16-Port Gigabit PoE Switch IP-COM G1116P-16-150W
- Tuân thủ các chuẩn IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at.
- Hỗ trợ chế độ chuyển tiếp lưu trữ và chuyển tiếp, bộ nhớ chia sẻ, kiến trúc không nghẽn mạch.
- Hỗ trợ tự học địa chỉ MAC và tự động nhận diện MDI/MDIX.
- Cung cấp 16 cổng tự động đàm phán 10/100/1000Mbps, trong đó 16 cổng hỗ trợ PoE.
- Cổng 1-16: hỗ trợ PoE theo chuẩn IEEE 802.3af/at.
- Hỗ trợ điều khiển luồng full-duplex theo chuẩn 802.3x và điều khiển luồng backpressure ở chế độ half-duplex.
- Hỗ trợ danh sách 8K địa chỉ MAC, tự học và tự động lão hóa địa chỉ MAC.
- Hỗ trợ bảo vệ chống sét cảm ứng lên đến 6KV cho các cổng.
- Công suất đầu ra tối đa của switch: 135W.
- Công tắc DIP phần cứng cho phép chọn giữa các chế độ Tiêu chuẩn, CCTV, VLAN, và Cách ly.
Thông số kỹ thuật
| Hardware Features | |
| Standard&Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE802.3af, IEEE802.3at |
| Indicator | 16*Link/Act per device 16*PoE per device 1*Power per device |
| Interface | 16 10/100/1000Base-T ports(Data/Power) |
| Port | Lightning Protection 6KV |
| Store and forward | Yes |
| Exchange Capacity | 32 Gbps |
| Packet forwarding rate | 23.6Mpps |
| MAC Address Table | 8K |
| PoE supply management | Port 1-16 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +;3 6 7 8 - |
| Voltage input range | AC: 100-240V~50/60Hz |
| Dimensions | 294*178*44mm( W x D x H ) |
| Power Consumption | in full configuration:<150W PoE Max Power Supply: 135W |
| Port Features | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. |
| CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other. | |
| VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively. | |
| lsolation: ports 1 to 8 and ports 9 to 16 belong to two different VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other. | |
| Environment | |
| Operating|Storage Temperature | 0℃~40℃ (32℉~104℉) | -40℃~70℃ (-40℉~158℉) |
| Operating|Storage Humidity | 10%~90% non-condensing | 5%~90% non-condensing |
- Bảo hành: 36 tháng.
