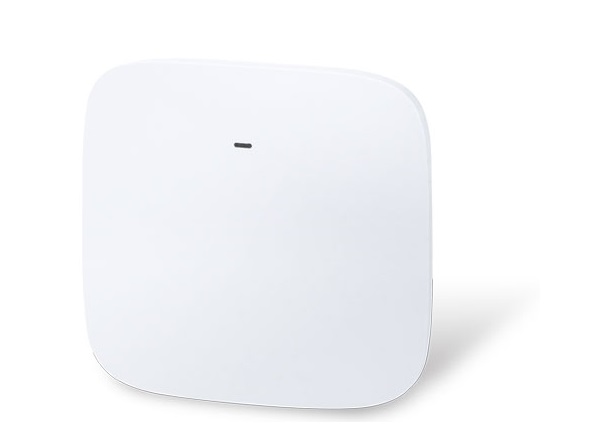

1200Mbps 802.11ac Wave 2 Dual Band Ceiling-mount Wireless Access Point PLANET WDAP-C7210E
- PLANET WDAP-C7210E 1200Mbps Wave 2 Dual Band 802.11ac Wireless AP supports central management through PLANET NMS controllers. With IEEE 802.11ac Wave 2 MU-MIMO 2T2R dual-band technology, the WDAP-C7210E provides a maximum wireless speed of 867Mbps at 5GHz and 300Mbps at 2.4GHz. The new version of the WDAP-C7210E not only has more powerful performance but also supports PLANET CloudViewer app for remotely monitoring devices from anywhere.
Specifications
| Hardware Specifications | |
| Interfaces | LAN 2 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X |
| Antennas | Gain: 2 x 2.4GHz internal 5dBi antenna, 2 x 5GHz internal 4dBi antenna |
| Reset Button | Reset button on the rear side (Press over 7 seconds to reset the device to factory default) |
| LED Indicators | SYS, 2.4GHz, 5GHz |
| Dimensions (W x D x H) | 186 x 186 x 35.8mm |
| Weight | 380 ±5g |
| Power Requirements | 48V DC IN, 0.5A, IEEE 802.3at PoE+ or 12V DC IN, 1.0 |
| Power Consumption | < 12W |
| Mounting | Ceiling Mount |
| Wireless Interface Specifications | |
| Standard | IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r |
| Media Access Control | CSMA/CA |
| Data Modulation | 802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) 802.11a/g/n: OFDM (BPSK/QPSK/16QAM/64QAM) 802.11b: DSSS (DBPSK/DQPSK/CCK) |
| Band Mode | 2.4G / 5G concurrent mode |
| Frequency Range | 2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.32240GHz, 5.500745~5.825GHz ETSI: 5.180~5.320GHz, 5.500~5.180~5.700GHz |
| Operating Channels | 2.4GHz: FCC: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 ETSI: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 5GHz: FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165 (24 Channels) ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 (19 Channels) |
| Software Features | |
| LAN | Static IP / Dynamic IP Supports IP-MAC binding |
| WAN | Static IP Dynamic IP PPPoE PPTP L2TP |
| Wireless Mode | Access Point Gateway Repeater |
| Channel Width | 20MHz, 40MHz, 80MHz |
| Encryption Security | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3-PSK, 802.1X |
| Wireless Security | Enable/Disable SSID Broadcast Wireless max. 32 MAC addresses filtering User Isolation |
| Max. SSIDs | 8 (4 per radio) |
| Max. Clients | 64 per radio |
| Max. WDS Peers | 4 |
| Wireless QoS | Supports Wi-Fi Multimedia (WMM) |
| Wireless Advanced | Auto Channel Selection 5-level Transmit Power Control (Max.100%, Efficient 75%, Enhanced 50%, Standard 25% or Min. 15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Fast Roaming |
| Status Monitoring | Device status, Wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server |
| VLAN | IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping up to 4 SSIDs |
| Self-healing | Supports auto reboot settings per day/hour |
| Management | Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through SNMP v1/v2c/v3 support, MIB I/II, Private MIB |
| Central Management | Applicable controllers: NMS-500, NMS-1000V |
| Environment & Certification | |
| Temperature | Operating: 0 ~ 40 degrees C Storage: -40 ~ 70 degrees C |
| Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing) |
| Regulatory | CE, RoHS |
- Bảo hành: 24 tháng.
