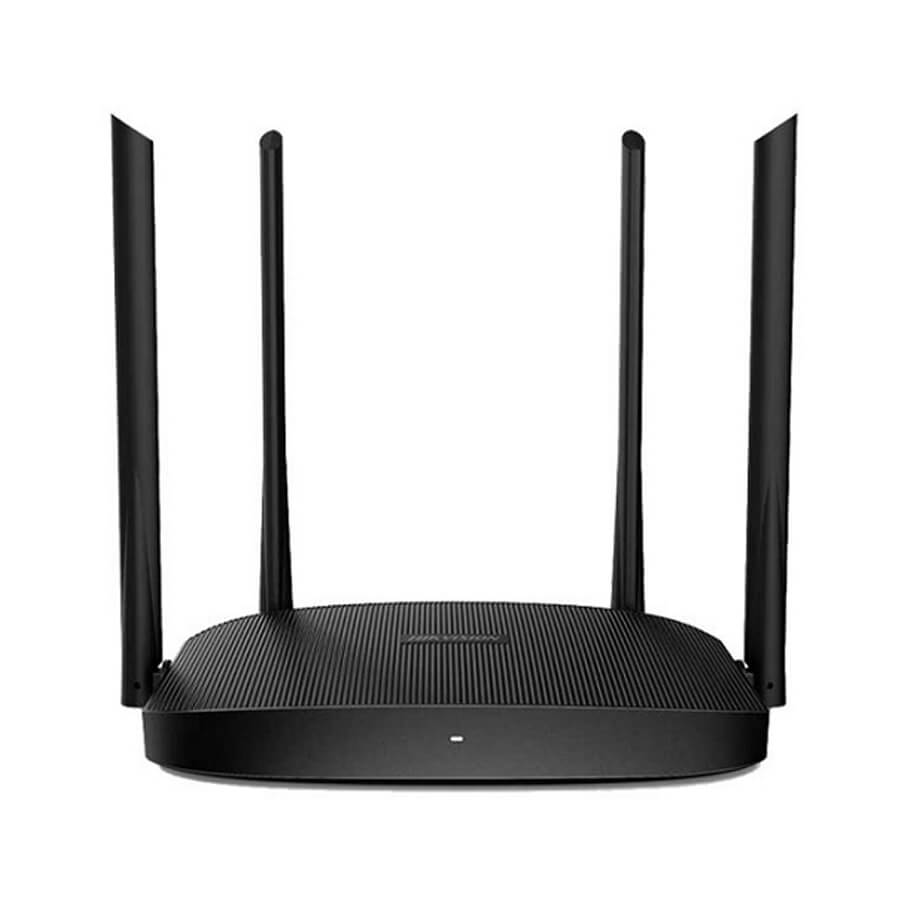

1200M Dual Band Wi-Fi Router HIKVISION DS-3WR12GC
- DS-3WR12GC is a dual band Wi-Fi router designed by Hikvision. You can easily deploy, monitor and expand your home Wi-Fi network anytime and anywhere. DS3WR12GC comes equipped with dual band coverage, which can offer a smooth online game and 4K video experience. Powered with beamforming technology, DS3WR12GC ensures excellent high-speed Wi-Fi coverage in every corner at home.
- 4 x 6dBi external dual band antennas.
- Beamforming optimizes signal.
- Dual band – Smart signal switching.
- Broadband account synchronization.
Đặc tính kỹ thuật
| Wireless Parameter | |
| Data Rate | ≤ 1167 Mbps 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
| Wireless Standard | IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz |
| Working Frequency Band | 2.4 GHz, 5 GHz |
| Transmitting Power | CE: <20 dBm(2.4G) <23 dBm(5G) |
| Wireless Performance | MU-MIMO supported Beamforming supported |
| Antenna | 4 x 6dBi external dual band antennas |
| Operating Frequency | 2.4 GHz: EU/2400-2483.5 MHz (CH1-CH13) 5 GHz: EU/5150-5250 MHz (CH36-CH48) |
| EIRP Power(Max.) | 2.4 GHz: 19.5 dBm 5 GHz: 22.5 dBm |
| Hardware Parameter | |
| Network Interface | 1 x 10/100/1000Mbps WAN port 3 x 10/100/1000Mbps LAN ports |
| LED Indicator | LED indicator |
| Reset | Reset button |
| Power Supply Method | 9 VDC, 1 A power adapter power supply |
| Power Specifications | 9 VDC, 1 A |
| Software Function | |
| Application function | Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported DHCP Server supported Guest Network Configuration supported Signal Adjustment supported Wi-Fi Schedule supported |
| Security Mode | WPA-PSK, WPA2-PSK, WPA and WPA2 supported |
| Upgrade | Web, App Update and Upgrade |
| System Log | System log |
| General | |
| Dimension (W × H × D) | 248.40 mm × 154.80 mm × 213.34 mm |
| Weight | 0.238 kg |
| Packing List | Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1 |
| Packing Method | Single pack |
| Working Temperature | 0℃ to 40℃ (32℉ to 104℉) |
| Working Humidity | 10% to 90% RH non-condensing |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 5% to 90% RH non-condensing |
| Installation Mode | Desktop installation |
| Max. Power Consumption | ≤ 9 W |
- Bảo hành: 24 tháng.
