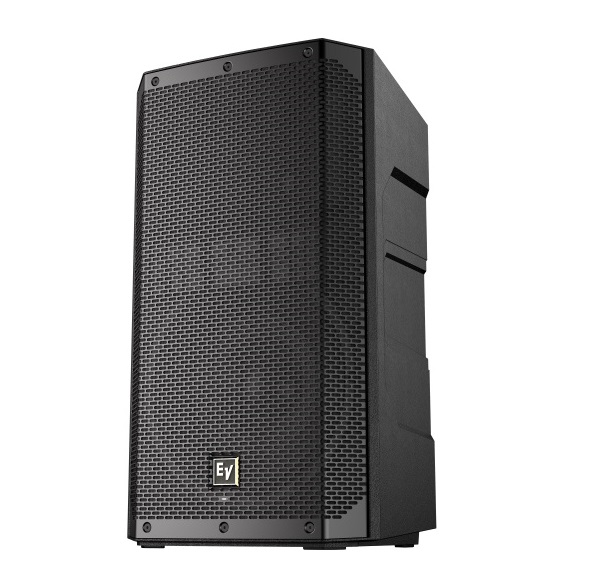

12-inch 2-way Powered Loudspeaker ELECTRO-VOICE ELX200-12P-AP
- ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1C 1-inch titanium compression driver).
- Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
Specifications
| Frequency response (-3 dB) | 57 Hz - 16 kHz |
| Frequency range (-10 dB) | 51 Hz - 20 kHz |
| Maximum SPL | 130 dB |
| Coverage (H x V) | 90° x 60° |
| Power rating | 1200 W |
| LF transducer | EVS-12M 300 mm (12 in) |
| HF transducer | DH-1C 1-inch titanium compression driver |
| Crossover frequency | 1700 Hz |
| Connectors | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR |
| Enclosure | Polypropylene |
| Grille | 18 AWG steel with powdercoat |
| Suspension | (3) M10 suspension points |
| Color | Black or White |
| Dimensions (H x W x D) | 629 mm x 363 mm x 344 mm |
| Net weight | 15.6 kg |
| Shipping weight | 17.7 kg |
| Power consumption | 100 - 240 VAC, 50 - 60 Hz, 1.8A |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
