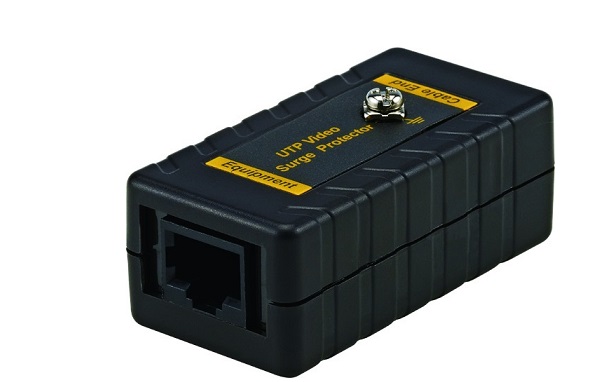

1-Port UTP Video Surge Protector COP 15-SP03
- Up to HD-CVI/TVI/AHD 8MP and CVBS video signals compatible.
- RJ45 Jack to RJ45 Jack design.
- Four pairs for Video transmission surge protected.
- Built in 6KV Surge Protection.
- Built in 15KV Electrostatic Discharge.
- Perfect for 15-U104, 15-U414VPD, 15-UA104R, 15-U116, 15-UA08R, 15-UA16R.....etc
- Dimension (W x H x D): 61 x 31 x 23 mm.
- Weight: 31.5g.
Specification
| Model | 15-SP03 |
| Surge Protection Attack Time | 100 ns |
| Maximum Surge Current | 5000A |
| Surge Lifetime | 300 surges of 100Amps |
| Normal Resistance Across Coaxial | 10,000 MΩ |
| Surge Resistance | Approx. 0Ω |
| Power Passing Capability | DC 90V, AC 90Vp-p, 65 Vrms at 10 Amps |
| Insertion Loss | Less than 0.2 dB |
| Return Loss (75 ohms) | -16dB |
| Connectors | RJ45 |
| Cable | Twisted Pair CAT-5 |
| Dimensions (W × L × H) | 61 x 31 x 23 mm |
| Weight | 31.5g |
