0916 287 068 1-port Mini-GBIC SFP to 1000BaseSX Multi Mode Fiber Transceiver D-Link DIS-S302SX
Trang Chủ >>
Chuyển đổi Quang-điện >> SFP Transceiver D-Link >> 1-port Mini-GBIC SFP to 1000BaseSX Multi Mode Fiber Transceiver D-Link DIS-S302SX
Mã số:04055907

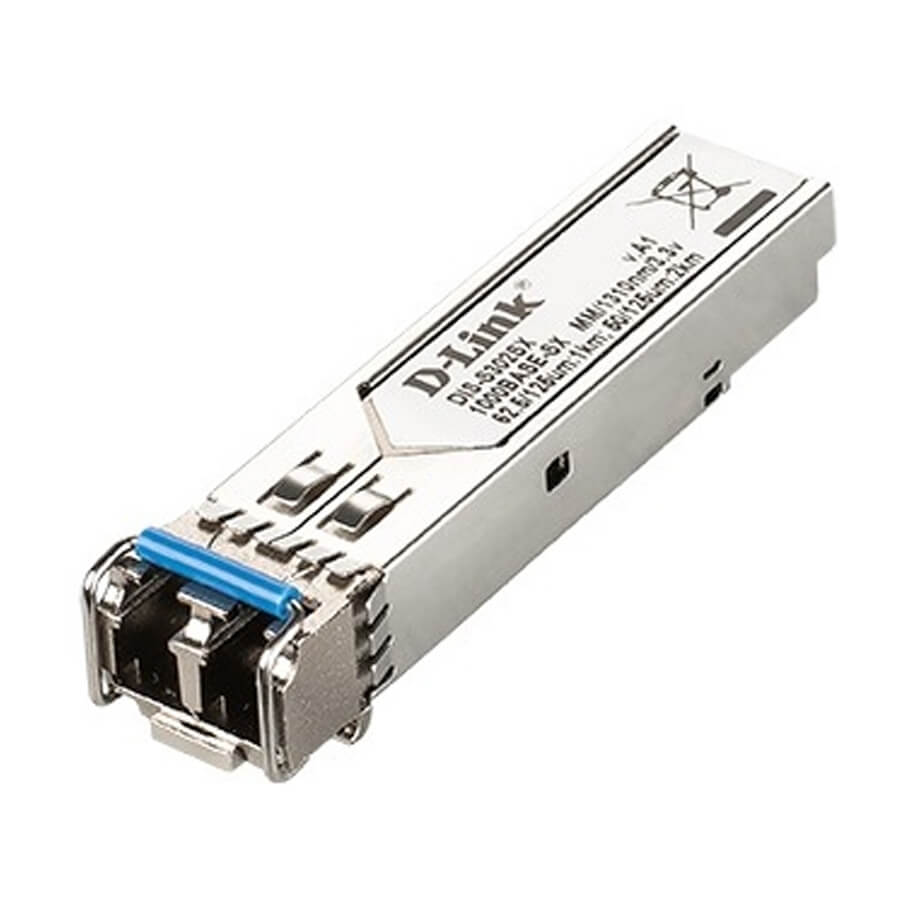

1-port Mini-GBIC SFP to 1000BaseSX Multi Mode Fiber Transceiver D-Link DIS-S302SX
- 1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fibre Transceiver
- Up to 2 km
- -40 ~ 85°C operating temperature
Specifications
| Model | DIS-S302SX |
| Compliant Standard | IEEE802.3z 1000BASE-SX |
| Transceiver Type | SFP |
| Fiber Media support | Multi-Mode |
| Distance | 62.5/125um fiber: 1km 50/125um fiber: 2km |
| Speed | 1.25Gbps |
| Wavelength | 1310nm |
| Connector | Duplex LC Connector |
| Single/bi Direction | Single-direction |
| Output Optical Power (TX Optical Power) | -3dBm, -9dBm |
| Input Optical Power (RX Optical Power) | -3dBm, -22dBm |
| Sensitivity | -22dBm |
| Cable Type | multi-mode 50/125um or 62.5/125um fiber |
| Power | 3.3V |
| Max Input Current | 300mA |
| Power Budget (MIN Power Budget) | 13 dB |
| MAX Power Budget | 19 dB |
| Operation Temperature | -40~85℃ |
| Storage Temperature | -40~85℃ |
| Humidity (Operating) | 5%~95% |
| Humidity (Storage) | 5%~95% |
| Dimension (W x D x H) | 13.7 x 55.4 x 8.5mm |
| Weight | 20g |
- Bảo hành: 36 tháng.
Giá: 3.445.000 VND
(Đã bao gồm VAT)
