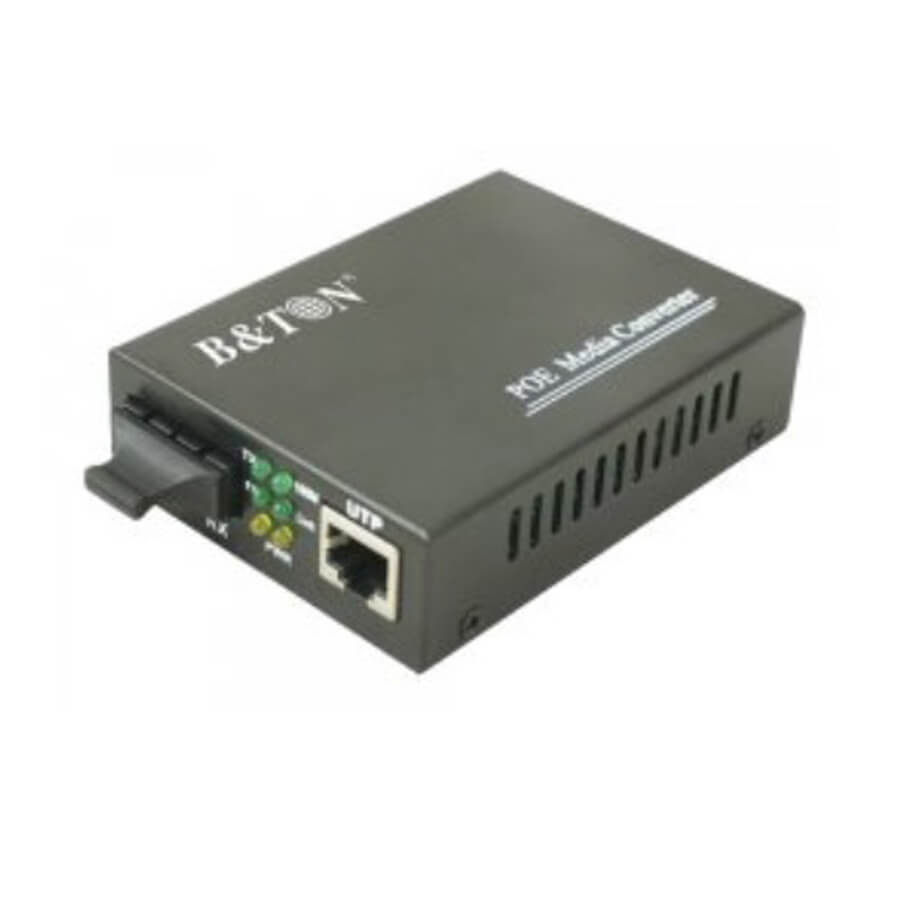

1-port 10/100Mbps PoE Switch BTON BT-6101FE-25
-1 port 10/100Base-T(X) PoE and 1 port 10/100Base-F(X), Dual Fiber, 1310nm, Single Mode, 25 km, SC.
-Tích hợp 1 port 10/100Base-T(X) PoE and 1 port10/100Base-F(X).
-Chuyển đổi quang điện Single Mode.
-Khoảng cách truyền: 25 km.
-Bước sóng quang hoạt động: 1310nm.
-Ngõ giao tiếp quang: Connector SC.
-Ngõ giao tiếp mạng: RJ45.
-Tương thích các chuẩn: IEEE 802.3af.
-Các đèn LED chỉ thị nguồn, PoE, Fiber.
-Công suất tiêu thụ: 15.4W cho mỗi port.
Features
-IEEE 802.3af/at power on the POE port.
-Supply power to wireless access points and surveillance cameras over Cat cable.
-POE ports support MDI/MDIX.
-Support PoE power up to 15.4W(IEEE802.3af)/25.5W(IEEE802.3at) for PoE ports
-POE Lines: End-Span (12+,36-), Mid-Span (25+,78-).
-Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode.
-LED indicators for monitoring power, link, activity and speed.
-Working Environment: Operating Temperature: 0° ~ 55 °C; Storage Temperature: -20 ° ~ 75 °C.
-Operating Humidity: 10% ~ 95%, non-condensing.
-Forwarding Mode: Store-And-Forward.
-MTBF: 100,000 hours.
Specifications
| POE Port | 1port POE |
| Uplink | 1port Fiber |
| Connector Type | 1 x Copper Cable RJ45 Port + 1 Uplink Fiber |
| Network Media | 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤150m);100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤150m) |
| Bandwidth | 1.6Gbps (non-blocking) |
| Address Database Size | 1K |
| MTBF | 190,000 hours |
| Forwarding Mode | Store-And-Forward |
| Network Protocols | IEEE 802.3, IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, IEEE 802.3af /IEEE 802.3at, IEEE 802.3x Flow control, IEEE 802.1q VLAN (optional) |
| LED Display | Power, POE, Fiber |
| Power Supply | 52VDC 0.7A/1.25A |
| PoE Port Power | 15.4W |
| PoE Standard | IEEE 802.3af/at |
| PoE Feature | All ports support MDI/MDIX |
| Working Environment | Operating Temperature: 0 ° ~ 55 ° C |
| Storage Temperature: -20 ° ~ 75 ° C | |
| Operating Humidity: 10% ~ 95%, non-condensing | |
| Transmission Distance | 100meter for UTP port; 0~120km for Fiber port |
| Fiber Specs | Fiber Port: SC(default), FC/ST/LC(SFP) |
| Wavelength/Distance: Dual Fiber 1310nm(2/25/40km);1550nm(60/80/100/120km) | |
| Dimension | 94 x 70 x 26.5mm |
-Bảo hành: 12 tháng.
