Thiết bị lưu trữ SYNOLOGY RackStation RS3621RPxs

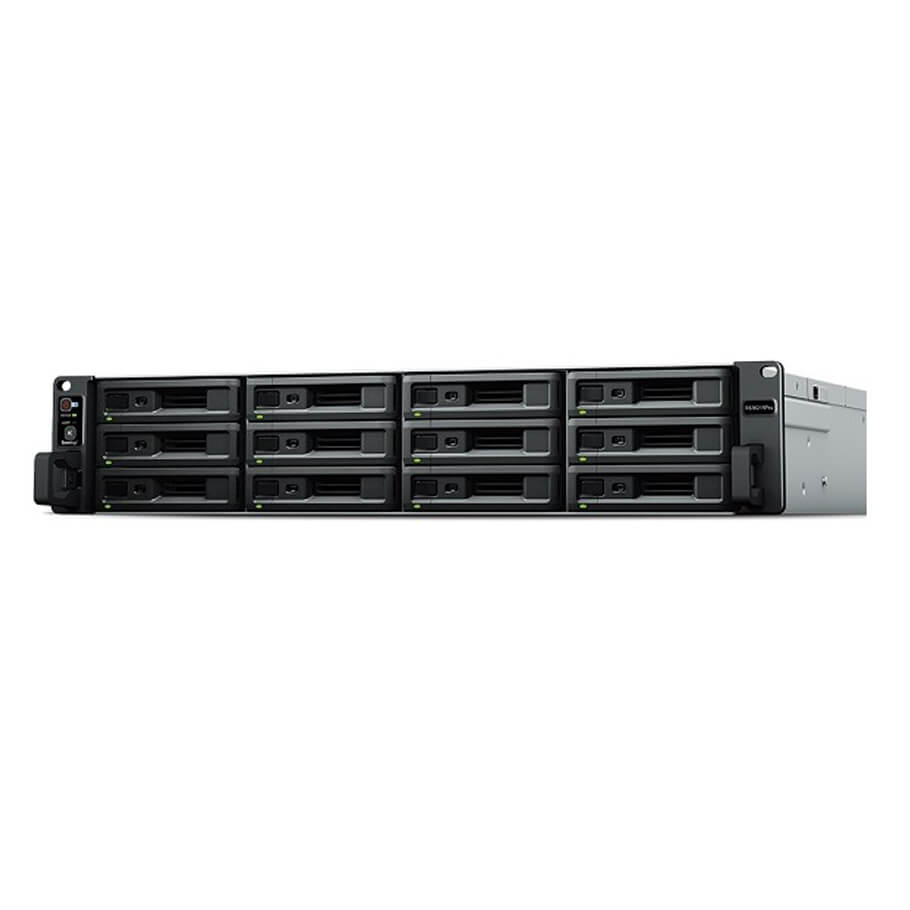

- The Synology RackStation RS3621RPxs is a powerful 12-bay 2U storage solution with built-in redundant power. Engineered to deliver high throughput and robust data protection, its 6-core processor enables it to handle the demanding workloads of modern business environments. DiskStation Manager (DSM) provides comprehensive software solutions covering file management, data protection, surveillance, collaboration, virtualization and more.
- Powerful Performance: Up to 189098 random read IOPS and 4718 MB/s sequential read performance.
- Powerful Compute: Host multiple compute-intensive services with its 6-core Intel processor.
- Upgradability: Two PCIe expansion slots allow for M.2 NVMe cache adapters and high-bandwidth network cards.
- Redundant Power: Ensure business continuity with two redundant power supplies
- On-demand Scalability: Supports up to 36 drive bays using two RX1217(RP).
Đặc tính kỹ thuật
| Hardware | |
| CPU | Intel® Xeon® D-1531 6-core (12-thread) 2.2 GHz, Turbo Boost up to 2.7 GHz |
| Hardware encryption engine | Yes (AES-NI) |
| Memory | 8 GB DDR4 ECC UDIMM (expandable up to 64 GB) |
| Compatible drive types | • 12 x 3.5 inch or 2.5 inch SATA HDD/SSD (drives not included) • It is strongly recommended that you only install drives listed on your device's compatibility list5. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. |
| Hot swappable drive | Yes |
| External ports | • 2 x USB 3.2 Gen 1 ports • 2 x Expansion ports (Infiniband) |
| Form factor | Rackmount 2U |
| Size (HxWxD) | 88 x 482 x 724 mm (with server handles) |
| Weight | 14.5 kg |
| LAN ports | 4 x 1GbE RJ-45 |
| Wake on LAN/WAN | Yes |
| PCIe 3.0 slots | • 2 x 8-lane x8 slots • Supports 10GbE/25GbE network interface cards and M.2 NVMe SSD adapter cards for SSD cache |
| Scheduled power on/of | Yes |
| System fans | 4 x (80 x 80 x 32 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single phase |
| Operating temperature | 0°C to 35°C (32°F to 95°F) |
| Storage temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative humidity | 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| General DSM Specification | |
| Networking protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP) |
| File systems | • Internal: Btrfs, ext4 • External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFA |
| Supported RAID types | Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Storage management | • Maximum single volume size: 108/200 TB • Maximum system snapshots: 65,536 • Maximum internal volumes: 128 |
| SSD cache | • Read/write cache support • 2.5 inch SATA SSD support • M.2 NVMe SSD support |
| File sharing capabilities | • Maximum local user accounts: 16,000 • Maximum local groups: 512 • Maximum shared folders: 512 • Maximum concurrent SMB/NFS/AFP/FTP connections: 2,000 |
| Privileges | Windows® Access Control List (ACL), application privileges |
| Directory services | Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials. |
| Virtualization | VMware vSphere®, Microsoft Hyper-V®, Citrix®, OpenStack® |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite) |
| Supported clients | Windows® 7 onwards, macOS® 10.12 onwards |
| Supported browsers | Chrome®, Firefox®, Edge®, Internet Explorer® 10 onwards, Safari® 10 onwards, Safari (iOS 10 onwards), Chrome (Android™ 6.0 onwards) on tablets |
- Bảo hành: 36 tháng.
