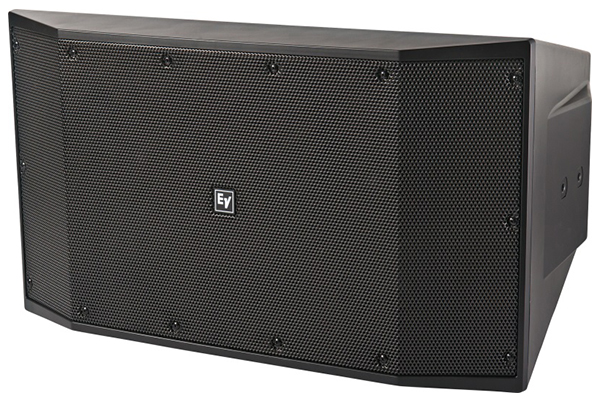

Subwoofer 2x10 inch cabinet black Electro-Voice EVID-S10.1DB
- Two 10 inch high-excursion woofers.
- Carefully engineered for outdoor environments (IP54 and IP65), without compromising performance.
- 400 W power handling provides for 120 dB maximum SPL (126 dB peak).
- 70/100 V transformer input panel accessory available.
- Crossover input panel accessory available.
- The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual 10' (254 mm) woofer loudspeaker with outstanding performance for the most demanding professional and commercial sound applications.
- Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S10.1D is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.
- Ease of installation, and flexible options for mounting solutions and weather resistance, the EVID-S10.1D is the perfect solution for a wide variety of surface mount applications.
- The EVID-S10.1D has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications.
- The subwoofer is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.
- For the toughest weather conditions, the IP rating of the EVIDS10.1D can be upgraded to IP65, using the included port plug accessory.
- The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.
Specifications
| Model | EVID-S10.1DB |
| Frequency Range (-10 dB) | 33 Hz – 500kHz |
| Weight Net | 39.46lbs (17.9kg) |
| Depth | 19.33' (491mm) |
| Width | 25.63' (651mm) |
| Height | 14.02' (356mm) |
| Available Color | Black |
| Connector Type | Two removable locking 4-pin connector (Euroblock) – Input and output. Max. wire size 12 AWG (2.5 mm). |
| Environmental Specs | IP-54 (per IEC-60529); IP-65 with port covers |
| LF Transducer | Two 10 inch (254 mm) |
| Max. SPL/1m (calc) | 120dB |
| Nominal Impedance | Stereo Mode: (2) 8ω; Mono Mode: (1) 4Ω |
| Power Handling (Continuous / Peak) | 400W/1600W |
| Recommended High-Pass Frequency | 40Hz |
| Sensitivity 1 W/1 m | 94dB |
| Shipping Weight | 46.3lbs (21kg) |
| Transformer Taps (Transformer Version Only) | Optional Accessory |
| Weatherized | Yes |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
