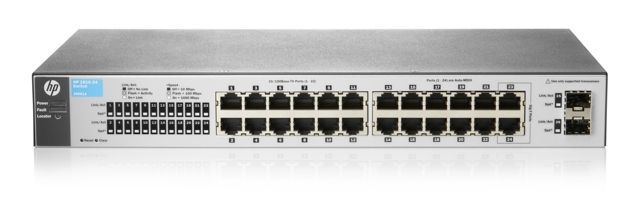

Smart-managed HP 1810-24 v2 Switch - J9801A
22 RJ-45 autosensing 10/100 ports + 2 10/100/1000 port + 2 SFP
|
Technical specifications |
|
|
Ports |
22 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX) |
|
Duplex: half or full; 2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) |
|
|
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 2 SFP autosensing 100/1000 ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) |
|
|
Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Supports a maximum of 22 autosensing 10/100 ports plus 2 autosensing 10/100/1000 ports plus 2 SFP ports |
|
|
Mounting |
Mounts in an EIA-standard 19 in. telco rack (hardware included); horizontal surface, wall, and under-table mounting |
|
Memory and processor |
128 MB RAM, packet buffer size: 512 KB, 8 MB flash |
|
Latency |
100 Mb Latency: < 3.4 µs (64-byte packets) |
|
Throughput |
up to 9.2 million pps |
|
Management features |
Web browser |
|
Switching capacity |
12.4 Gbps |
|
Connectivity and communications |
|
|
Denial of service protection |
CPU DoS Protection |
|
General protocols |
IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1W Rapid Spanning Tree Protocol; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3az Energy Efficient Ethernet; IEEE 802.3x Flow Control; RFC 1534 DHCP/BOOTP Interoperation; RFC 2030 Simple Network Time Protocol (SNTP) v4 |
|
Network management |
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) |
|
Power and operating requirements |
|
|
Power consumption |
22 W (maximum) |
|
Input voltage |
100-127/200-240 VAC |
|
Input operating current |
.4/.3 A |
|
Input frequency |
50/60 Hz |
|
Safety |
UL 60950-1; IEC 60950; EN 60950 |
|
Electromagnetic compatibility |
EN 55022 Class A; CISPR 22 Class A; VCCI V-3; FCC (CFR 47, Part 15) Subpart B Class A; VCCI V-4 |
|
Operating temperature range |
0 to 40°C |
|
Operating humidity range |
15 to 95% @ 104°F (40°C) |
|
Operating altitude |
up to 3 km |
|
Acoustic pressure emissions |
Power: 0 dB, no fan |
|
Heat dissipation |
204 BTU/hr (215.22 kJ/hr) |
|
Immunity standard |
IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2; EN 61000-3-3 |
|
Dimensions and weight |
|
|
Minimum dimensions (W x D x H) |
32.99 x 17.3 x 4.39 cm |
|
Weight |
1 kg |
- Hàng chính hãng HP.
- Bảo hành: 03 năm
