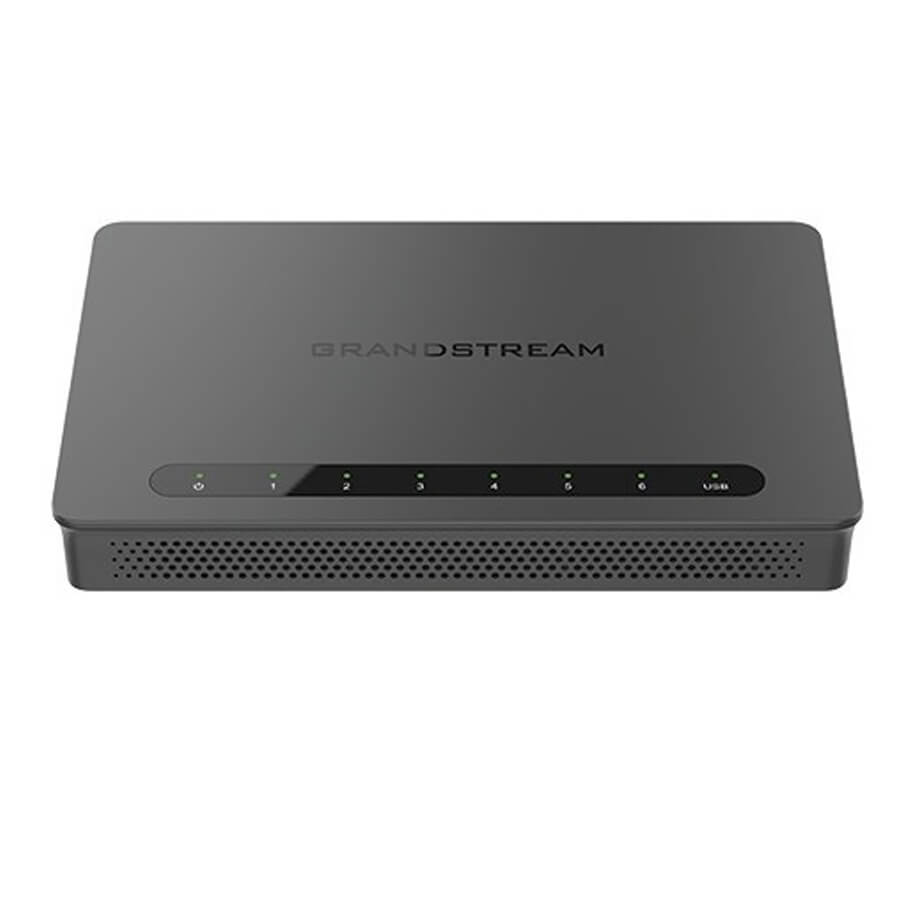

Router cân bằng tải Grandstream GWN7001
- Hỗ trợ 6 cổng Gigabit.
- Tối đa 5 WAN cân bằng tải.
- 2.2Gbps NAT Routing Performance.
- Chức năng lọc chặn web/app xấu qua URL, Keyword, content, App.
- 30K NAT Session, hỗ trợ lên tới 100-150 user đồng thời.
- Quản lý 100 AP đồng thời.
Thông số kỹ thuật
| CPU | Dual ARM Cortex A53 1GHz |
| Memory and NAT Sessions | 256MB RAM, 256MB Flash, 30K NAT sessions |
| Network Interfaces | 6x Gigabit Ethernet ports *All ports support WAN/LAN configurable |
| NAT Throughput | 2.2Gbps |
| IPsec VPN Throughput | 530Mbps |
| Auxiliary Ports | 1x USB 2.0 port, 1x Reset Pinhole |
| Mounting | Desktop and wall mounting |
| LEDs | 8 x single-color LEDs for device tracking and status indication |
| Connection Type | DHCP, Static IP, PPPoE, PPTP, L2TP |
| Network Protocols | IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | • VLAN, TOS • Support multiple traffic classes, filter by port, IP address, DSCP, and policing • App Qos • VoIP Prioritization |
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG |
| Security | • Application/protocol monitoring and traffic statistics • Content filtering: Supports Application/URL/DNS/Web Content Filtering • Safe search |
| VPN | SSL VPN Server / Client-to-Site • IPsec VPN Client-to-Site / Site-to-Site • PPTP VPN Server / Clien-to-Site • L2TP Client-to-Site • WireGuard (pending) • IPSec Encryption: DES, 3DES, AES • IPSec Authentication: MD5, SHA-1, SHA2-256 • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 • IPSec Protocols: ESP • IPSec NAT Traversal • SSL VPN Encryption: AES, DES • SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512 • SSL VPN Certificate: RSA • PPTP Encrpytion: MPPE 40-bit, 128-bit, IPSec • PPTP/L2TP Authentication: MS-CHAPv1/2 |
| Max Concurrent VPN Tunnels | Tunnels Up to 50 Tunnels |
| Network Management | GWN7001 embedded controller can manage itself and up to 100 GWN Aps GWN.Cloud offers a free cloud management platform for unlimited GWN Routers and GWN APs. |
| Power & Green Energy Efficiency | Universal power adaptor included Input: 100-240VAC 50-60Hz Output: 12V DC 1A (12W) |
| Environmental | Operation: 0°C to 40°C Storage: -30°C to 60°C Humidity: 10% to 90% Non-condensing |
| Physical | Unit Dimension: 210mm(L)x130mm(W)x35mm(H); Unit Weight: 453g Entire Package Dimension: 246mm(L)x235mm(W)x54mm(H); Entire Package Weight: 672g |
| Package Content | GWN7001 Router, Universal Power Supply, Network Cable, Quick Installation Guide |
| Compliance | FCC, CE, RCM, IC, UKCA |
- Xuất xứ: Trung Quốc.
