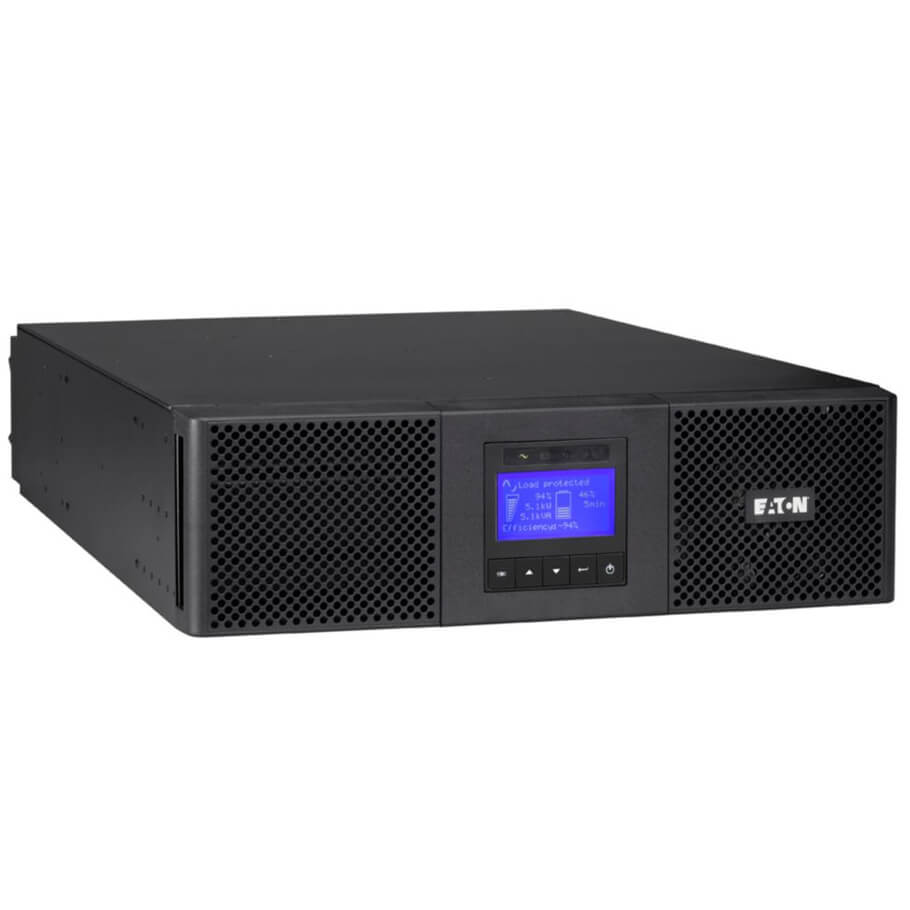

Power Module EATON 9SX11KiPM
- VA rating: 11 kVA.
- Output nominal voltage: 230V default (200/208/220/230/240/250V).
- Output power factor: 0.9.
- Output waveform: Sine wave.
- Input nominal voltage: 230V default (200/208/220/230/240/250V).
- Nominal frequency: 50/60 Hz.
- Input power factor: >0.99.
- Dimension (D x H x W): 70 x 44 x 13 cm.
- Weight: 21kg.
Đặc tính kỹ thuật
| General Specifications | |
| Product Length/Depth | 70 cm |
| Product Height | 44 cm |
| Product Width | 13 cm |
| Product Weight | 21 kg |
| Compliances | CE Marked, TUV, cULus Listed, CSA 22.2 |
| Certifications | IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC |
| Battery | |
| Runtime graph | View runtime graph |
| Battery replacement | No battery |
| Battery quantity | 0 |
| Battery management | ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units |
| Extended battery capability | Yes |
| Electrical Output | |
| Receptacle | Hardwired |
| Voltage | 230V |
| Wattage | 10 kW |
| Output power factor | 0.9 |
| Output voltage range | 200/208/220/230/240/250 V +/- 1% |
| Output waveform | Sine wave |
| Output nominal voltage | 230V default (200/208/220/230/240/250V) |
| Voltage distortion output (linear load) - max | 2 |
| Feed type | 1 |
| Topology | Online/Double-conversion |
| VA rating | 11 kVA |
| Electrical Input | |
| Input connection | Hardwired/fixed connection |
| Input nominal voltage | 230V default (200/208/220/230/240/250V) |
| Nominal frequency | 50/60 Hz |
| Input power factor | >.99 |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Input frequency range | 40-70 Hz |
| Communications | |
| Includes network card | No |
| Communication | USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Dry contacts (4 outputs, relay, DB9) |
| Ethernet interface | No |
| User interface | Multilingual graphical LCD display |
| Potential free switch contact | Yes |
| Expansion slots | One slot for optional communication card |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Type of interface | Other |
| Environmental | |
| Altitude | 3000 m |
| Noise level | |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Relative humidity | 0-95% non-condensing |
- Bảo hành: 24 tháng.
