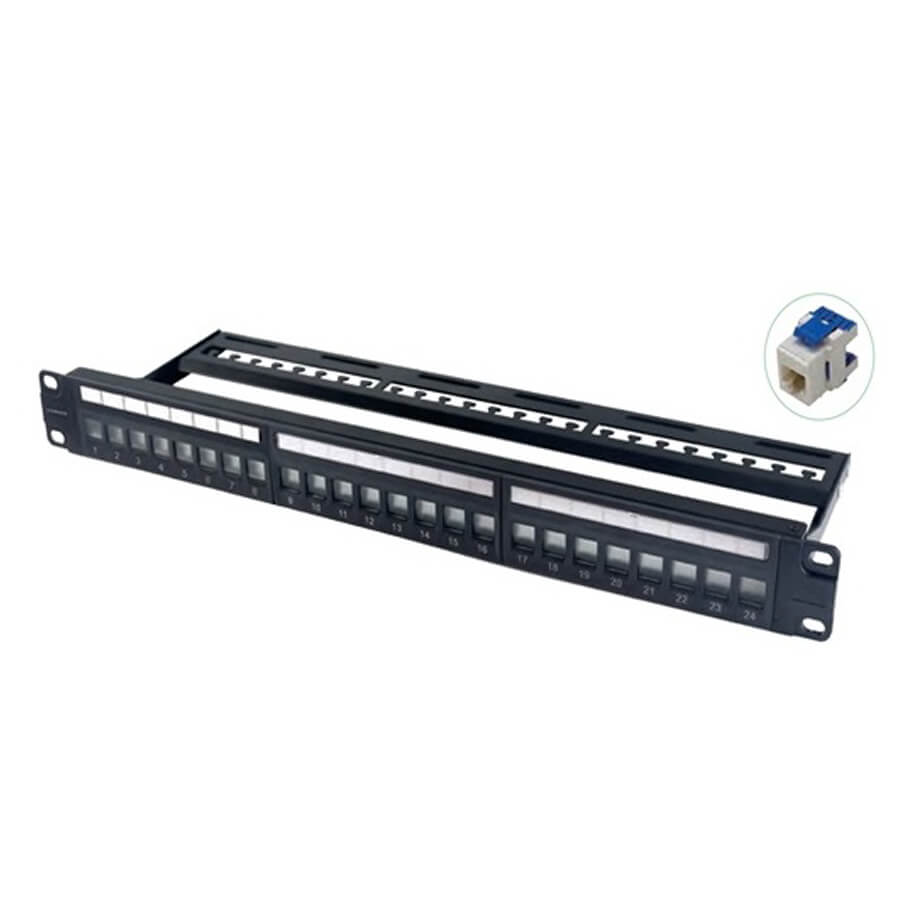

Patch panel 24-port CAT6 VIVANCO VCCPUF6241B
- Part Number: VCCPUF6241B
- CAT6 24 port Patch Panel with Dust-proof Shutter (Unshielded, Loaded, 1U)
Compliance
- ANSI/TIA 568-C.2 Category 6
- ISO/IEC 11801 Class E
Features and Benefits
- Standard 19” widely used industry standard adopts plastic front and steel rear frame
- Proper management of cable position and improves the cabling bending diameter
- Connecting points adopt the special pin to effectively reduce NEXT
- Each keystone can be individually disassembled
| Electrical Performance | |
| Compressive strength | DC 1000V(AC750V) 1min, No breakdown and arcing phenomena |
| DC Resistance (Ω) | ≤300 mΩ |
| Connecting reactance (Ω) | ≤20mΩ |
| Insulation Resistance (Ω) | Under normal atmospheric pressure ≥500 mΩ |
| Physical Performance | |
| IDC | phosphor bronze |
| Golden pin | Phosphor bronze with gold plating 50U |
| Method of shielding | Zinc Alloy |
| Plug insertion | ≥1000 |
| IDC insertion life spam | ≥250 |
| AWG | 22~26AWG |
| Wiring | T568A/ T568B |
- Hãng sản xuất VIVANCO của Germany.
