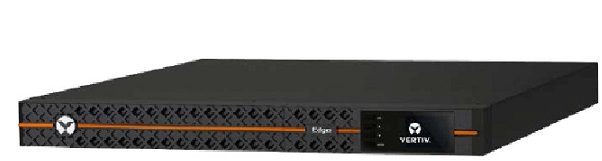

Nguồn lưu điện UPS VERTIV EDGE-500IRM1U (01202568)
- Liebert EDGE UPS 500VA/450W 230V 1U Rack.
- Rating: 500VA/450W.
- Input AC:
+ Voltage Range Without Battery Operation (230V default): 166V - 278V.
+ Frequency Range: 45Hz - 65Hz, autosensing.
- Output AC:
+ Output Receptacles: 3 + 3 IEC60320 C13.
+ Output Voltage: 200V/208V/220V/230V/240V.
+ Waveform (Battery Operation): Pure Sine Wave.
+ Transfer Time: 4 - 6 ms Typical.
- Dimension (W x D x H): 438 x380 x 43 mm.
- Weight: 11kg.
Đặc tính kỹ thuật
| Rating (VA/W) | 500VA/450W |
| Dimensions, mm | |
| Unit (W x D x H) | 438 x380 x 43 |
| Shipping (W x D x H) | 550 x 620 x 200 |
| Weight, kg | |
| Unit | 11 |
| Shipping | 17 |
| Input AC Parameters | |
| Voltage Range Without Battery Operation (230V default) | 166 - 278 |
| Frequency Range (Hz) | 45 - 65, autosensing |
| Input Power Connector | IEC60320 C14 |
| Surge Protetion (J) | 624 |
| Output AC Parameters | |
| Output Receptacles | 3 + 3 IEC60320 C13 |
| Output Receptacles - Controllable | Yes - 1 group |
| Output Voltage | 200/208/220/230/240 |
| Waveform (Battery Operation) | Pure Sine Wave |
| Transfer Time | 4 - 6 ms Typical |
| Output Overload (AC Mode) | 106% - 125% @ 60 s 126% - 150% @ 50 s 151% - 200% @ 2 s |
| Efficiency (full load, line mode, typ) | 96% |
| Battery | |
| Type | Valve-regulated, non-spillable, lead acid |
| Recharge Time (internal batteries, typical) | 3 hr @ 90% |
| Environmental | |
| Operating Temperature (ºC) | 0 to 40 |
| Storage Temperature (ºC) | -25 to +55 without battery inside |
| Relative Humidity (Operation) | 20% to 90% |
| Operating Altitude (m) | 3000 |
| Audible Noise (line mode) | <40dB normal mode, <70% load <45dB AVR mode, >70% load |
| Form Factor | Rack (1U) |
| Agency | |
| Compliance | CE, CB Report, EAC, RCM, UKCA |
| Safety | IEC/EN62040-1 |
| Transportation | ISTA 2A |
| Environmental | RoHS2/ REACH/ WEEE |
- Xuất xứ: Trung Quốc.
- Bảo hành: 3 năm.
