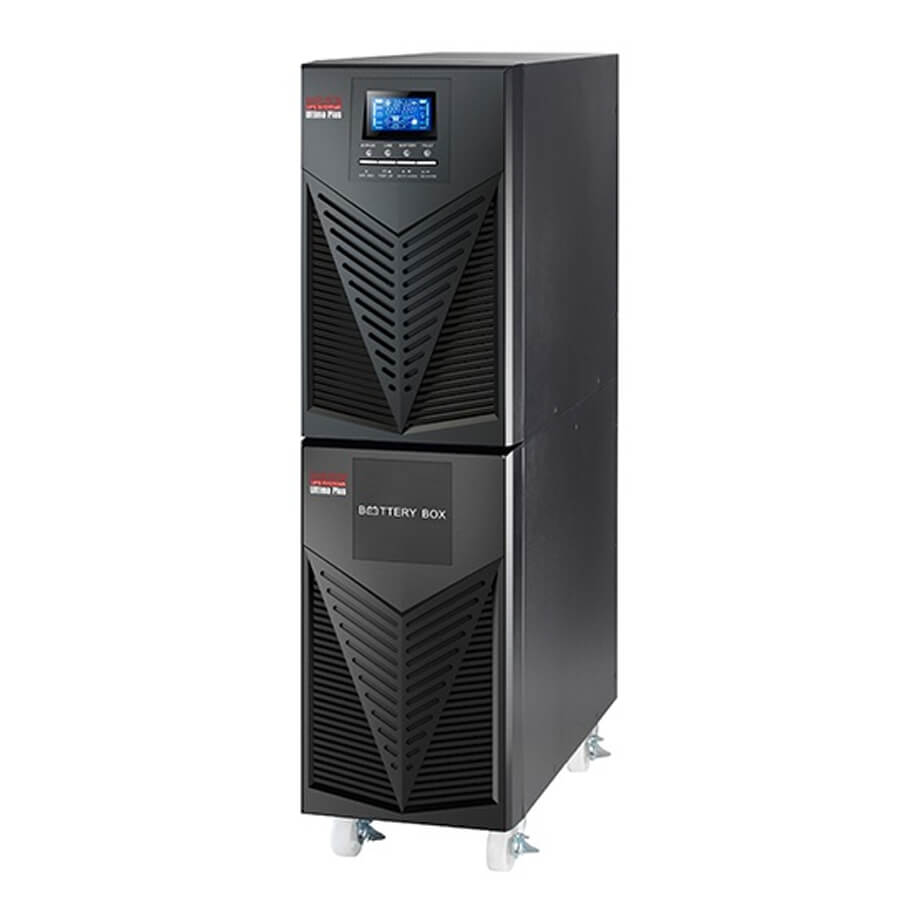

Nguồn lưu điện UPS MARUSON ULT-P10K
- Công suất: 10000VA / 8000W.
- Công nghệ: Online double conversion.
- Điện áp ngõ ra: 208/220/230/240 VAC.
- Tần số ngõ ra: 47 ~ 53 Hz or 56 ~ 64 Hz.
- Dạng sóng: sine.
- Thời gian chuyển mạch: 0.
- Ắc quy: 12V/9Ah x 16.
- Kích thước (DxWxH): 442 x 190 x 688 mm.
- Trọng lượng: 75kg.
Đặc tính kỹ thuật
| Model | ULT-P10K |
| Phase | Single phase with ground |
| Capacity | 10000 VA / 8000 W |
| Input | |
| Voltage | 176 ~ 300 VAC |
| Voltage Range | +/- 3% |
| Frequency | 46~54 Hz or 56 ~ 64 Hz |
| Power Factor | ≧ 0.99 @ 100% load |
| Output | |
| Voltage | 208/220/230/240 VAC |
| Voltage Regulation | +/- 1% |
| Frequency | 47 ~ 53 Hz or 56 ~ 64 Hz |
| Transfer Time | Zero |
| Waveform | Pure sinewave |
| Battery | |
| Type | 12V/ 9AH |
| No. of Battery | 16 pcs (16~20 pcs adj.) |
| Charging Current | Default: 1.0A ± 10% |
| Typical Recharge Time | |
| Indicators | |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| Alarm | |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| Physical | |
| Dimension (WxDxH) | 442 x 190 x 688 mm |
| Weight | 75kg |
- Bảo hành: 24 tháng.
