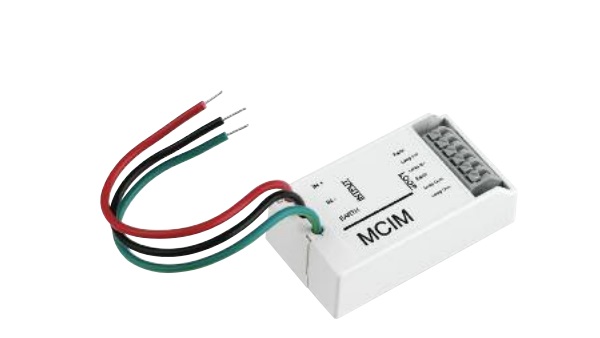

Micro Single Channel Input Units COOPER MCIM
- The MCIM is a single input, soft addressed micro interface, incorporating integral short circuit isolators. It is extremely compact and therefore ideal for incorporation into other equipment.
- The MCIM is fully compatible with the current range of Menvier intelligent addressable fire control panels.
Features
- Quick and simple to install.
- Compact size.
- Soft Addressed.
- Integral short circuit isolator.
Benefits
- Plug and play no hard addressing required.
- No external short circuit isolator required.
Thông số kỹ thuật
| Model | MCIM |
| Description | Micro single channel input unit |
| Standards | EN54 Pt17 & Pt18 |
| Specification | |
| Operating Voltage | 18.5V dc to 30V dc |
| Quiescent Current | 310µA |
| Inputs | |
| Trigger Resistance | 56kΩ |
| End of Line Resistor | 22kΩ |
| Short Circuit Fault Threshold Resistance | 1Ω |
| Open Circuit Fault Threshold Resistance | 33kΩ |
| Environmental | |
| Operating temperature | -10ºC to +60ºC |
| Humidity (non condensing) | 0 to 95% RH |
| Physical | |
| Construction | PC/ABS |
| Dimensions (H x W x D) | 63mm x 35mm x 18.5mm |
| Weight | 0.078kg |
| Ingress protection | IP40 |
| Compatibility | |
| Suitable for use with | Menvier intelligent addressable fire systems |
| Recommended loop/cable type | Fire Tuff, FP200, MICC |
- Bảo hành: 12 tháng.
