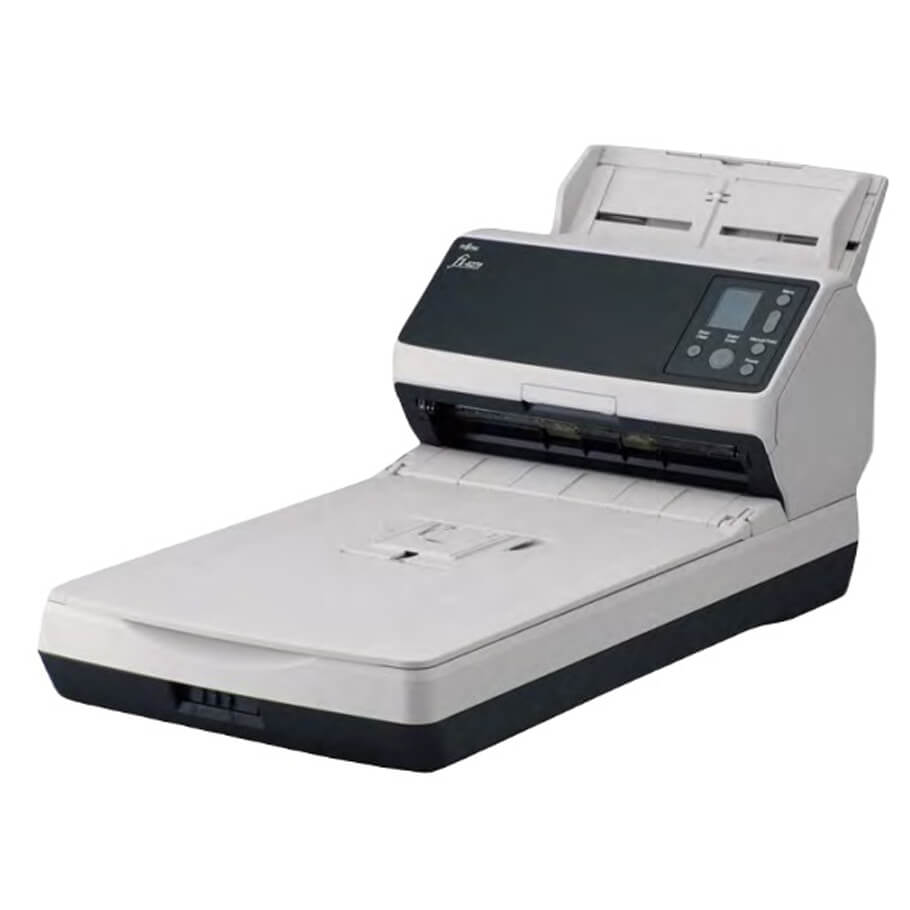

Máy quét hai mặt Fujitsu Scanner fi-8270
- Máy quét mặt phẳng, khổ A4, 2 mặt nạp tài liệu tự động (ADF).
- Độ dày tài liệu: Có thể quét thẻ cứng dập nổi dày tới 1.4mm.
- Tốc độ Scan (ADF): 70ppm/140ipm (simplex/duplex).
- Độ phân giải quang: 600dpi.
- Khay giấy 100 tờ, công suất 10.000 tờ/ngày.
- Kết nối: USB (USB 3.2 Gen1x1/USB 2.0/USB 1.1); Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T).
Đặc tính kỹ thuật
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Duplex |
| Scanning Speed (A4 Portrait) (Color/Grayscale/Monochrome) | - ADF: Simplex: 70 ppm (200/300 dpi) Duplex: 140 ipm (200/300 dpi) - Flatbed: 1.7 seconds (200/300 dpi) |
| Image Sensor Type | ADF: CIS x 2 (front x 1, back x 1) Flatbed: Color CCD X 1 |
| Light Source | ADF: RGB LED x 2 (front x 1, back x 1) Flatbed: White LED |
| Optical Resolution | 600 dpi |
| Output Resolution (Color / Grayscale / Monochrome) | 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
| Background Colors | ADF: White / Black (selectable) Flatbed: White (or optional black) |
| Document Size | ADF: Maximum: 215.9 x 355.6 mm (8.5 x 14 inch) Minimum: 48 x 50 mm (1.9 x 2 inch) Long Page Scanning: 6096 mm (240 inch) |
| Flatbed: Maximum: 215.9 x 297 mm (8.5 x 11.7 inch) |
|
| Paper Weight (Thickness) | Paper: 20 to 465 g/m² (5.3 to 124 lb) Booklet: Less than 7 mm (0.276 inch) Plastic Card: 1.4 mm (0.055 inch) or less |
| ADF Capacity | 100 sheets (A4 80 g/m² or Letter 20 lb) |
| Expected Daily Volume | 10,000 sheets |
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection |
| Paper Protection | Image monitoring, Sound detection (iSOP) |
| Interface | USB: USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 Ethernet: 10BASE-T, 100BASE-TX, 1000BASE-T |
| Power Requirements | AC 100V - 240V 50/60 Hz |
| Power Consumption | Operating Mode: 28 W or less / 17 W (Eco mode) Sleep Mode: 2.0 W or less (LAN) / 1.4 W or less (USB) Auto Standby (Off) Mode: 0.2 W or less |
| Operating Environment | Temperature: 5 to 35 °C (41 to 95 °F) Relative Humidity: 15 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
| Dimensions (Width x Depth x Height) | 300 x 577 x 234 mm (11.8 x 22.7 x 9.2 inch) |
| Weight | 8.8 kg (19.4 lb) |
| Supported Operating System | Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Linux (Ubuntu) |
| Included Software / Drivers | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver, Image Scanner Driver for Linux (SANE), PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™, Scanner Central Admin |
| Image Processing Functions | Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold |
- Bảo hành: 12 tháng.
