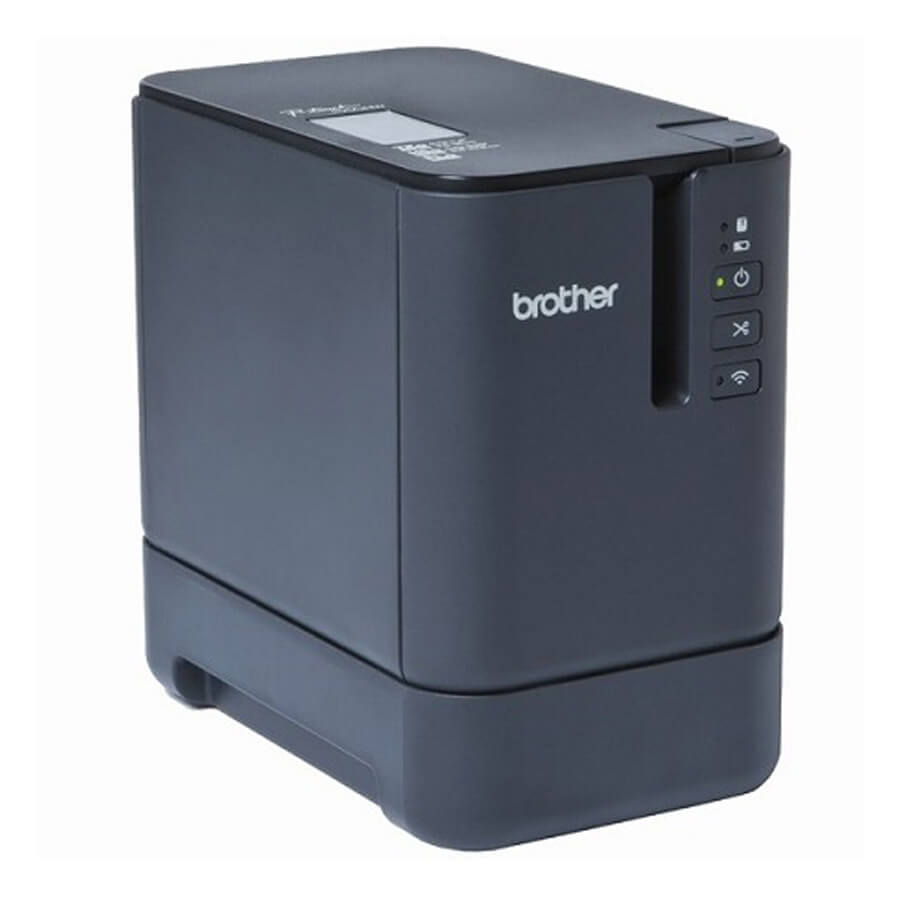

Máy in nhãn Wifi Brother P-Touch PT-P950NW
- Sản phẩm PT-P950NW là máy in nhãn chuyên nghiệp có tốc độ in cao nhất, khổ nhãn in lên đến 36mm. In văn bản, mã vạch, hình ảnh và logo, nhãn rất thích hợp cho sử dụng trong nhà hoặc ngoài trời trong nhiều năm. Kết nối mạng không dây và có dây, và một loạt các phụ kiện tùy chọn để tạo ra một giải pháp in ấn nhãn tùy chỉnh phù hợp với yêu cầu của bạn.
- Máy in nhãn HGe, TZe, HSe không dây Wifi để bàn.
- Kết nối với máy tính, Wifi, mạng có dây, phần mềm thiết kế nhãn in.
- Kết nối Bluetooth (Tùy chọn).
- In được mã vạch 1D, 2D.
- Tốc độ in nhãn: 80mm/s.
- Độ phân giải in: 360dpi.
- Khổ nhãn in: 3.5, 6, 9, 12, 18, 24, 36 mm.
- Chế độ cắt nhãn tự động và cắt một nửa.
- Nguồn điện cung cấp: 6 pin AA, AC adaptor hoặc pin sạc.
- Thích hợp dùng cho nhà máy, nhà kho, ngành điện, viễn thông…
Overview
The PT-P950NW is a complete wireless on-demand network laminating label printing solution that comes with printer, accessories, label design and print software, and a full length UL certified tape – all this for the price of just the printer! This small footprint printer produces wide, premium quality laminated labels at 360dpi print resolution, up to 32mm print height on 36mm tape, and features a built-in automatic cutter that trims a continuous 'tape' to virtually any length, one at a time or as a strip of pre-cut labels. Brother laminated labels can withstand abrasion, fading, extreme temperatures, chemicals and moisture.
Main Features
- Wi-Fi, Ethernet, USB, Host USB, Serial & Optional Bluetooth (PA-BI-002) Interfaces - Versatile Wireless and Wired Connectivity Options
- Produce Premium Quality, UL Certified¹ Laminated Labels On-Demand - Virtually Eliminates the Need to Purchase Pre-Printed Labels From a Converter for Custom and Short Run Labels
- Infrastructure, Adhoc and Direct Wireless Wi-Fi Communications - Connect Directly to a Windows Computer, iOS and Android Smartphone or Tablet
- Larger Print Head Prints up to 32mm High on 36mm Wide Tape at 360 dpi Printing Resolution - Prints Larger, Easy to Read Labels with Smooth Curves that Help Eliminate Jagged and Pixilated Images, Including Very Small Characters and Graphics
- Automatic Dual Blade Cutting Mechanism - Pre-Print Strip of Easy to Peel labels as an Alternative to Sheets and Rolls of Die Cut Labels
- Future Proof Optional Accessories: Li-ion Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-002), Touch Panel & Display (PA-TDU-003) and Bluetooth v2.1 (PA-BI-002) - Make Printer Configuration Purchasing Decision on Current Requirements, Optional Accessories are User Installable After Deployment
- Printer Includes AC Adapter and Easy to Use, Advanced Label Design Software, UL Certified Tape and Cables - Comes With Everything you Need to Help you Design and Print Premium Quality Laminated Labels
- Prints Laminated Labels up to 3.1 ips - Print Speed is up to 4x Faster Than Other Brother Models and is Ideal for Work in Progress (WIP) and Higher Volume Labeling Applications
- Template Mode Printing and Downloadable Databases, Optional Touch Panel & Display (PA-TDU-003) - Easy to Develop Solutions to Print Standalone, From Scanning a Barcode or Connected to an Industrial Device (ex: PLC or Tester)
- Uses HGe/TZe/HSe Tape - All in One, Drop in Cartridge Design Helps Ensure you Get the Best Print Quality and Makes Replacing Media Virtually Trouble Free
- Small Footprint, only 4.7' wide x 5.7' high x 7.6' deep - Ideal for Use on Crowded Bench Tops, Limited Work Space and Even on Carts.
Specifications
|
Hardware Features |
|
|
Model Type |
Industrial Wireless Network & Desktop |
|
Tape Family |
HGe, TZe, HSe |
|
Tape Sizes |
3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm |
|
Tape Length |
8m (26.25') |
|
Tape Technology |
Laminated Thermal Transfer |
|
Tape Types |
High Grade Laminated Bulk, Standard Laminated, Flexible ID, Extra Strength Adhesive, Heat Shrink Tube, Tamper-Evident, Non-Laminated, Iron-on Fabric, Acid Free |
|
LCD Display |
Optional Touch Panel Display (PA-TDU-003) |
|
Backlight |
Optional Touch Panel & Display (PA-TDU-003) |
|
Maximum Print Resolution |
360 x 720 dpi (14 x 28 dots/mm) |
|
Maximum Print Speed |
80 mm/sec (3.15 ips) |
|
Keyboard |
Optional Touch Panel Display (PA-TDU-003) |
|
Cutter |
Automatic w/ Strip Cutting Feature |
|
Batteries |
Optional Li-ion Rechargeable Battery (PA-BT-4000LI), Requires Optional Battery Base (PA-BB-002) |
|
Operation Mode |
Computer Connected (GDI Printer, Template), Connected to Host Peripheral (USB or Serial) |
|
Printer Emulation |
Raster, ESC P, Text (Template/Form Mode) |
|
ENERGY STAR® certified |
Yes |
|
Control Panel |
On/Off, Feed/Cut, Wi-Fi On/Off Keys; Power, Low Battery, Wi-Fi & Error LED's |
|
Power Switch |
Digital |
|
Power Supply |
AC Adapter Standard, Optional Li-ion Battery |
|
AC Adapter |
AD-9100ESA (Included) - 24VDC / 100-240VAC 50/60 Hz |
|
Interface |
Wi-Fi WLAN (802.11b/g/n), LAN (10/100 Base-TX), USB 2.0, Host USB, Serial (RS-232C), Optional Bluetooth v2.1 (PA-BI-002) |
|
Mobile Device Printing App |
Mobile Cable Label Tool, Mobile Transfer Express |
|
Mobile Device Compatibility |
iOS 3.0 or Later, Android 1.6 or Later |
|
Software Features |
|
|
Microsoft Word/Outlook/Excel Add-ins |
Office 2000/2003/2007 |
|
Fonts |
Resident: Helsinki, Letter Gothic; P-touch Editor Software: Brother & Compatible TrueType Fonts |
|
Font Sizes |
Scalable Fonts |
|
Font Styles |
Regular, Bold, Shadow, Outline, Horizontal Lines, Surround, Invert |
|
Max. Print Height |
1.26' (32 mm) |
|
Multi-Block |
P-touch Editor Software |
|
Label Length Setting |
0.16' - 39.37' (4.06mm - 999.99mm) |
|
Horizontal Alignment |
Left, Center, Right Justification |
|
Vertical Printing |
P-touch Editor Software |
|
Rotate Printing |
Yes |
|
Text Insert |
Yes |
|
Text Framing/Fill Pattern |
P-touch Editor Software |
|
Multi-copy Print |
Up to 5,000 Copies |
|
Memory |
6 MB |
|
Memory for Transferred Data (Number) |
Up to 99 Template Files |
|
Favorites Function Key |
Optional Touch Panel & Display (PA-TDU-003) |
|
Download data to unit |
Yes |
|
Built-in Designs/Templates |
Downloadable |
- Hãng sản xuất: Brother.
- Bảo hành: Bảo hành 12 tháng tại Trung tâm bảo hành.
