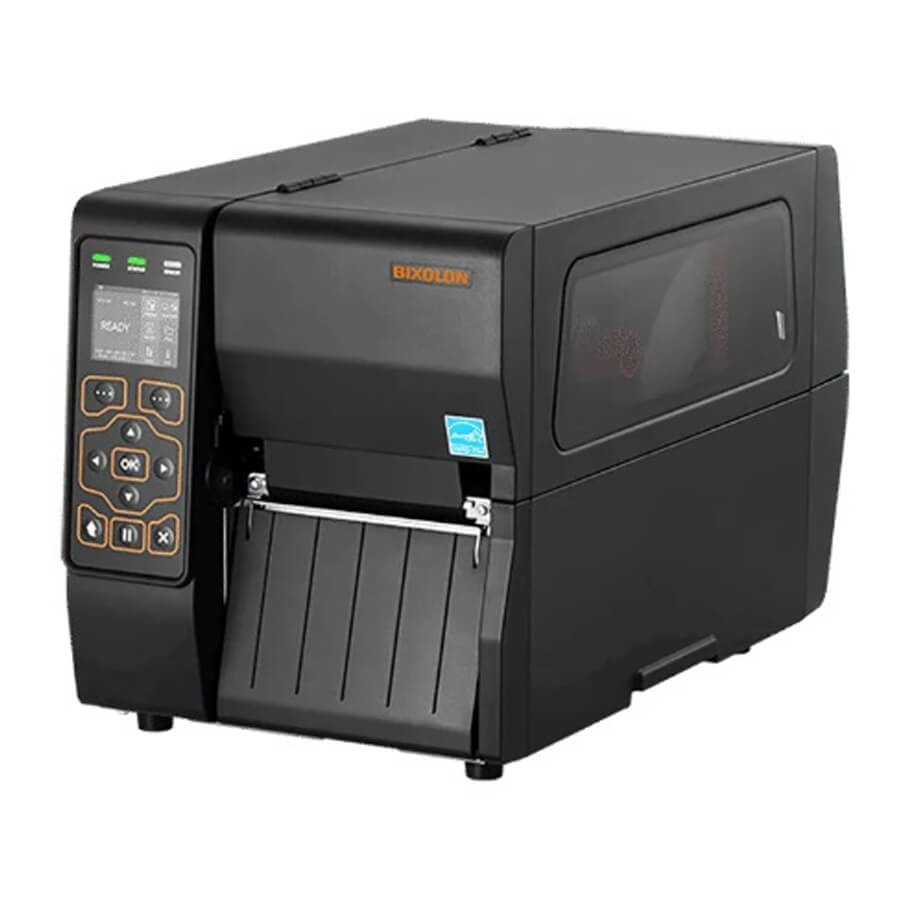

Máy in mã vạch công nghiệp BIXOLON XT3-40
- Phương thức in: In nhiệt gián tiếp+trực tiếp.
- Tốc độ in: 8ips (203 mm/sec).
- Độ phân giải: 203 dpi.
- Bộ nhớ: 128MB SDRAM, 128MB Flash.
- Cổng kết nối: USB + USB Host + Serial + Ethernet.
- Độ dài in: 4000mm.
- Độ rộng in: 108mm.
Đặc tính kỹ thuật
| Printer Specifications | |
| Print Method | Thermal Transfer, Direct Thermal |
| Print Speed | Up to 8 ips (203 mm/sec) |
| Print Resolution | 203 dpi |
| Print Width | 108mm |
| Print Length | Up to 4,000 mm |
| Sensor | Transmissive(Adjustable), Reflective (Adjustable), Ribbon-End, Head Open |
| Media Characteristics | |
| Media Type | Gap, Black Mark, Notch, Continuous, Fan-Fold |
| Media Width | 20 ~ 114mm |
| Media Roll Diameter | Up to 203 mm |
| Media Thickness | 0.06 ~ 0.25 mm |
| Supply Method | Easy Paper Loading |
| Inner Core | 25.4 ~ 76.2 mm |
| Ribbon Characteristics | |
| Ribbon Type | Wax, Wax / Resin, Resin, Outside, Inside |
| Ribbon Width | 40 ~ 110 mm |
| Ribbon Length | Up to 450 m |
| Core Inner Diameter | 25.4 mm |
| Physical Characteristics | |
| Dimensions (W x D x H) | 240 x 430.5 x 276.7 mm |
| Weight | 9.3kg |
| Electrical | EnergyStar Certified, Internal Power Adaptor 100-240V AC, 50-60H |
| Display | 2.4 inch Color TFT LCD |
| Performance Characteristics | |
| Memory | 128 MB SDRAM, 128 MB Flash |
| Interface | USB+USB Host+Serial+Ethernet |
| Real Time Clock | Supported (Standard) |
| Environment Characteristics | |
| Temperature | Operating: 5 ~ 40°C (41 ~ 104℉) Storage: -20 ~ 60℃ (-4 ~ 140℉) |
| Humidity | Operating: 10 ~ 80% RH Storage: 10 ~ 90% RH |
| Software | |
| Emulation | SLCS™, BPL-Z™, BPL-E™ |
| Driver / Utility | Windows Driver (Europlus / Seagull), Linux / Mac CUPS Driver, Virtual COM USB / Ethernet Driver, Utility Program, OPOS / JPOS Driver, Bartender Ultralite for BIXOLON, Label Artist-II™, Network Auto Installer, SAP® Device Driver |
| SDK / Plugin | Android / iOS / Windows SDK, Linux SDK, Xamarin SDK, Web Print SDK |
| Application | Label Artist™ Mobile (Android, iOS), mPrint App (Android, iOS) |
| Fonts / Graphics / Symbologies | |
| Fonts | Bitmap Fonts (10 SLCS™, 16 BPL-Z™, 5 BPL-E™), Scalable Fonts (1 SLCS™, 1 BPL-Z™), 23 Code page, Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB |
| 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39 | |
