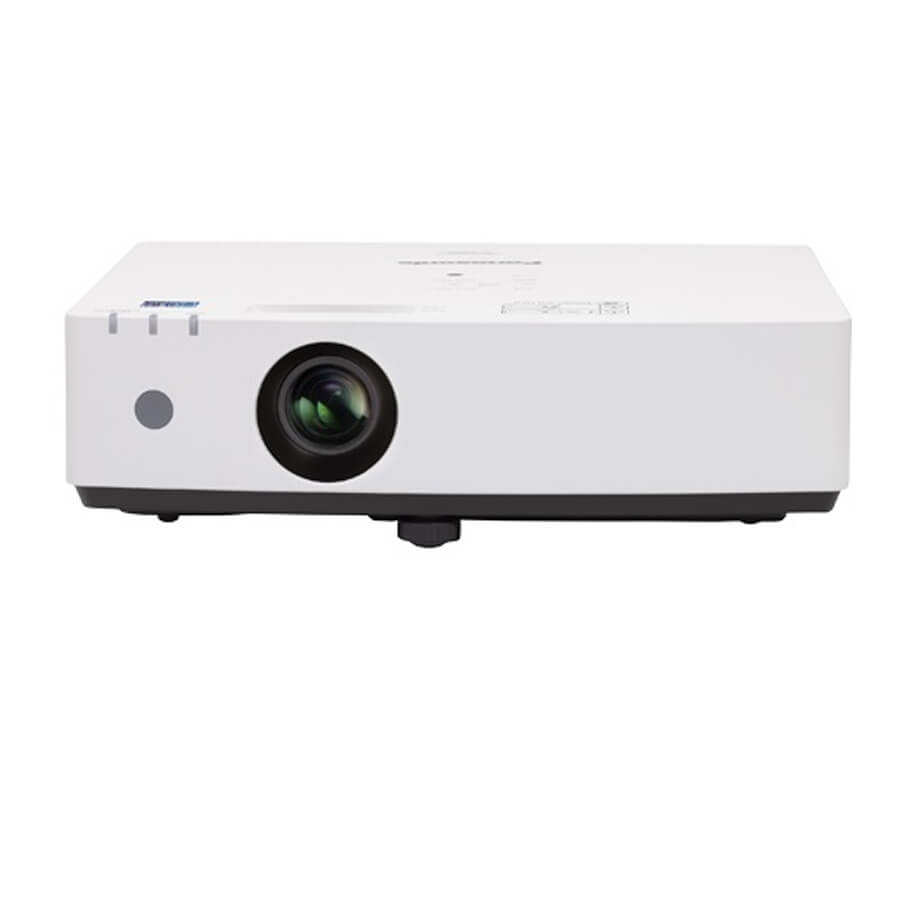

Máy chiếu PANASONIC PT-LMZ460
- Loại máy chiếu: LCD.
- Độ sáng: 4600 Lumens.
- Độ phân giải: 1920 × 1200 pixels (WUXGA).
- Độ tương phản: 3000000:1 .
- Nguồn chiếu sáng: Laser Diodes, tuổi thọ 20000 giờ (NORMAL/QUIET)/24000 giờ (ECO).
- Kích thước chiếu: 0.76m - 7.62m (30-300 in), tỷ lệ 16:10.
- Hệ thống đèn laser. cho phép hoạt động liên tục 24/7
- Loa tích hợp: 10W
- Kích thước: 349 x 105 x 309 mm.
- Trọng lượng: 4.2kg.
Đặc tính kỹ thuật
| Projector type | LCD projectors |
| LCD panel | Size: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) Pixels: 2,304,000 (1920 x 1200) pixels |
| Light source | Laser diodes |
| Light output | 4,600 lm |
| Time until light output declines to 50% | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast ratio | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 0.76–7.62 m (30–300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio | 85% |
| Lens | 1.2x manual zoom (throw ratio: 1.36–1.64:1), manual focus lens, F 1.61–1.76, f 19.1–23.0 mm |
| Digital Zoom Extender | Throw ratio: 1.36–2.05:1 (Corresponding value. When used together with optical zoom.) |
| Keystone correction range | Vertical: ±25 ° (Auto, Manual), Horizontal: ±35 ° (Manual) |
| Terminals | HDMI 1/2 IN: HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported COMPUTER 1 IN: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) COMPUTER 2 IN: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) AUDIO 1/2 IN: M3 stereo mini-jack x 2 AUDIO OUT: M3 stereo mini-jack x 1 SERIAL IN: D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) LAN: RJ-45 x 1 for network control, 10Base-T, 100Base-TX USB (VIEWER/WIRELESS/DC OUT): USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A) |
| Protocol versions | IPv4, Ipv6 |
| Power supply | AC 100 V–240 V, 50/60 Hz |
| Power consumption | Maximum power consumption: 240 W On-mode power consumption (Light Power): [NORMAL]: 215 W (100–240 V), 205 W (200–240 V) [ECO]: 165 W (100–240 V), 160 W (200–240 V) [QUIET]: 160 W (100–240 V), 155 W (200–240 V) |
| Built-in speaker | 10 W monaural |
| Filter | Included (Estimated maintenance time: approx. 20,000 hours) |
| Operation noise | 35 dB (NORMAL/ECO), 24 dB (QUIET) |
| Dimensions (W x H x D) | 349 mm x 105 mm x 309 mm (with feet at shortest position) |
| Weight with supplied lens | Approx. 4.2 kg |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)13, Operating humidity: 20–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software, Presenter Light Software for Windows®14, Wireless Projector App for iOS/Android™ |
| Control function via LAN | PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery |
- Xuất xứ: Trung Quốc.
- Bảo hành: 36 tháng cho thân máy, 12 tháng cho bóng đèn chiếu tùy theo điều kiện nào đến trước.
