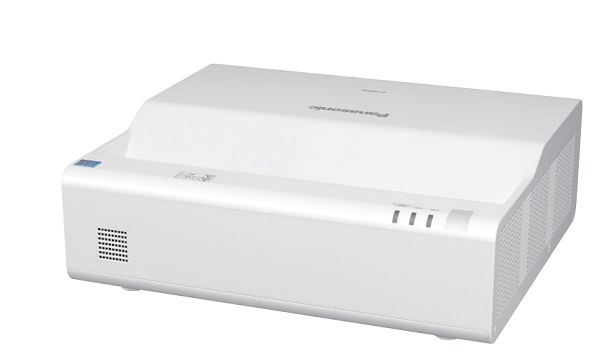

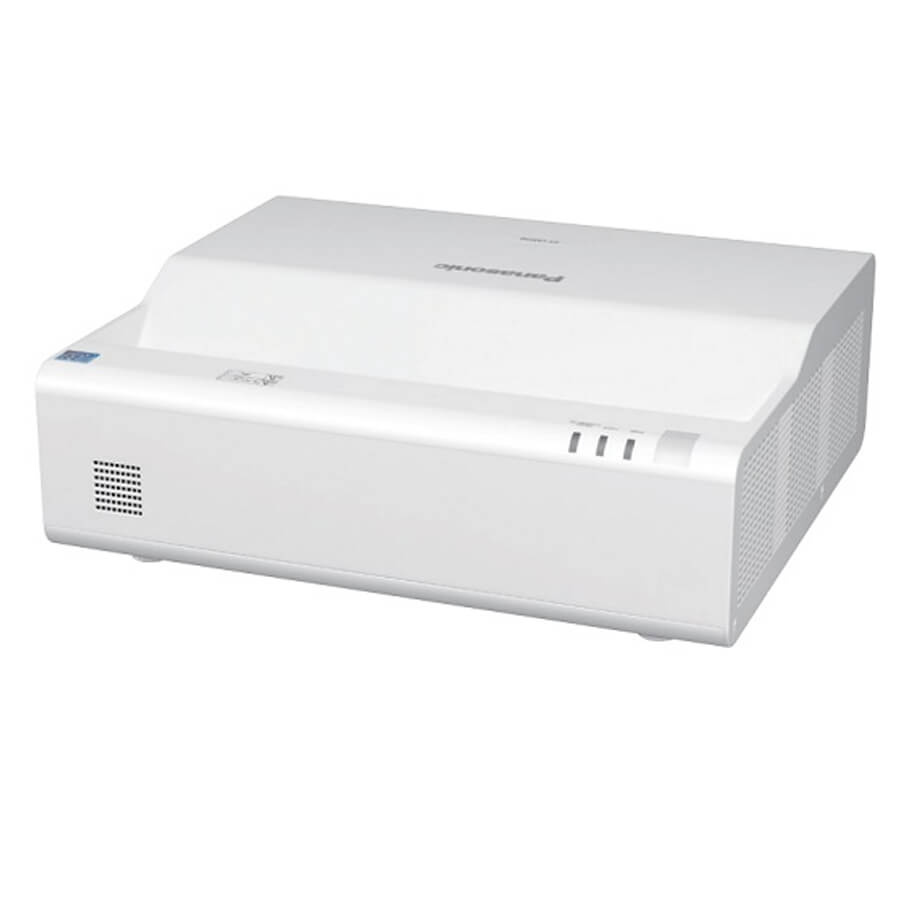

Máy chiếu PANASONIC PT-CMZ50
- Máy chiếu Laser công nghệ LCD.
- Cường độ chiếu sáng: 5200 Ansi Lumens.
- Độ phân giải: 1920x1200 (WUXGA).
- Độ tương phản: 3.000.000:1
- Nguồn chiếu: Laser diodes.
- Kích thước phóng to màn hình: 80-120 inch.
- Chỉnh Keystone: Dọc: ± 3°, Ngang: ± 3°.
- Loa gắn trong: 10W.
- Kích thước: 495 x 160 x 421 mm.
Thông số kỹ thuật
| Projector type | LCD projector |
| LCD panel | Size: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) Pixels: 2,304,000 (1920 x 1200) pixels |
| Light source | Laser diodes |
| Light output | 5,200 lm |
| Time until light output declines to 50% | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast ratio | 3,000,000:1 (Full On/Full O ) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 2.03-3.05 m (80–120 in) (16:10 aspect ratio) |
| Center-to-corner zone ratio | 85% |
| Lens | Fixed zoom, powered focus lens, F = 1.7, f = 2.81 mm, throw ratio: 0.235:1 (16:10 aspect ratio) (Projection distance: 1 cm [1/3 in] for 80-inch image) |
| Digital Zoom Extender | Throw ratio 0.235–0.288:15 (16:10 aspect ratio) (Corresponding value) |
| Keystone correction range | Vertical: ±3°, Horizontal: ±3° |
| Terminals | HDMI™ IN 1/IN 2: HDMI™ 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported HDMI™ OUT: HDMI™ 19-pin x 1 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal output) COMPUTER IN: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) AUDIO IN: M3 stereo mini-jack x 1 AUDIO OUT: M3 stereo mini-jack x 1 SERIAL IN: D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) LAN/DIGITAL LINK: RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/30p signal input) LAN: RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] USB (VIEWER/WIRELESS/DC OUT): USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5V, maximum 2A) |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100 V–240 V, 50/60 Hz |
| Power consumption | Maximum power consumption: 325 W (3.4–1.4 A) (330 VA) (Power consumption is 310 W at AC 200–240 V On-mode power consumption (Light Power): + NORMAL: 290 W (AC 100–120V), 280 W (AC 200–240 V) + ECO: 215 W (AC 100–120V), 205 W (AC 200–240 V) + QUIET: 210 W (AC 100–120V), 200 W (AC 200–240 V) |
| Built-in speaker | 10 W monaural |
| Filter | Included (Estimated maintenance time: approx. 20,000 hours) |
| Operation noise | 34 dB (NORMAL/ECO), 25 dB (QUIET) |
| Dimensions (W x H x D) | 495 mm x 160 mm x 421 mm (excluding feet and protrusions), 495 mm x 176 mm x 421 mm (with feet at shortest position) |
| Weight | Approx. 9.5 kg |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)12, Operating humidity: 20–80 % (no condensation |
| Applicable software | Multi Monitoring & Control Software, Logo Transfer Software, Projector Network Setup Software, Presenter Light Software for Windows®, Wireless Projector App for iOS/Android |
| Control function via LAN | PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery |
- Bảo hành: 24 tháng cho thân máy, 12 tháng hoặc 2000 giờ cho khối lăng kính (tùy điều kiện nào đến trước) và 3 tháng hoặc 1000 giờ cho bóng đèn (tùy điều kiện nào đến trước).
