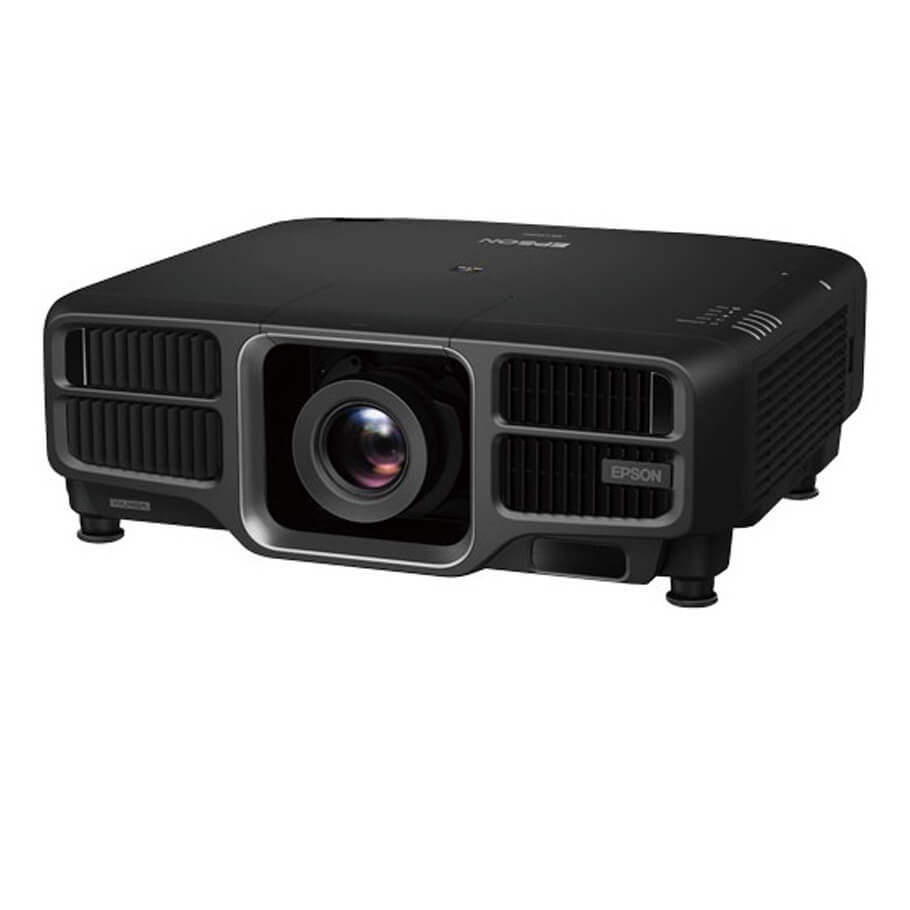

Máy chiếu EPSON EB-L1405UNL
- Công nghệ: 3LCD Size 0.76” (D10).
- Cường độ sáng: 8000 Ansi lumen.
- Độ phân giải thực: WUXGA (1920x1200).
- Độ tương phản: 2.500.000:1.
- Số màu hiển thị: 16.7 triệu màu.
- Kích thước hình ảnh: 50-300”.
- Nguồn sáng: Laser Diode.
- Tuổi thọ lên đến: 30.000h.
- Chỉnh vuông hình: chiều dọc ±45 độ, chiều ngang: ±30 độ.
- Lens shift: chiều dọc: ±67 độ, chiều ngang: ±30 độ.
- Cổng tín hiệu: VGA in x1, Video: Composite (RCA Jack) x1, Audio in x1 (Stereo mini Jack x3), DVI-D x1, HDBaseT x1, BNC (SDI) x1, HDMI x1, USB Type A, USB Type B, RS232C x1, LAN RJ45 x1, D-Sub 15Pin output x1, Audio output Stereo mini Jack x1.
- Độ ồn: 29dB (Eco).
- Kích thước máy (DxWxH): 492 x 586 x 185mm.
- Trọng lượng máy chiếu: 20.6kg.
- Không bao gồm ống kính (tùy chọn).
Thông số kỹ thuật
| TECHNOLOGY | |
| Projection System | RGB liquid crystal shutter projection system |
| LCD Panel | 0.76-inch (D10) |
| OPTICAL | |
| Zoom | 1 - 1.6 (Optical) |
| Screen Size (Standard Lens) | 50” to 300” [1.53m to 9.44m] (Zoom: Wide) 50” to 300” [2.48m to 15.10m] (Zoom: Tele) |
| Projection Distance (Standard Lens) | 100' screen 3.11m - 5m |
| Throw Ratio | 1.45 (Zoom:Wide), 2.32 (Zoom:Tele) |
| Projection Lens F Number | 1.7-2.3 |
| Projection Lens Focal Length | 24.02mm - 38.24mm |
| Focus Method | Powered |
| IMAGE | |
| Colour Light Output | 8,000 Lumens |
| White Light Output | 8,000 Lumens |
| Resolution | WUXGA |
| Native Aspect Ratio | 16:10 |
| Contrast Ratio | 2,500,000:1 |
| Light Source | Laser Diode |
| LD Input Power | 430 W |
| Keystone Correction (Standard Lens) | Vertical: ±45° Horizontal: ±30° |
| Lens Shift (Standard Lens) | Vertical: ±60° (Powered) Horizontal: ±30° (Powered) |
| CONNECTIVITY | |
| Input: Video | 1 x 5BNC |
| Input: Computer | 1 x D-sub 15-Pin (RGB) |
| Input: Digital | 1 x HDMI, 1 x SDI, 1 x DVI-D, HDBaseT |
| Input: Audio | 3 x Stereo mini |
| Input: Control | 1 x RS232c, 1 x Stereo mini (Remote) |
| Input: Network I/O | 1 x RJ45 (Art-Net), 1 x USB Type A (for optional Wireless LAN unit) |
| Input: HDBaseT | 1 x RJ45 (Art-Net) |
| Wireless Connectivity | Optional |
| Output: Video | 1 x Monitor Out (via D-sub 15-pin) |
| Output: Audio | 1 x Stereo mini |
| ADVANCED FEATURES | |
| EasyMP Network & Control | Yes |
| EasyMP Multi PC Projection | Yes |
| Wireless LAN | Optional |
| 4K Enhancement | Yes |
| Lens Position Memory | Yes (10 positions) |
| Split Screen | Yes |
| Edge Blending | Yes |
| Curved Screen Projection | Yes |
| Corner Wall Projection | Yes |
| Frame Interpolation | Yes |
| 360 Degress Projection | Yes |
| Instant Off | Yes |
| Direct Power On/Off | Yes |
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, DICOM SIM, Multi-Projection |
| GENERAL | |
| Dimensions D x W x H (Including Feet) | 492 x 586 x 211 mm |
| Weight | Approx. 20.6kg |
| Power Consumption: LD On | 625W |
| Power Consumption: Standby | 2.4W |
| Noise Level | Normal/Quiet: 35/29 dB |
- Bảo hành: 24 tháng đối với thân máy, 12 tháng hoặc 1000h cho bóng đèn (tùy điều kiện nào tới trước).
