Kiểm soát cửa ra vào SOYAL AR-727-E (AR-727H-V5)

Trang Chủ >> Khóa cửa Điện tử-Điện từ >> Kiểm soát cửa SOYAL >> Kiểm soát cửa ra vào SOYAL AR-727-E (AR-727H-V5)
Mã số:24046911

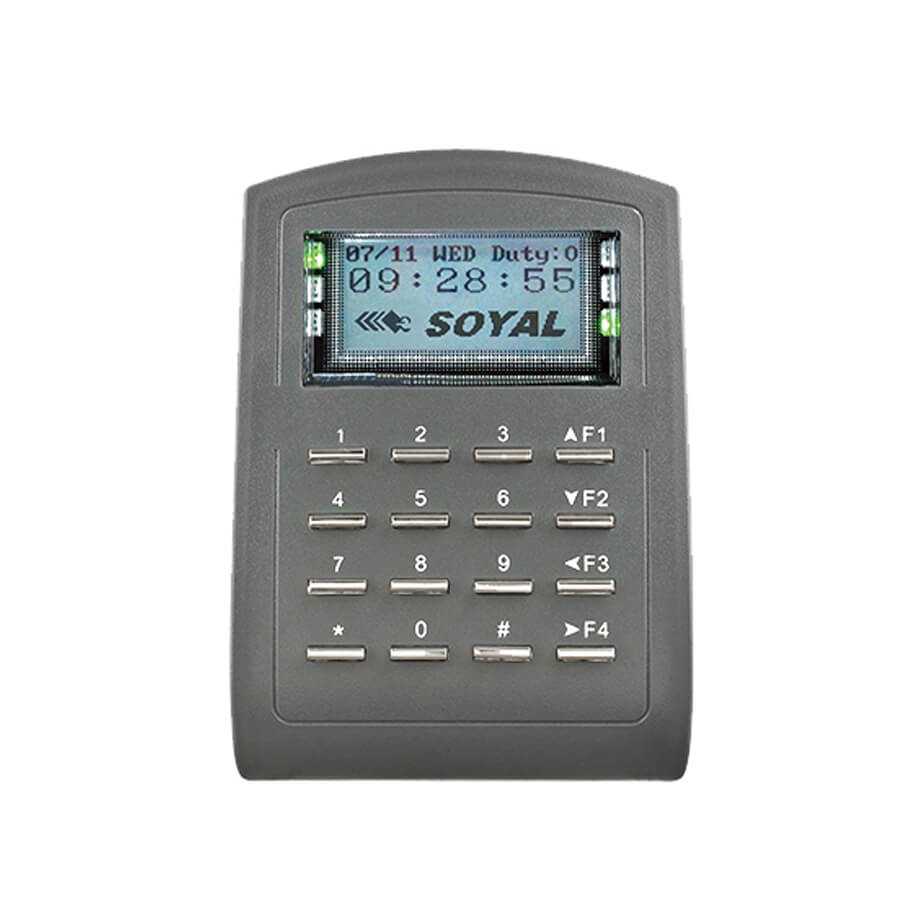

Kiểm soát cửa ra vào SOYAL AR-727-E (AR-727H-V5)

Kiểm soát cửa ra vào SOYAL AR-727-E (AR-727H-V5)

- Màn hình LCD, bàn phím mạ kim loại.

- Hoạt động độc lập (stand-alone) hoặc kết nối máy tính (PC).

- Kết nối máy tính chuẩn TCP/IP và RS-485.

- Bộ nhớ trong quản lý 16.000 user.

- Hỗ trợ mở cửa bằng mã PIN hoặc thẻ.

- Hỗ trợ 16 TimeZone, 2 Auto Open Door TimeZone.

- Điều khiển phân tầng thang máy khi kết hợp với AR-401RO.

- Các chế độ báo động khi quên đóng cửa, cửa bị mở mà không quét thẻ.

- Lưu trữ 32.000 giao dịch khi Off-Line.

- Phần mềm kiểm soát Anh/Việt.

- Đầy đủ các tính năng Access Control: Tự động mở cửa theo Time Zone, báo động khi cửa bị phá hoặc quên đóng cửa.

- Có thể áp dụng cho hệ thống chấm công.

Features

- RS-485 and TCP/IP communication interface.

- Built-in Watch Dog to prevent the halting.

- User Capacity: 16.000; Event logs: 32.000

- 2 control modes: M4/ M8.

- Access Mode: Card Only, Card or PWD, Card and PWD.

- 63 auto-open zone settings and 16 sets of Auto-Open Zone editable.

- WG port provides anti-pass back function.

- One more Exit Switch, Door contact and door output to wiegand.

- Built-in Multi-Output: Door Lock/ alarm/ arming/ duress/ security trigger signal.

- SOYAL software support for networking.

- Easily integrated with SOYAL or others access control system.

- Work attendance check: Push buttons to select Duty on/off work, Leave/Back and Overtime on/off.

- Built-in Real Time Clock & Anti-Tamper functions.

- Flexible to integrate with other equipments.

- 125kHz and 13.56MHz can be used simultaneosusly two channels.

- Patent for new type of Relay, avoid vibrating to Mis-Trigger.

- TTL & RS-285 serial output for various application and lift control.

- Built-in 16 set of Alarm and 120 days of Holiday setting.

- Menu setting witch LCD panel.

- Coordinating with softwares for further application on access control, time attendance, payroll, anddoor/sensor image-monitor function.

- Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times.

- Including the input of door contact, offering the alarm system of both door opening too long and beingforced to open.

- Intelligent to shift for standalone or networking mode while system disconnected.

- Support Fire buttons to make sure the fire happening, all doors open.

Đặc tính kỹ thuật

Model AR-727-E
User Capacity 16.000 users, 64 floors
32.000 users, 32 floors (By order)
65.000 users, 16 floors (By order)
Communication Interface RS-485/9600bps (N,8,1)
TCP/IP (By Order)
Frequency 125kHz or 13.56MHz or Dual Band (125kHz + 13.56MHz)
Installation Environment IP54
Input 2 Egress (R.T.E)/ 2 Door Sensor/ Tamper Switch
Output Door x 2/ Alarm/ Door Bell (By order) Security Output/ Arming Output
Fingerprint Template No
Other Interface WG Input
WG Ouput (By order)
UARTX2 (TTL4800 ~~ 115200)
Keypad Material Rubber
LCD Yes
Floors Capacity 64 floors
32 floors (By order)
16 floors (By order)
Time-zone 63
Dimension 126 x 92 x 46mm
Weight 220±10

- Sản xuất tại Đài Loan.

- Bảo hành: 12 tháng.

Giá: 4.511.000 VND
