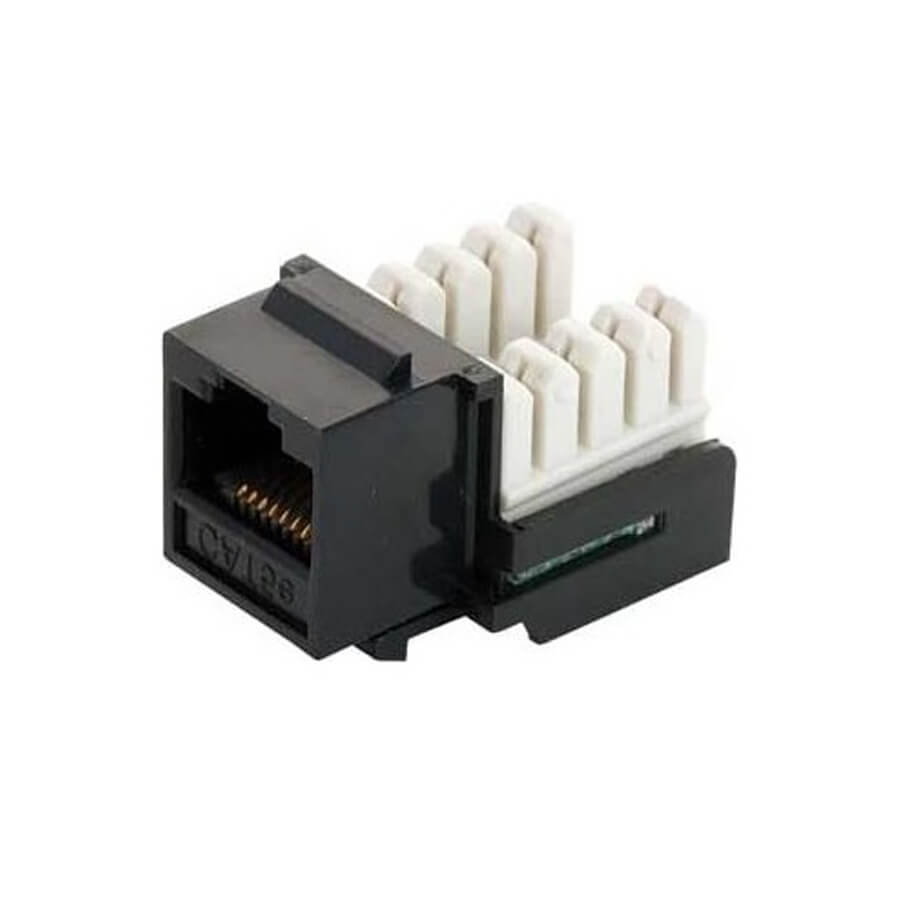

Keystone Jack VIVANCO CAT5e VCCJUNF5K
- CAT5e Unshielded Keystone Jack, Black.
- Part number: VCCJUNF5K.
Compliance
- ANSI/TIA/EIA-568-C.2 Category 5E.
- ISO 11801 2 Class D.
Features & Benefits
- Best impedance matching.
- Separation frame design facilitates the separation of the conductor.
- Connecting points adopt the special pin to effectively reduce NEXT.
- Compatible with all Vivanco faceplate and unshielded patch panel.
- With the transparent cable cover to prevent the wire falling down.
| ELECTRICAL CHARACTERISTICS | |
| Dielectric Strength | DC 1000V (AC750V) 1min, no breakdown and arcing phenomena |
| DC Resistance (Ω) | ≤300mΩ |
| Connecting Reactance (Ω) | ≤20mΩ |
| Insulation Resistance (Ω) | Under normal atmospheric pressure ≥500mΩ |
| PHYSICAL CHARACTERISTICS | |
| IDC | Phosphor bronze |
| RJ45 Pin | Phosphor bronze with 50µm gold plating |
| Plug Insertion | ≥1000 times |
| IDC Insertion Life Span | ≥250 times |
| AWG | 22~26AWG |
| Wiring | T568A/T568B |
- Hãng sản xuất VIVANCO của Germany.
- Sản xuất tại Trung Quốc.
