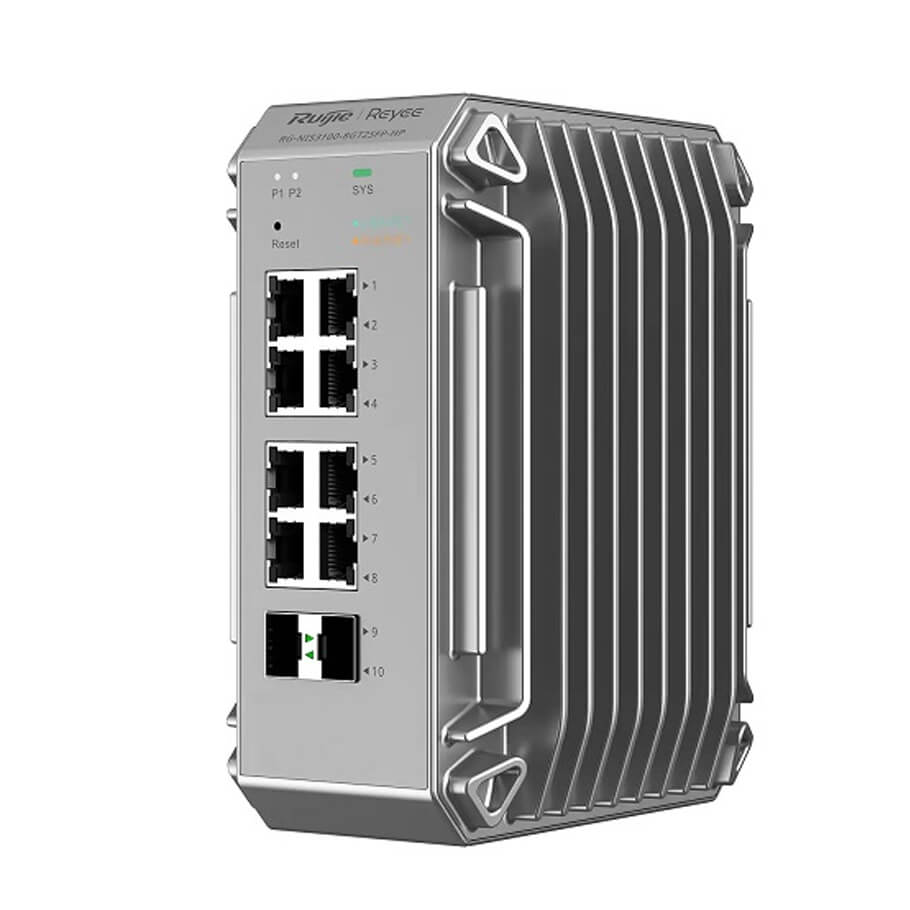

8-Port GE PoE + 2-Port SFP Managed Industrial-Grade Switch RUIJIE RG-NIS3100-8GT2SFP-HP
- Hỗ trợ 8 cổng 10/100/1000Base-T PoE, 2 cổng SFP.
- Max. PoE budget: 240W.
- PoE Power Output: Per port 56V DC, max 30 watts.
- Công suất chuyển mạch: 20Gbps.
- Tốc độ chuyển tiếp: 14.88Mpps.
- Kích thước (W x D x H): 85 x 132 x 165 mm.
Thông số kỹ thuật
| Basic | |
| 10/100/1000Base-T ports | 8 |
| SFP ports | 2 |
| PoE/PoE+ ports | 8 |
| Max. PoE budget | 240W |
| PoE Power Output | Per port 56V DC, max 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 60W (Input: 12V-20V) 120W (Input: 21V-45V) 240W (Input: 46V-56V) |
| Extend Mode | 250 meters |
| Layer Type | Layer 2 |
| Switching capacity | 20Gbps |
| Forwarding rate | 14.88Mpps |
| Packet Buffer | 4.1 Mbit |
| SDRAM | 256MB |
| MAC address table | 8,000 |
| Maximum VLAN Support | 4094 |
| Dimensions (W x D x H) | 85 x 132 x 165 mm |
| MTBF | 250,000 Hours |
| Physical Features | |
| Flash Memory | 16MB |
| Reset Button | <2 sec: System reboot >5 sec: Factory default |
| Cable Hot-swappable | Yes |
| Power Requirements | Dual 12-56V DC |
| Power Supplies | Rated voltage range: 12-56V Rated current:7A |
| Power Consumption | No PoE load:20W PoE load: 80W (Input: 12V-20V) 140W (Input: 21V-45V) 260W (Input: 46V-56V) |
| EEE | Yes |
| Fan | Fanless design |
| Acoustic Noise | <30dB (when the device works normally) |
| Operating Temperature | -40°C to +80°C (when installed in a fume hood with a blower, with the face velocity no less than 400 LFM) -40°C to +75°C (when installed in a fume hood with a blower, with the face velocity no less than 200 LFM) -40°C to +70°C (when installed in a fume hood with a blower, with the face velocity no less than 80 LFM) -40°C to +65°C (when installed in an enclosed space) |
| Storage Temperature | -40~75℃ |
| Operating Humidity | 5% to 95% RH |
| Storage Humidity | 5% to 95% RH |
| Lighting/Surge immunity (Surge) | IEC61000-4-5, Class 5 6kV |
| Electrostatic Discharge (ESD) | IEC61000-4-2, Level 3 Air Discharge: 8KV Contact Discharge: 6KV |
| Enclosure | IP40 aluminum casing |
| Anti-corrosion | Conformal Coating |
| Installation | DIN-rail Mounting Wall-mount |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1,Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure.Alarm relay current carry ability: 1A@30V DC |
| LED Indicator | System: Power 1(Green) Power 2(Green) SYS(Green) Per RJ45 POE+ Ports: PoE-in-Use(Orange) LINK/ACT(Green) Per SFP Interface: LINK/ACT(Green) |
| Operating Altitude (meters) | -500 to 2000m |
| Certificate | CE, RoHS |
| EMC | IEC/EN 61000-4-2 IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, Level3 IEC/EN 61000-4-3 IEC 61000-4-3 RS:10V Level3 IEC/EN 61000-4-4 IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, Level3 IEC/EN 61000-4-5 IEC 61000-4-5 Surge: Power: 4 kV(with industrial power supply module); Signal: 6 kV, Level 4 IEC/EN 61000-4-6 IEC 61000-4-6 CS:10V Level3 IEC/EN 61000-4-8 IEC 61000-4-8 10A/m Level3 |
- Bảo hành: 5 năm.
