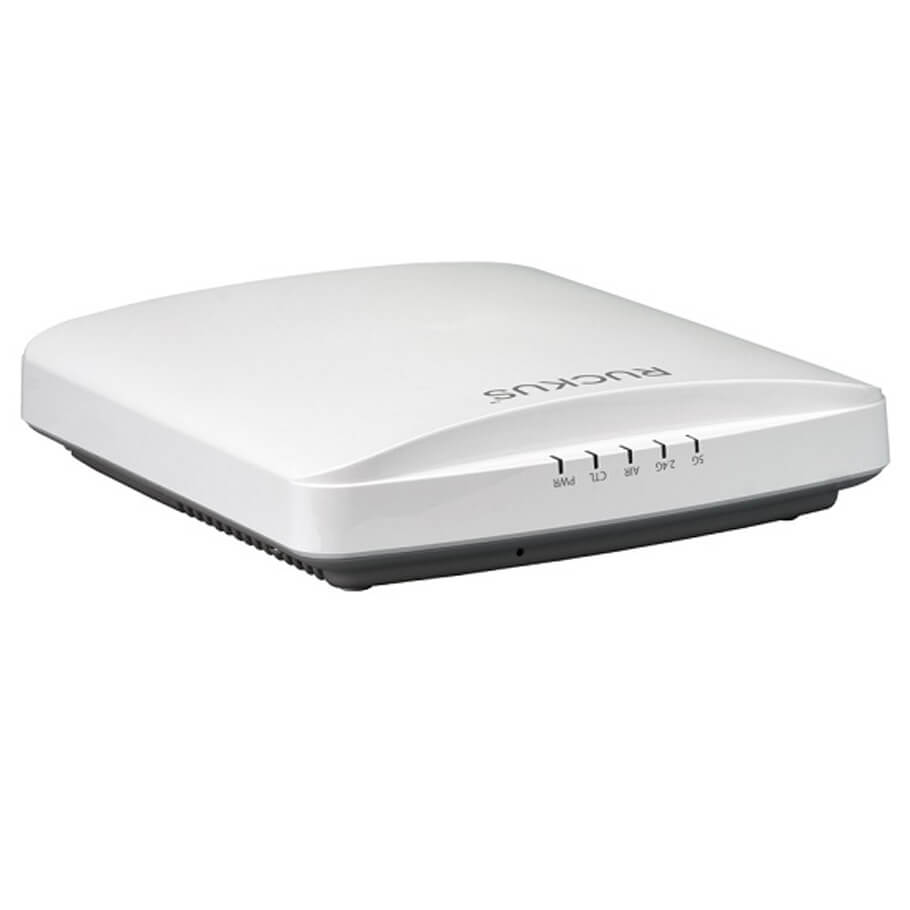

Indoor Wi-Fi 6 Access Point RUCKUS R550 (9U1-R550-WW02)
- Stunning Wi-Fi performance: Mitigate interference and extend coverage with patented BeamFlex®+ adaptive antenna technology utilizing several directional antenna patterns.
- Serve more devices: Connect more devices simultaneously with four MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance.
- Converged Access Point: Allows customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expand to any future wireless technologies through the USB port.
- Automate optimal throughput: ChannelFly® dynamic channel technology uses machine learning to automatically the least congested channels. You always get the highest throughput the band can support.
- Better mesh networking: Reduce expensive cabling, and complex mesh configuration by checking a box with SmartMesh wireless meshing technology to dynamically create selfforming, self-healing mesh networks.
Đặc tính kỹ thuật
| WI-FI | |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Supported Rates | - 802.11ax: 4 to 1774 Mbps - 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) - 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) - 802.11a/g: 6 to 54 Mbps - 802.11b: 1 to 11 Mbps |
| Supported Channels | - 2.4GHz: 1-13 - 5GHz: 36-64, 100-144, 149-165 |
| MIMO | - 2x2 SU-MIMO - 2x2 MU-MIMO |
| Spatial Streams | - 2 streams SU/MU MIMO 5GHz - 2 streams SU/MU MIMO 2.4GHz |
| Radio Chains and Streams | - 2x2:2 (5GHz) - 2x2:2 (2.4GHz) |
| Channelization | 20, 40, 80MHz |
| Security | - WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE - WIPS/WIDS |
| Other Wi-Fi Features | - WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v - Hotspot - Hotspot 2.0 - Captive Portal - WISPr |
| RF | |
| Antenna Type | - BeamFlex+ adaptive antennas with polarization diversity - Adaptive antenna that provides up to 64 unique antenna patterns per band |
| Antenna Gain (max) | Up to 3dBi |
| Peak Transmit Power (Tx port/chain + Combining gain) | - 2.4GHz: 26dBm - 5GHz: 25dBm |
| Frequency Bands | - ISM (2.4-2.484GHz) - U-NII-1 (5.15-5.25GHz) - U-NII-2A (5.25-5.35GHz) - U-NII-2C (5.47-5.725GHz) - U-NII-3 (5.725-5.85GHz) |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | - 2.4GHz: 574 Mbps - 5GHz: 1200 Mbps |
| Client Capacity | Up to 512 clients per AP |
| SSID | Up to 31 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | - BeamFlex+ - Polarization Diversity with Maximal Ratio Combining (PDMRC) |
| Wi-Fi Channel Management | - ChannelFly - Background Scan Based |
| Client Density Management | - Adaptive Band Balancing - Client Load Balancing - Airtime Fairness - Airtime-based WLAN rborbࢢz-ࢢon |
| SmartCast Quality of Service | - QoS-based scheduling - Directed Multicast - L2/L3/L4 ACLs |
| Mobility | SmartRoam |
| Diagnotic Tools | - Spectrum Analysis - SpeedFlex |
| NETWORKING | |
| Controller Platform Support | - SmartZone - ZoneDirector - Unleashed - Cloud - Standalone |
| Mesh | SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | IPv4, IPv6, dual-stack |
| VLAN | - 802.1Q (1 per BSSID or dynamic per user based on RADIUS) - VLAN Pooling - Port-based |
| 802.1x | Authenticaor & Supplicant |
| Tunnel | L2TP, GRE, Soft-GRE |
| Policy Management Tools | - Application Recognition and Control - Access Control Lists - Device Fingerprinting - Rate Limiting |
| IoT Capable | Integrated BLE and ZigBee (1 radio, switchable) |
| PHYSICAL INTERFACES | |
| Ethernet | - 2 x 1GbE Ethernet ports - Power over Ethernet (802.3af/at) with Category 5/5e/6 cable - LLDP |
| USB | 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | 17.60cm (L), 19.02cm (W), 4.78cm (H) |
| Weight | 0.562 kg |
| Mounting | - Wall, acoustic ceiling, desk - Secure bracket (sold separately) |
| Physical Security | - Hidden latching mechanism - Kensington lock - Bracket (902-0120-0000) |
| Operating Temperature | 0ºC (32ºF) - 50ºC (122ºF) |
| Operating Humidity | Up to 95%, non-condensing |
