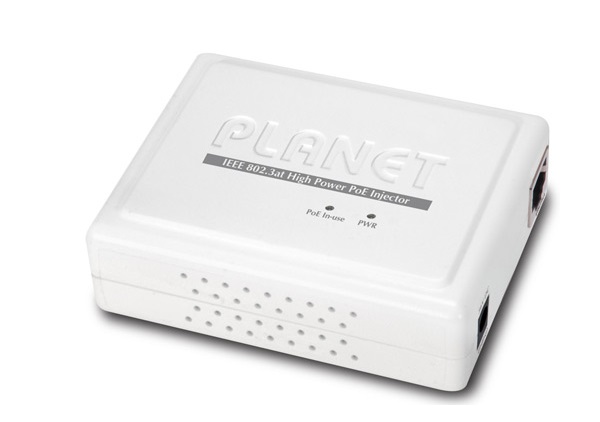

IEEE 802.3at Gigabit High PoE Injector PLANET POE-161
- The POE-161 is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet Injector with maximum up to 30 watts of power output over Ethernet cables. It is designed specifically to fill the demand of the growing higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen/video and voice over IP (VoIP) telephones, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need higher power to function normally. The POE-161 High Power Injector is an ideal solution to delivering data and power to network devices directly via the RJ-45 Port interface without the need of installing extra power outlets and electrical cabling.
RJ-45 Interface
- 2-Port RJ-45 interfaces: 1-Port Data + Power output, 1-Port Data input.
- 1 DC 56V input power socket.
PoE
- Complies with IEEE 802.3at Gigabit High Power over Ethernet standard, Mid-Span PSE.
- Provides DC 56V power over RJ-45 Ethernet cable to devices with Ethernet port.
- Provides PoE power to 1 IEEE 802.3at compliant device.
- Supports PoE Power up to 30 watts for PoE port.
- Auto-detects PoE IEEE 802.3at equipment, protecting the devices from being damaged by incorrect installation.
- Remote power feeding up to 100m.
- IEEE 802.3af Splitter devices compatible.
Hardware
- Plastic case.
- LED indicators for Power LED and PoE In-use.
Standard Compliance
- IEEE 802.3 10Base-T.
- IEEE 802.3u 100Base-TX.
- IEEE 802.3ab 1000Base-T.
- IEEE 802.3at Power over Ethernet.
- FCC Part 15 Class A, CE.
Specifications
| Hardware Specifications | |
| Hardware Version | version 2 |
| Interface | 'Data' Input Port: 1 x RJ-45 STP 'PoE (Data+Power)' Output Port: 1 x RJ-45 STP DC 56V Input Power Socket: 1 |
| LED Indicator | System: Power x 1 (Green) PoE Port: PoE in Use x 1 (Green) |
| Network Cable | 10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft) 1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 95 x 70 x 25 mm |
| Weight | 83g |
| Unit Input Voltage | DC 56V, 0.53A |
| Power Requirements | 100-240V AC, 50/60Hz |
| Power Consumption | 30 watts (max). |
| Number of devices can be powered | 1 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Gigabit Power over Ethernet standard / Mid-Span PSE |
| PoE Power Output | DC 56V / 30 watts |
| PoE Power supply Type | Mid-Span |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
- Bảo hành: 12 tháng.
