0916 287 068 Gigabit LH Mini-GBIC SFP Transceiver Cisco MGBLH1

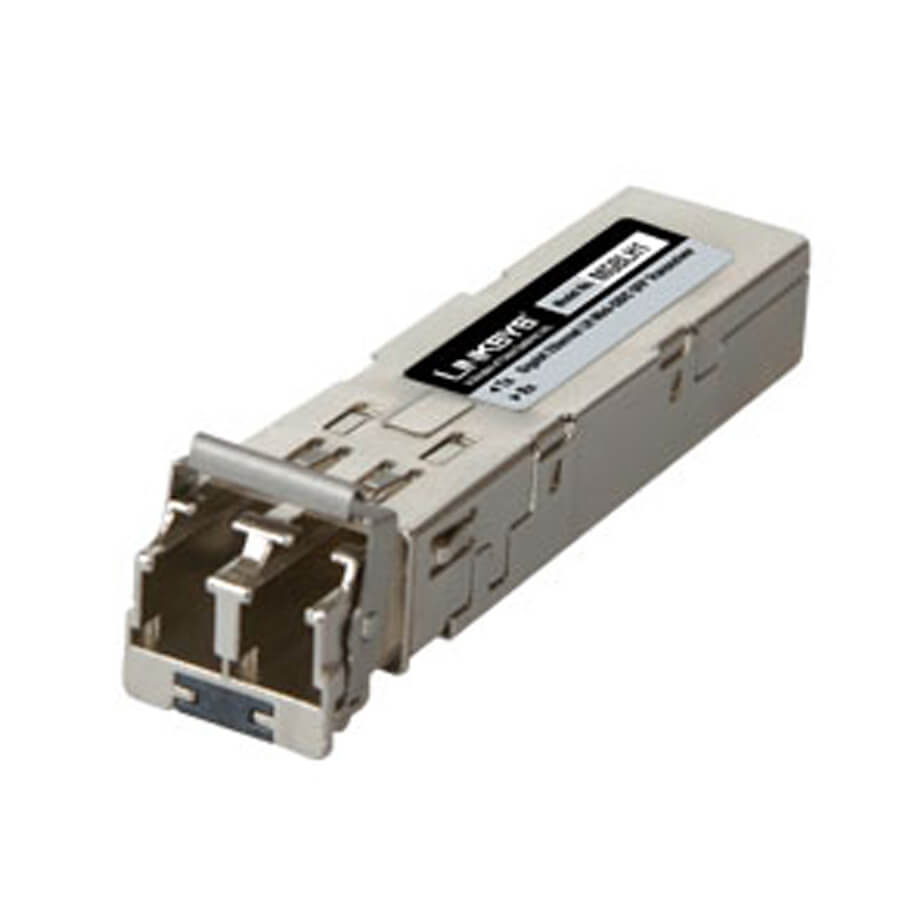

Gigabit LH Mini-GBIC SFP Transceiver Cisco MGBLH1
- 1000BASE-LH SFP transceiver, for single-mode fiber, 1310 nm wavelength, support up to 40 km.
Features
- Built-in spring latch for easy module removal
- Hot swappable
- Low insertion-loss duplex LC receptacle
- Low electromagnetic interference (FCC Part 15, Class B) for clear communications
- Meets FDA and International Electrotechnical Commission (IEC) eye safety standards
|
Specifications |
|
|
Media |
Single-mode fiber (SMF) |
|
Application |
1000BASE-LH |
|
Connector type |
Duplex LC |
|
Wavelength typical (Tx) |
1310 nm |
|
Wavelength range (Rx) |
1310 nm |
|
Performance |
|
|
Maximum distance |
up to 40 km |
|
Average output power |
-4 dBm to 0 dBm |
|
Receiver sensitivity |
-25 dBm (typ) |
|
Receiver overload |
-3 dBm |
|
Environmental |
|
|
Dimensions W x H x D |
13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) |
|
Unit weight |
0.018 kg (0.63 oz. ) |
|
Power |
1W (max) |
|
Operating temperature |
32º to 158ºF (0º to 70ºC) |
|
Storage temperature |
-40º to 185ºF (-40º to 85ºC) |
|
Operating humidity |
10% to 85% noncondensing |
|
Storage humidity |
5% to 90% noncondensing |
|
Standards |
|
|
Compliance |
FCC Part 15 Class B |
|
EN55022 Class B (CISPR 22B) |
|
|
VCCI Class B |
|
|
Safety |
FDA 21 CFR 1040.10 and 1040.11 |
|
EN60950, EN (IEC) 60825-1,2 |
|
- Bảo hành: 12 tháng.
