0916 287 068 Flash Light Siren Beam TAKEX PBS-15T

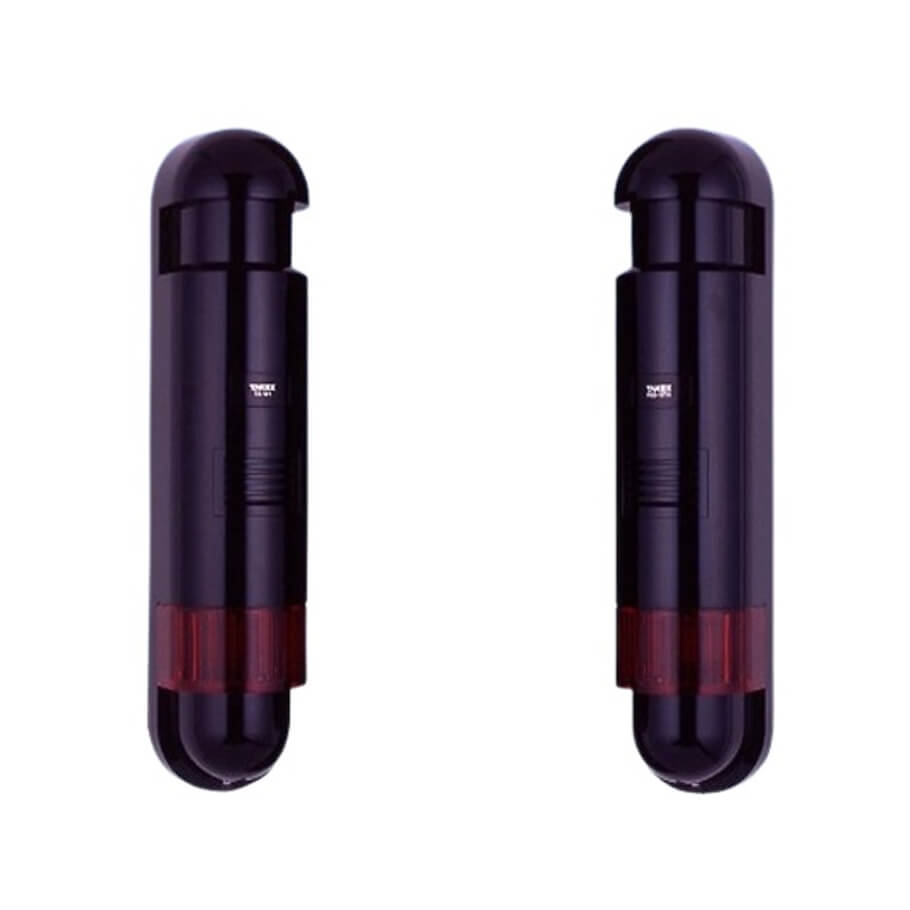

Flash Light Siren Beam TAKEX PBS-15T
- Beam sensor 15m with siren, flash light.
- PBS-15T is an infrared beam sensor which consists of a transmitter and a receiver with built-in flash light and siren.
- The unit is designed to intimidate intruders by initiating high-intensity LED flash lights and electronic sound siren when detection.
- Volume of electronic siren is adjustable between silence and 90dB Max.
Feature
- Day light: With the day light setting, siren sound can be controlled by the illuminance of the surrounding environment.
- High reliability
+ The unit is equipped with AND detection system which will offer more reliable protection. AND detection system will issue an alarm signal only when twin beams are simultaneously interrupted.
+ It will reduce nuisance alarms caused by birds, little animals or falling leaves.
- Functions
+ Detection distance is 50 ft (15m).
+ Frequency is selectable for L or H to avoid cross talk.
+ Response time is adjustable between 0.05 sec. and 0.7 sec.
- Other features
+ Beam alignment is adjustable horizontally by up to +/-90 degrees.
+ Flash lights light on during interruption time + Delay time (1min.).
+ AGC circuit.
+ Frost proof cover.
Thông số kỹ thuật
| Description | Flash light siren beam |
| Model | PBS-15T |
| Detection distance | Outdoor 50' (15m) or less (Indoor 100' (30m)) |
| Max. arrival distance | Outdoor Tenfold 500' (150m) Indoor Fivefold 500' (150m) |
| Infrared beam | Double modulation pulsed beam by LED |
| Detection system | Simultaneous breaking of 2 beams |
| Response time | 0.05sec. to 0.7sec. variable (Standard: 0.05sec.) |
| Supply voltage | 10V to 18V DC (Non-polarity) |
| Current consumption | Transmitter: 24mA / Receiver: 250mA |
| Day light | Recognize it is night when surrounding environment is darker than the set illuminance. |
| Alarm output | Dry contact relay output NO/NC selectable Contact: 30V AC/DC 0.5A (Resistive load) Contact action: Interruption time (Min. 2sec.) |
| Tamper output | Dry contact output NC Contact capacity: 30V AC/DC 0.1A |
| Flash light output | Color: Red Interruption time + Delay time (1min.) |
| Siren output | Volume: Silence to approx. 90dB/1m Variable with a volume Siren timer: 5sec./20sec. selectable (One-shot operation) |
| Alarm LED | Red LED (Receiver) Lights when an alarm is initiated. |
| Attenuation LED | Red LED (Receiver) Lights when beam is attenuated. |
| Transmitting LED | Green LED (Transmitter) Lights when beam is transmitted. |
| Functions | Frequency selectable for L or H, AGC circuit, Frost proof cover |
| Ambient temperature range | -13F to +140F (-25C to +60C) |
| Beam alignment adjustment | Horizontal: +/-90 degrees |
| Installation | Indoor/Outdoor |
| Wiring | Terminals |
| Weight | Transmitter: 560g Receiver: 620g |
| Appearance | PC resin (wine red) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
