Dual Input Module with SCI NITTAN EVA-DIP-SCI

Trang Chủ >> Báo cháy-Báo trộm >> Báo cháy NITTAN >> Dual Input Module with SCI NITTAN EVA-DIP-SCI
Mã số:13236761

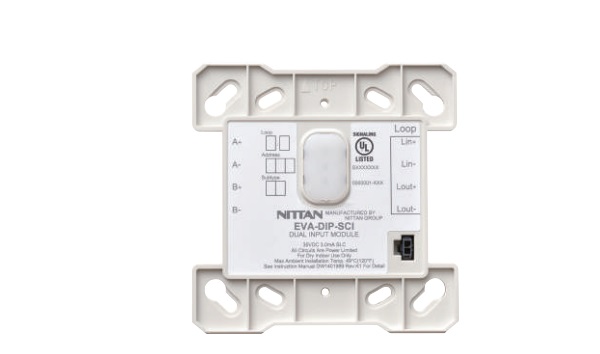

Dual Input Module with SCI NITTAN EVA-DIP-SCI

Dual Input Module with SCI NITTAN EVA-DIP-SCI

- EVA-DIP-SCI Dual Input Module with Short Circuit Isolator is intended for use in addressable two wire systems. The module monitors and transmits the status (normal, open, short, or active) of devices equipped with NC/NO dry contacts to a control panel. The initiating device circuit (IDC) can be wired on Class A (Style D & E) or Class B (Style B & C).

- Loop powered.

- Provides two interfaces to NC/NO contact devices.

- SCI function.

- Supports Class A and Class B wiring.

- SEMS screws for easy wiring.

- Status indicator LED.

- Address settable from 001 to 254 by a dedicatedprogrammer.

- Single loop address.

- Low standby current (3mA).

- Mounts to optional 4-inch square junction box.

Thông số kỹ thuật

Model  EVA-DIP-SCI
SLC Applied Voltage Rated Range 20 to 38 VDC
SLC Current Consumption Standby 3.0 mA
Activated 16.9 mA (max)
SLC Line Impedance Up to 50 Ω
Number of IDC (Initiating Device Circuit)  1 x Class A or 2 x Class B
IDC Circuit Rating 15 VDC, 2.2 kΩ, 6.8 mA (max)
IDC Line Impedance  Up to 50 Ω
EOL Device  RE-10 k (10 kΩ, 1/4 W) (Included)
2.2 kΩ resistance required for each dry contact switch in subtype
setting 7, 8, 9 and 10
SCI on Resistance 0.2 ohms (max)
SCI Fault Detection Threshold 10V (min)
SCI Isolation Current 22 mA (max)
Visual Indicator (Status LED) Polling LED (GREEN)
Input LED (RED)
SCI LED (YELLOW)
Ambient Installation Temperature  0°C to 49°C (32°F to 120°F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Max Relative Humidity Up to 93 % RH, non-condensing
Environment Indoor dry use only
Max quantity per loop 127 units
Terminal Screw AWG12 to 22
Address Setting EVA-AD2 Address Programmer
Dimensions H 37.6 mm x W 69.8 mm x D 17.2 mm
Weight Approximately 34 g
Conformity UL864

- Bảo hành: 12 tháng.

Giá: 1.365.000 VND
