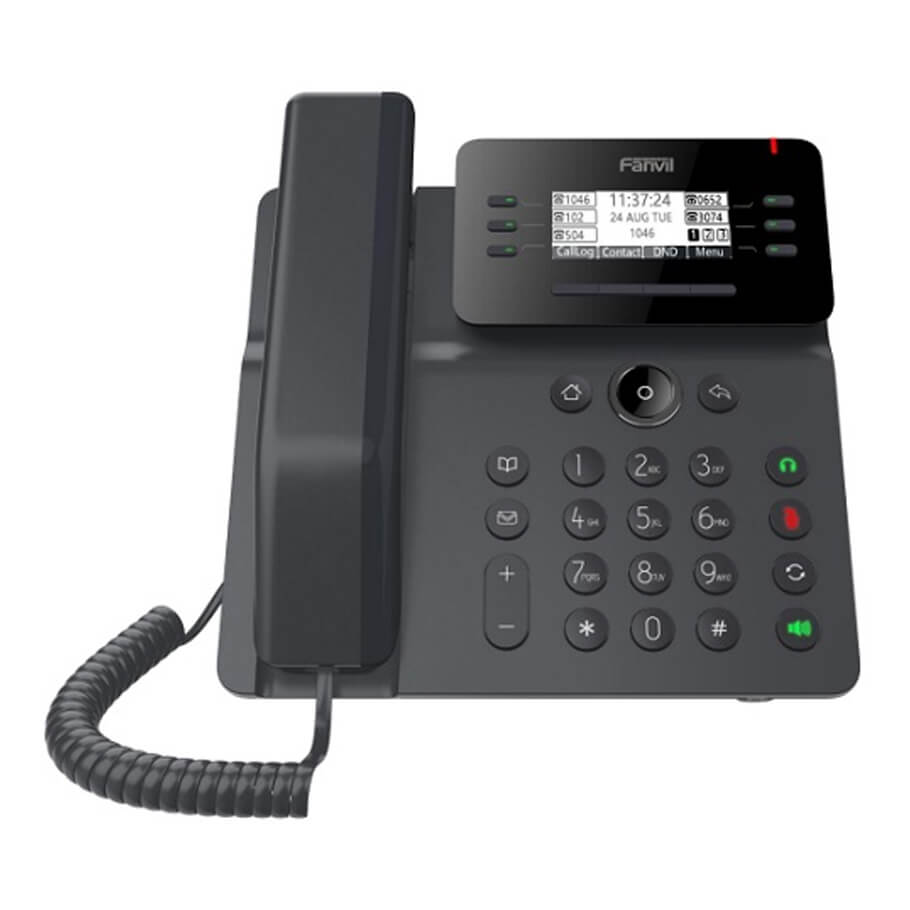

Điện thoại IP Wifi Fanvil V62
- Sử dụng 6 tài khoản SIP, SIP hotspot.
- 2 Cổng Gigabit kép 10/100/1000, PoE tích hợp.
- Màn hình 2.7 inch graphical LCD.
- Hỗ trợ hiển thị số, jack cắm tai nghe RJ9, đèn báo voiceamail.
- Âm thanh HD, danh bạ lưu 1000 số, nhật ký call in/out 600.
Đặc tính kỹ thuật
| Generic | - 6 SIP lines - HD voice - PoE enabled - Intelligent DSS keys - 2.7-inch (192x64) graphical LCD - Handset / hands-free / headset mode - Desktop Stand / Wall-mounted (need an additional wall hanging parts) - Optional external power supply |
| Phone Features | - Local Phonebook (1000 entries) - Remote Phonebook (XML/LDAP, 1000 entries) - Call logs (In/out/missed, 1000 entries) - Blocked List/Allowed List - Screen saver - Voice Message Waiting Indication (VMWI) - Programmable DSS/Soft keys - Network Time Synchronization - Support Bluetooth headset (Via BT dongle BT20) - Support Wi-Fi Dongle (Via WF20) - Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable) - Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable) - Support Recording(through server) - Action URL / Active URI - uaCSTA - Dial Plan - SIP Hotspot - Multicast - Action Plan - Group listening |
| Call Features | - Call out / Answer / Reject - Mute / Unmute (Microphone) - Call Hold / Resume - Call Waiting - Intercom - Caller ID Display - Speed Dial - Anonymous Call (Hide Caller ID) - Call Forwarding (Always/Busy/No Answer) - Call Transfer (Attended/Unattended) - BLF - Call Parking/Pick-up (Depending on server) - Redial - Do-Not-Disturb - Auto-Answering - Voice Message (With server) - 6-way Conference - Hot Line - Hotdesking |
| Audio | - HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response) - HAC handset - Wideband ADC/DAC 16KHz Sampling - Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC - Wideband Codec: G.722, Opus - Full-duplex Acoustic Echo Canceller (AEC) - Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC) - Packet Loss Concealment (PLC) - Dynamic Adaptive Jitter Buffer - DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO) - VQM voice quality monitoring |
| Network | - Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass - IP Mode:IPv4/IPv6/IPv4&IPv6 - IP Configuration: Static IP / DHCP / PPPoE - Network Access Control: 802.1x - VPN: L2TP / OpenVPN - VLAN - LLDP - CDP - QoS - RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
| Protocols | - SIP2.0 over UDP/TCP/TLS - RTP/RTCP/SRTP - STUN - DHCP - CDP - LLDP - PPPoE - 802.1x - OpenVPN - SNTP - FTP/TFTP - HTTP/HTTPS - TR-069 - AES128 & AES256 |
| Deployment & Management | - Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069 - Web Management Portal - Web-based Packet Dump - Configuration Export / Import - Phonebook Import/Export - Firmware Upgrade - Syslog |
| Physical Specifications | l LCD:2.7-inch (192x64) graphical LCD with backlight '- Keypad: 37 keys, including - 6 DSS keys with LED indicator light + 6 Function keys (Contact, Hold, MWI, Mute, Headset, Redial) + 4 Soft-keys + 4 Navigation keys + 1 OK key + 1 Return key + 12 Standard Phone Digits keys + 2 Volume Control keys, Up/Down + 1 Hands-free key - HD Handset (RJ9) x1 - Standard RJ9 Handset Wire x1 - 1.5M CAT5.E Ethernet Cable x1 - Desk Stand x1 - Status Indicator Light x1 (Red) - RJ9 Port x2: Handset x1, Headset x1 - RJ45 Port x2: Network x1, PC x1 (Bridged to Network) - USB2.0 Port x1: Standard A, Connect with Flash Driver&USBheadset and USB dongle - Security lock port x1 - Power: DC5V/1A or PoE - Working Temperature: 0~45℃ - Working Humidity: 10~95% - Installation: + Desktop Stand + Wall-mounted (need an additional wall hanging parts) - Color: Gunmetal - Device Dimensions:204x202x31mm - Gift Box Dimensions: 307x258x71 mm - Outer CTN Dimensions: 5536x380x327 mm(10 PCS) |
- Bảo hành: 24 tháng.
