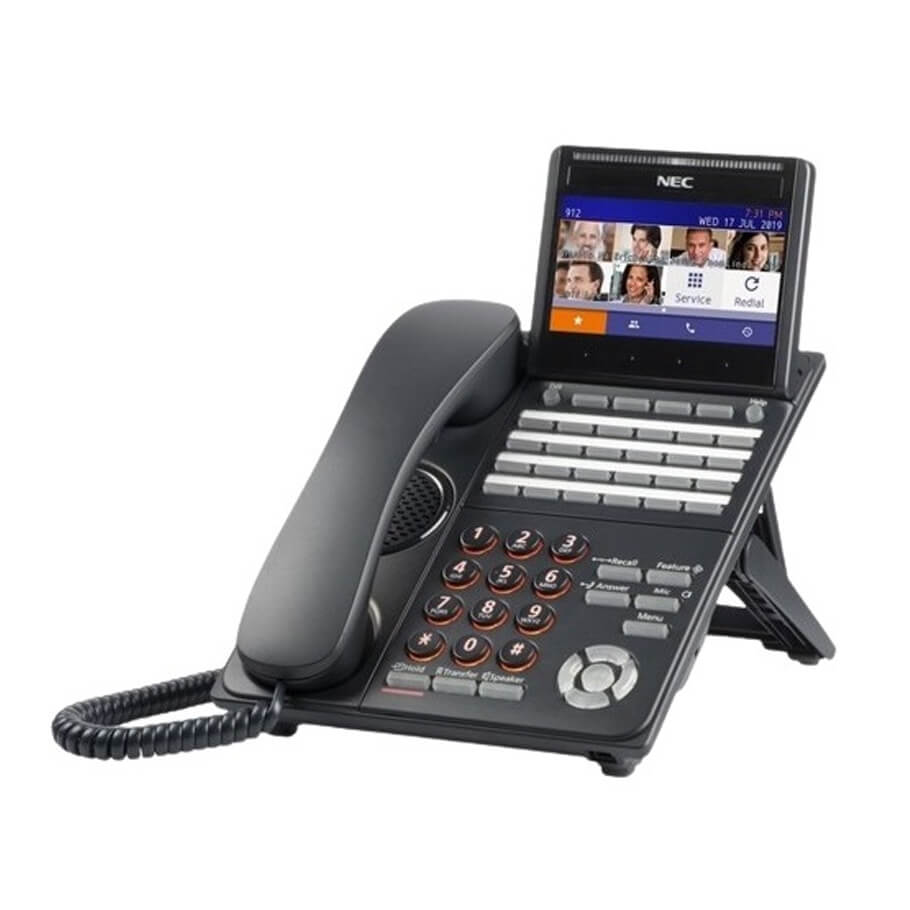

Điện thoại IP NEC DT930 ITK-24CG-2P(BK)TEL
- Điện thoại IP NEC Standard SIP
- Sử dụng trên tổng đài NEC
- Full colour 4.3” LCD
- 24-key (32 with 8LK key extension unit)
- Backlit LCD and keypad
- Standard button layout
- Multi-colour MWI
- Hands-free, full duplex
- Adjustable stand - 5 steps
- Headset support, optional EHS support
- Soft keys/LCD prompts
- Navigation cursor & Directory dial key
- Network support 10/100/1G Ethernet
- Wideband audio support
- VoIP encryption
- Wall mountable
Specifications
| Model | ITK-24CG-2P(BK)TEL |
| Characteristics | |
| Version | 24 button |
| Colour | Black |
| Dimensions (W×H×D) | 181x254x152 mm |
| Weight | 1kg |
| Power Feeding | PoE Class 2 (5.7W)/ AC Adapter (Local Adapter) |
| Adjustable stand | |
| Tilt Angle | 5 Steps (25°, 32°, 39°, 46°, 55°) |
| LCD Display | |
| LCD | 4.3” Colour Resolution: 480x272 |
| LCD Backlit | Yes |
| Home Screen UI | Classic & Portal |
| Wallpaper | Yes |
| Custom Colour Font | Yes |
| Screen Saver | Yes |
| Turn Off Display | Yes |
| Security Lock | Yes |
| Keys | |
| Ten Key Backlit | Yes (Orange) |
| Soft Key | 4 keys |
| Programmable Key | 24 |
| Cursor Key | Yes |
| Incoming Call Lamp | |
| Incoming LED | Wide Size, 7 Colours (Red, Green, Blue, Yellow, Cyan, Magenta, White) |
| Network | |
| LAN | 2-Port, 10BASET/100BASETX/ 1000BASE-T, Full-Duplex/ Half-Duplex, Auto Negotiation/ Fixed (Except 1000BASE-T) |
| IP Addressing | Sets via DHCP Server/Sets Statically |
| QoS | ToS (IP Precedence, Diffserv) |
| Support IP Version | IPv4 |
| DHCP | Yes |
| Tag VLAN | Yes |
| PC port VLAN | Yes |
| VPN | L2TP/Ipsec |
| Security | SIP/RTP encryption |
| LAN Port Speed | 10/100/1000 Mbps |
| PC Port Speed | 10/100/1000 Mbps |
| Connections | |
| Bottom Option | ADA/WFA |
| Side Option | 8LK-K/DSS |
| Headset Jack | RJ9 |
| Physical Port | |
| Personal Directory | Yes |
| System Directory | switch dependent |
| Call History | switch dependent |
| Sound | |
| Download Ringtone | Yes |
| Handset | Wide Band (inc. G722 CODEC) |
| Handsfree | Full Duplex |
| Download Voice Confirmation Tone | 16bit-PCM WAV file |
- Thương hiệu sản phẩm NEC của Nhật Bản.
- Xuất xứ: Thái Lan/Trung Quốc.
- Bảo hành: 12 tháng.
