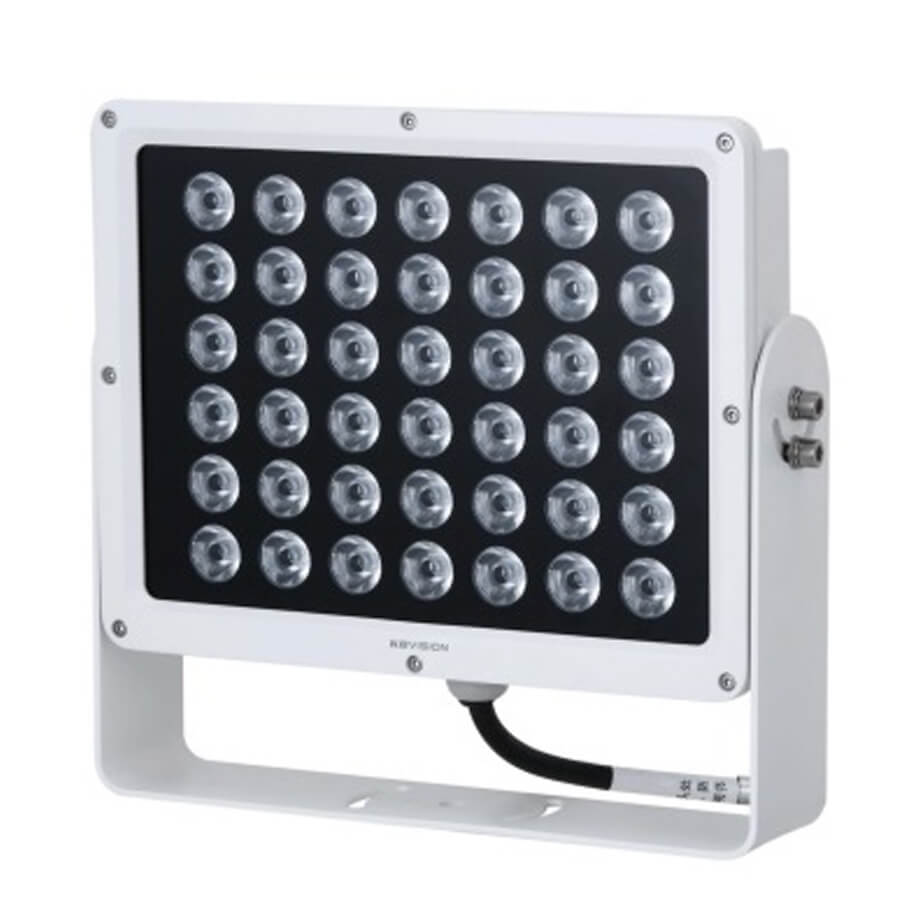

Đèn trợ sáng cho camera giao thông KBVISION KX-F42FL
- Loại đèn: LED ánh sáng ấm 3500K.
- Tầm xa chiếu sáng: 26m.
- Khả năng chiếu sáng: 3 làn đường.
- Chức năng: Strobe, Flashlight.
- Đồng bộ chụp ảnh, đồng bộ quay video.
- Trọng lượng: 3.6kg.
- Nguồn cấp: 100-240VAC.
Thông số kỹ thuật
| Model | KX-F42FL |
| Basic | |
| Illuminator Type | LED |
| Light Source | Visible light |
| Color Temperature | 3500 K |
| Center Illuminance | < 40 lx (20 m away from the illuminator) |
| Trigger Mode | Pulse width trigger/edge trigger |
| Spot Coverage | 3 standard lane (installation height: 6m, capture distance: 26m) |
| Illumination Distance | 16~26m |
| Flash Interval | ≤ 60ms |
| LED | |
| Frequency | 50/100Hz |
| Number of LED | 42 (imported white LED) |
| Luminous Flux | 1800lm |
| CRI | >65 |
| Angle of LED Lens | 30° × 10° |
| Function | |
| Day/Night | Yes |
| Working Mode | Strobe, flashlight |
| Status Display | Supports remotely displaying the running or fault status of the illuminator on the the camera (Dahua traffic cameras only) web interface |
| Power Detection | Displays real-time power of the illuminator |
| Temperature Detection | Displays real-time temperature of the illuminator |
| Brightness Adjustment | levels 1-20 can be set |
| External Port | |
| I/O | 1 |
| Flash | 1 |
| Strobe Input | 1 |
| RS-485 | 1 |
| General | |
| Power Supply | 100-240VAC |
| Power Consumption | ≤ 60W |
| Operating Temperature | -40°C ~ +70°C |
| Protection Grade | IP66 |
| Dimensions | 258 x 250,9 x 127 mm |
| Net Weight | 3.6kg |
- Bảo hành: 24 tháng.
