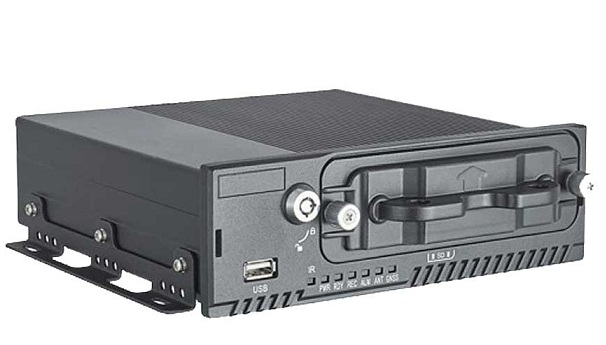

Đầu ghi hình di động trên xe HDPARAGON HDS-M5504HM-T/GLF/WI58(1T)
- Hỗ trợ 4 camera TVI HD720p.
- Hỗ trợ mở rộng 4 camera IP thông qua PoE router.
- Hỗ trợ cổng audio 1 in/ 1 out.
- Hỗ trợ Hik-connect.
- Hỗ trợ GPS.
- Hỗ trợ khay HDD chống rung lên đến 2TB HDD capacity.
- Hỗ trợ 1 khe thẻ nhớ SD/SDHC dự phòng khi ổ cứng bị hư hại.
- Hỗ trợ cổng báo động.
- Built-in GPS module.
- Sử dụng nguồn 9~32VDC.
* GLF: Hỗ trợ 4G
* WI58: Hỗ trợ Wi-Fi 5.8G (802.11AC) lên đến 30Mbps
Đặc tính kỹ thuật
| Model | HDS-M5504HM-T/GLF/WI58(1T) |
| Video/Audio input | |
| Analog camera | 4 analog cameras with up to 720p resolution |
| IP camera | 4 IP camera with up to 720p resolution (extendable via PoE switch) |
| Video/Audio output | |
| Video Output | Main output: 1, integrated in EXT.DEV interface VGA: 1 |
| Audio output | 1 |
| Encoding/Decoding parameters | |
| Video compression | H.264 and H.264+ |
| Encoding resolution | Main stream: 720p/WD1/4CIF. Sub-Stream: 4CIF/2CIF/CIF |
| Frame rate | PAL: 1 to 25fps; NTSC: 1 to 30fps |
| Audio compression | G.711 |
| Audio bitrate | 16 Kbps |
| Dual Streams | Supported |
| Hard Disk | |
| Type | 1 × 2.5 inch hard disk (HDD/SSD) |
| Capacity | Up to 2 TB for each disk |
| Wireless Network | |
| 3G/4G Dialing | Optional pluggable 3G (WCDMA) and 4G (FDD-LTE) |
| Wi-Fi | 802.11AC module, 5.8GHz and 2.4GHz supported |
| Positioning | |
| Type | Built-in |
| Positioning Module | GPS (Global Positioning System) |
| External interface | |
| Network interface | 1 x 10M/100M RJ45 Ethernet interface |
| Serial interface | 2 x RS-232, 1 x RS-422 (integrated in EXT.DEV interface) |
| USB port | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 of 5-pin aviation connector |
| SD Card | 1 SD/SDHC/SDXC slot, up to 256 GB |
| General | |
| Operating method | Mouse, IR remote control, and Web control |
| Power Supply | Input: 9 to 32 VDC; Output: 12 VDC/1 A, 5 VDC/1 A |
| Dimensions | 206 × 219 × 60 mm |
| Weight | 1.6kg |
- Bảo hành: 24 tháng.
