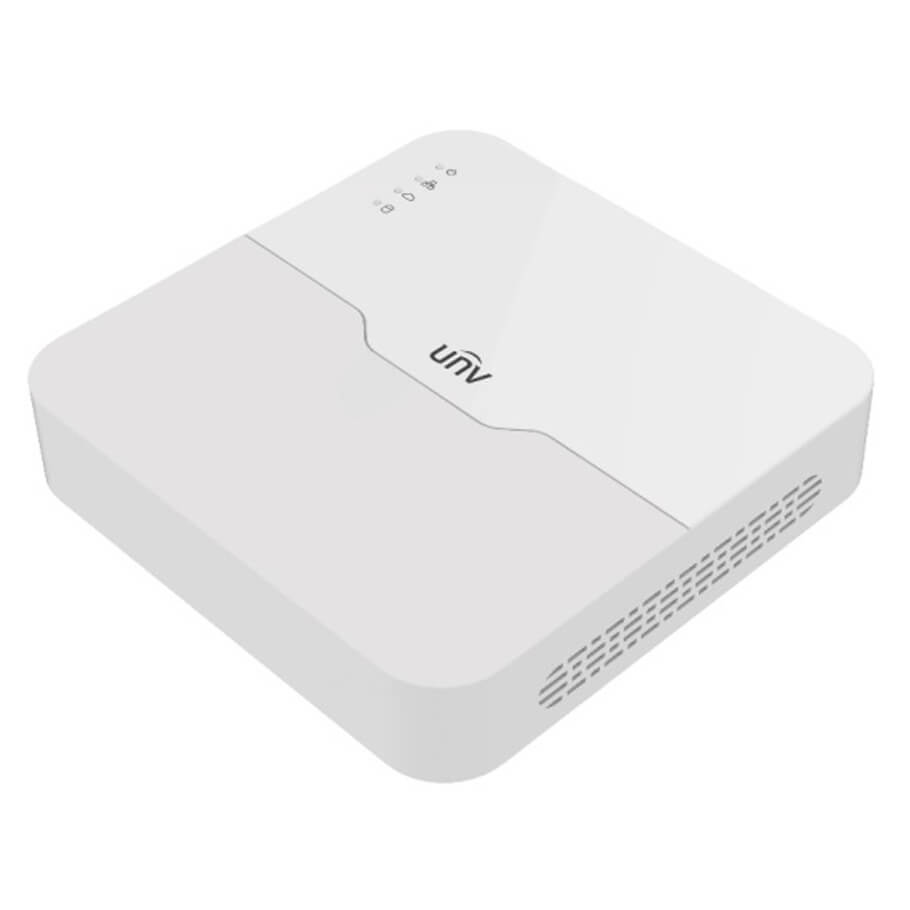

Đầu ghi hình camera IP 8 kênh UNV NVR301-08LS2
- Hỗ trợ các chuẩn nén video: Ultra 265/H.265/H.264.
- 8 cổng đầu vào.
- Hỗ trợ các camera chủ đạo tuân thủ chuẩn ONVIF (Profile S, Profile G, Profile T) và giao thức RTSP.
- Tương thích với tín hiệu ngõ ra: 1 cổng HDMI, 1 cổng VGA.
- Ghi hình với độ phân giải lên đến 6MP.
- Hỗ trợ 1 ổ cứng SATA với dung lượng tối đa 6TB.
- Hỗ trợ nâng cấp qua đám mây.
Thông số kỹ thuật
| Model | NVR301-08LS2 |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Network | |
| Incoming Bandwidth | 50Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, 3.5mm |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 8-ch |
| Liveview display | 1/4/6/8/9 |
| Corridor Mode Screen | 3/4/5/7/9 |
| Snapshot | |
| FTP/Schedule/Event Snapshot |
1-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 6MP@20, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30,4 x 1080p@30, 8 x 960p@30,8 x 720p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection |
| VCA Search | Behavior Search |
| Smart Intrusion Prevention (SIP by Camera | 4-ch (supports channel 1-4; Alarm only, no image) |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| General | |
| Power Supply | 12V DC Power Consumption: ≤5 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 240mm × 46mm |
| Weight (without HDD) | ≤0.98kg |
- Bảo hành: 24 tháng.
