0916 287 068 Đầu ghi hình 16 kênh 5 in 1 KBVISION KX-DAi8816H3

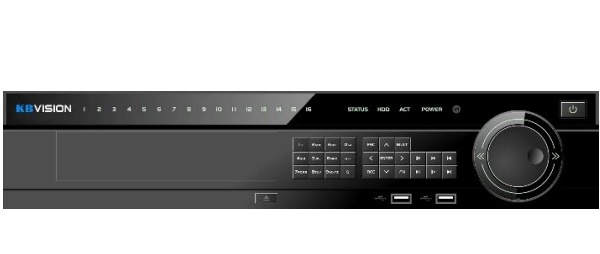

Đầu ghi hình 16 kênh 5 in 1 KBVISION KX-DAi8816H3
- Đầu ghi hình AI 16 kênh, hỗ trợ camera HDCVI/TVI/AHD/Analog/IP.
- Hỗ trợ chuẩn nén AI-Coding.
- Hỗ trợ tối đa 4 kênh bảo vệ vành đai (analog) hoặc 2 kênh nhận diện khuôn mặt (analog) hoặc 16 kênh SMD Plus (analog).
- Chuẩn nén hình ảnh: H265+/H265 với hai luồng dữ liệu độ phân giải 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps.
- Hỗ trợ ghi hình camera độ phân giải 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps).
- Hỗ trợ kết nối nhiều nhãn hiệu camera IP (16+8) hỗ trợ lên đến camera 6MP với chuẩn tương tích Onvif 21.06.
- Tương thích với tín hiệu ngõ ra: 1 VGA, 2 HDMI (HDMI1 chuẩn 4K), 1 TVout.
- Hỗ trợ 8 ổ cứng tối đa 16TB, 1 cổng eSATA để mở rộng lưu trữ.
- Cổng giao tiếp: 4 cổng USB 2.0, 2 cổng mạng RJ45 (1000Mbps), 1 cổng RS485, 1 cổng RS232.
- Cổng audio: 16 in/ 1 out (BNC extenal).
- 1 mic in, 1 mic out hỗ trợ đàm thoại hai chiều.
- Quản lý đồng thời 128 tài khoản kết nối.
- Cổng alarm: 16 in/ 6 out.
- Hỗ trợ truyền tải âm thanh, báo động qua cáp đồng trục.
- Thiết kế nút reset cứng trên mainboard.
Thông số kỹ thuật
| Perimeter Protection | |
| Perimeter Performance of AI by Camera (Number of Channels) | Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face image |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5 MP@25/30 fps; 4 MP@25/30 fps; 1080p@25/30 fps, 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 5 MP@25/30 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@25/30 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input | Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Encoding Capacity | Main stream: All channel 5M-N@(1 fps–10 fps); 4M-N@ (1 fps–15 fps); 1080p@(1 fps–15 fps); 1080N@(1 fps–25/30 fps); 720p@(1 fps–25/30 fps); 960H@(1 fps–25/30 fps); D1@(1 fps–25/30 fps); CIF@(1 fps–25/30 fps) Sub stream: D1@(1 fps–15 fps); CIF@(1 fps–15 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 2 HDMI, 1 VGA, 1 TV Resolution VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.06; CGI |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; video loss; tampering; local alarm |
| Anomaly Alarm | No disk; storage error; disk full; camera offline; IP conflict; MAC conflict |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email |
| Ports | |
| TV Output | Yes |
| Audio Input | 16-channel BNC (external) 16-channel BNC (coaxial audio) |
| Audio Output | 1-channel BNC |
| Two-way Talk | 1-channel BNC |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels |
| HDD Interface | 8 SATA ports,up to 16TB, the maximum HDD capacity varies with environment temperature |
| eSATA | 1 |
| RS-232 | 1 port, for PC Communication & Keyboard |
| RS-485 | 1 port, for PTZ control |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 1 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50±2% Hz |
| Power Consumption | |
| Net Weight | 6.72 kg (14.81 lb) |
| Product Dimensions | 2U, 439.9 mm × 463 mm × 94.9 mm |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH) |
| Installation | Rack or desktop |
- Thương hiệu KBVISION của Mỹ.
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
