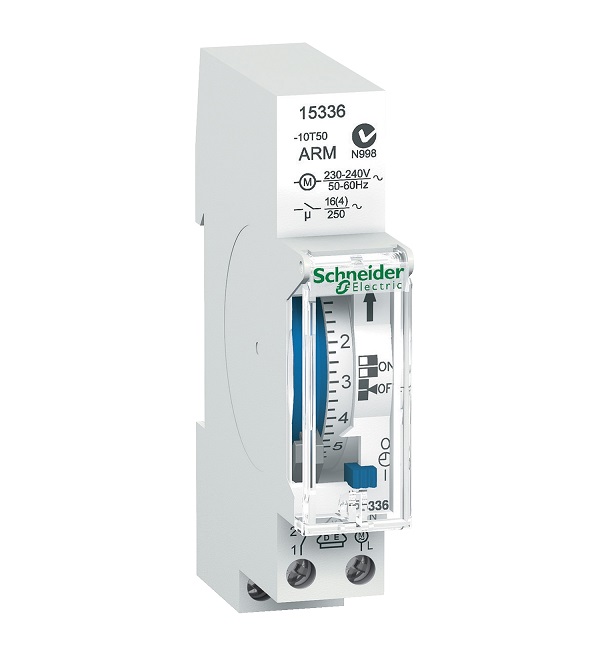

Công tắc hẹn giờ Schneider 15336
- Loại công tắc thời gian cơ 24 giờ.
- Số kênh: 1 kênh 16A.
- Pin dự trữ: 100 giờ.
- Công tắc hẹn giờ Schneider có thiết kế dạng module gắn lên Din rail, khả năng chịu tải lên đến 16A, có thể lắp vào các tủ điện âm tường.
Thông số kỹ thuật
| Main | |
| Range of product | Acti9 |
| Product name | Acti 9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Complementary | |
| Device application | Building |
| Load type | Parallel-corrected fluorescent tube 5 x 58 W 4.7 µF Parallel-corrected fluorescent tube 7 x 40 W 7 µF Parallel-corrected fluorescent tube 2 x 100 W 18 µF 230 V AC halogen lamp 1000 W 230 V AC incandescent lamp 1000 W Fluocompact lamp 700 VA Compact fluorescent lamp 150 W LED lamp < 2 W 30 W LED lamp > 2 W 300 W |
| Cycle duration | 24 h |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 15 min |
| Type of setting | Manual time changeover |
| Measurement accuracy | +/- 1 s/day 20 °C |
| Power consumption in w | 0.5 W |
| Maximum switching current | 16 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230...240 V AC at 50...60 Hz |
| Battery life | 10 year(s) |
| Backup time | 150 h time and program saving |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screw terminals |
| Width | 18 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Net weight | 0.101 kg |
| Environment | |
| Ambient air temperature for operation | -10~50 °C |
| Ip degree of protection | Terminals: IP20 B |
