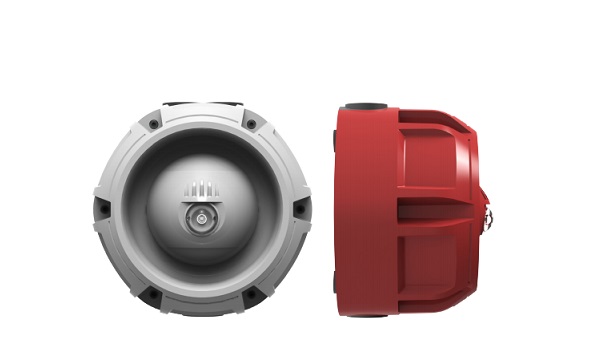

Còi đèn báo cháy thường 24V ZETA ZRPB/R
- The Raptor conventional sounder with beacon has a coverage pattern of W 2.9 - 8.5 and the sounder part has 22 selective tones. It has been designed to make an “electronics free” first fix and is available in red or white.
- Complies with EN54 Pt 3 Type B & EN54 Pt 23.
- 107dB +/- 3dB @ 1m sound output.
- 22 Tone patterns (site selectable).
- Suitable for surface mounting only.
- Housed in UL V0 flame retardant ABS.
- 3 x 20mm cable entries (2 top, 1 bottom).
- First fix, wire to back box technology.
- Flashing rate 0.5Hz.
Đặc tính kỹ thuật
| Model | ZRPB/R |
| Voltage | 17 - 30V DC |
| Current @ 24V DC | 70mA Max |
| Flash Colour | White |
| Flash Frequency | 0.5Hz |
| Body Colour | Red |
| Sounder Type | B |
| IP Rating | IP 65 |
| Operating Temperature | -10ºC to 55ºC |
| Sound Output @ 1m | 107dB +/- 3dB |
| Size mm (with back box) | 150 x 146 x 107.5 |
| Weight | 550g |
- Bảo hành: 12 tháng.
